MAINTENANCE
REPLACING THE CUTTING BLADE (See Figure 12)
WARNING
Always protect your hands by wearing heavy gloves and/or wrapping the
cutting edges with rags or other materials when performing any maintenance
on the blades. ALWAYS remove the battery when servicing or transporting
the mower.
• REMOVE BATTERY.
• While wearing leather padded gloves, wedge a block of wood between the
blade and the mower deck in order to prevent the blade from turning when
the bolt (1) is being removed.
• Using an adjustable wrench or 27 mm socket, loosen the bolt (1), spacer (3)
and remove the blade (2). Turn the bolt “COUNTERCLOCKWISE” to loosen
it and “CLOCKWISE” to tighten it.
• Remove the bolt (1), spacer (3) and the blade (2).
• To re-install the blade, position the blade with the cutting edges toward the
ground. Assemble the bolt as shown.Torque the blade bolt down clockwise
using a torque wrench (not provided) to ensure the bolt is properly tightened.
The recommended torque for the blade bolt is 24-27 lb-ft (33-37 Nm).
NOTE: Be sure to replace the parts in the exact order in which they were
removed. When installing the cutting blade, verify that it is installed with the
curved ends pointing toward the mower deck, and not toward the ground.

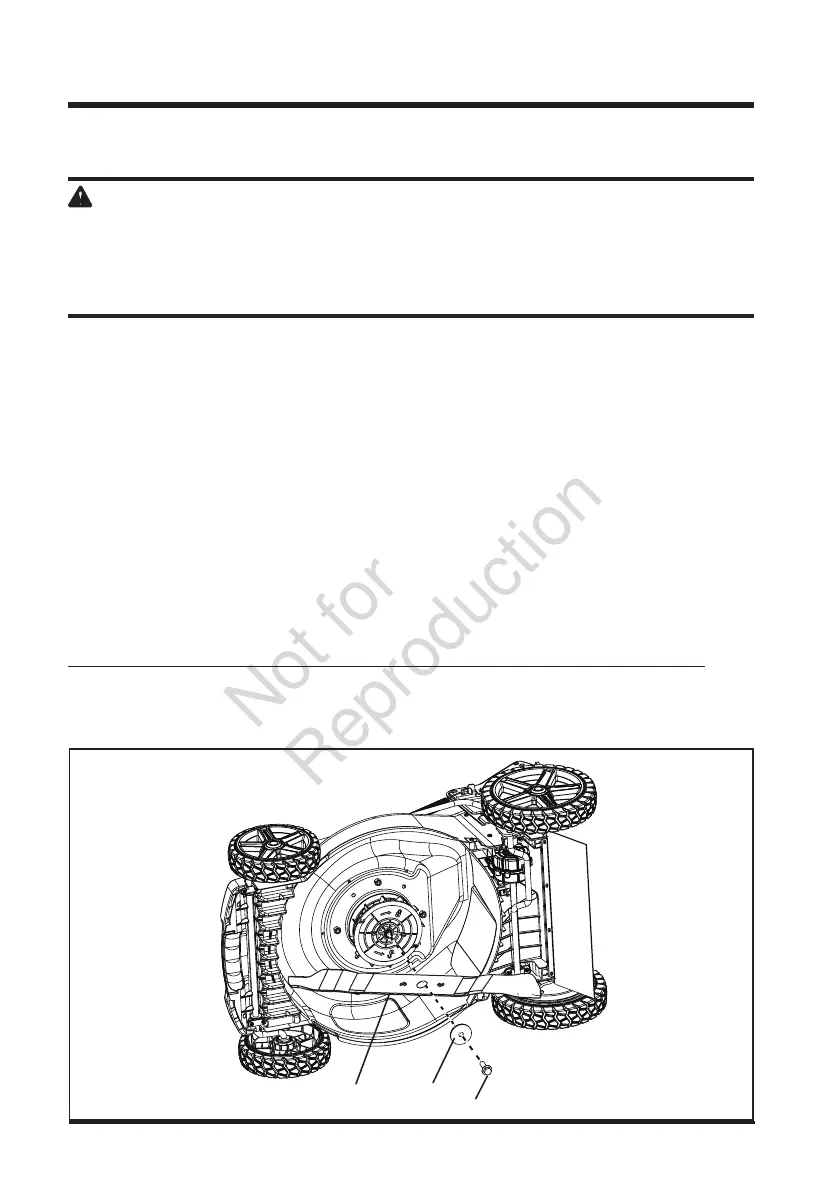

Fig. 12
(1)
(2)
(3)
