trol is held against handle. Release clutch control &
note cable. The cable should be slack with control
released.
If auger does not clutch properly with bail released
after above adjustment, it may be necessary to ad¬
just belt fingers inside belt drive housing. Remove
cover by removing #10 fasteners. Belt fingers are at
upper end near engine pulley. With bail drawn up to
handle,belt should clear lower finger by 1/16" If ad¬
justment is necessary, loosen belt finger screws and
slide up or down as required. Further adjustment is
achieved by bending fingers. Note : Complete clut¬
ching action: idler releases, brake is applied & belt
comes free of driver.
BELT REPLACEMENT: Should the belt need replac¬
ing, remove the belt guard, loosen the large 6" auger
pulley just enough to slip the old belt off and the
new belt on,then retighten after routing the belt over
the pulleys. NOTE: The auger pulley is loosened by
turning clockwise and tightened by turning counter¬
clockwise which is the opposite of normal direction.
Reinstall the belt cover. Check and readjust clutch
cable tension as needed after operating for a few
hours as the new belt may stretch or wear in. Use
Snapper part number 1-4637 belt.
MANUFACTURER’S 2 YEAR LIMITED WARRANTY
For two (2) Years from purchase date for the original purchaser’s residential, non-commercial use
[ninety (90) days from purchase date for the original purchaser’s commercial, rental, or other non-
residential use], SNAPPER POWER EQUIPMENT, through any SNAPPER dealer will replace, free of
charge, any part or parts found upon examination by the factory at McDonough, Georgia, to be
defective in material or workmanship or both.
All transportation cost incurred by the purchaser in submitting material to a SNAPPER dealer for
replacement under this warranty must be borne by the purchaser.
This warranty does not apply to engines and their components, as these items are warranted
separately by their manufacturers, and does not apply to batteries which are covered separately.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse,
improper lubrication, normal wear, or other cause beyond our control.
There is no other express warranty.
Implied warranties, including those of merchantability and fitness for a particular purpose, are
limited to two (2) years from purchase date for the original purchaser’s residential, non-commercial
use [ninety (90) days from purchase for the original purchaser’s commercial, rental or other non-
reSidential use], and to the extent permitted by law any and all implied warranties are excluded. This
is the exclusive remedy. Liabilities for consequential damages, under any and all warranties are
excluded.
Some states do not allow limitations on how long an implied warranty lasts,or do not allow the ex¬
clusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY
IMPAIR THE SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND
WARRANTY BY SNAPPER ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and
mail to: SNAPPER POWER EQUIPMENT, McDONOUGH, GEORGIA 30253

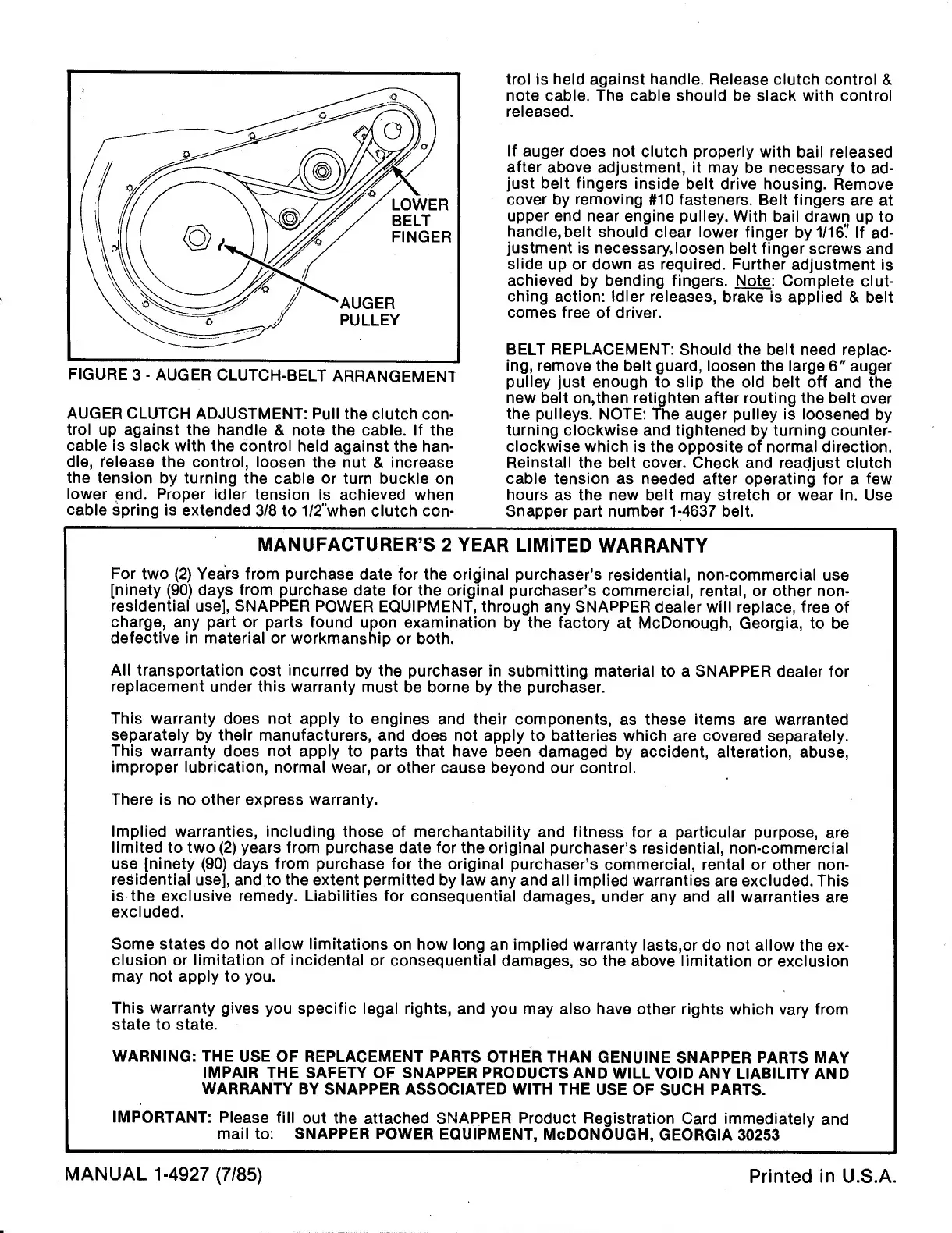

FIGURE 3 - AUGER CLUTCH-BELT ARRANGEMENT
AUGER CLUTCH ADJUSTMENT: Pull the clutch con¬
trol up against the handle & note the cable. If the
cable is slack with the control held against the han¬
dle, release the control, loosen the nut & increase
the tension by turning the cable or turn buckle on
lower end. Proper idler tension is achieved when
cable spring is extended 3/8 to 1/2"when clutch con¬
M AN UAL 1-4927 (7/85)
Printed in U.S.A.
