Snapper 522E - Assembling the Snowthrower; Tools Required; Assembly Procedure

8
TOOLS REQUIRED
• Knife
REMOVAL FROM CARTON
1. Locate and remove container of oil.
2. Locate all parts packed separately and remove from
carton.
Note: Set the fuel stabilizer aside until adding gasoline to
the fuel tank. We recommend that fuel stabilizer be
added to the fuel each time that gasoline is added to the
fuel tank.
3. Remove and discard the packing material from
around the snow thrower.
4. Cut down all four corners of the carton and lay the
panels flat.
5. Hold onto the lower handle and pull the snow thrower
off the carton.
CAUTION: DO NOT back over cables.
6. Remove the packing material from the handle assem-
bly.
ASSEMBLY PROCEDURE
Snowthrower
If your unit was not previously assembled, see Figure 1
and follow the steps below to assemble the unit:
1. Lift up folding handle to align it with lower handle and
tighten the t-knobs securely as shown in Figure 2.
Assembling
the Snowthrower

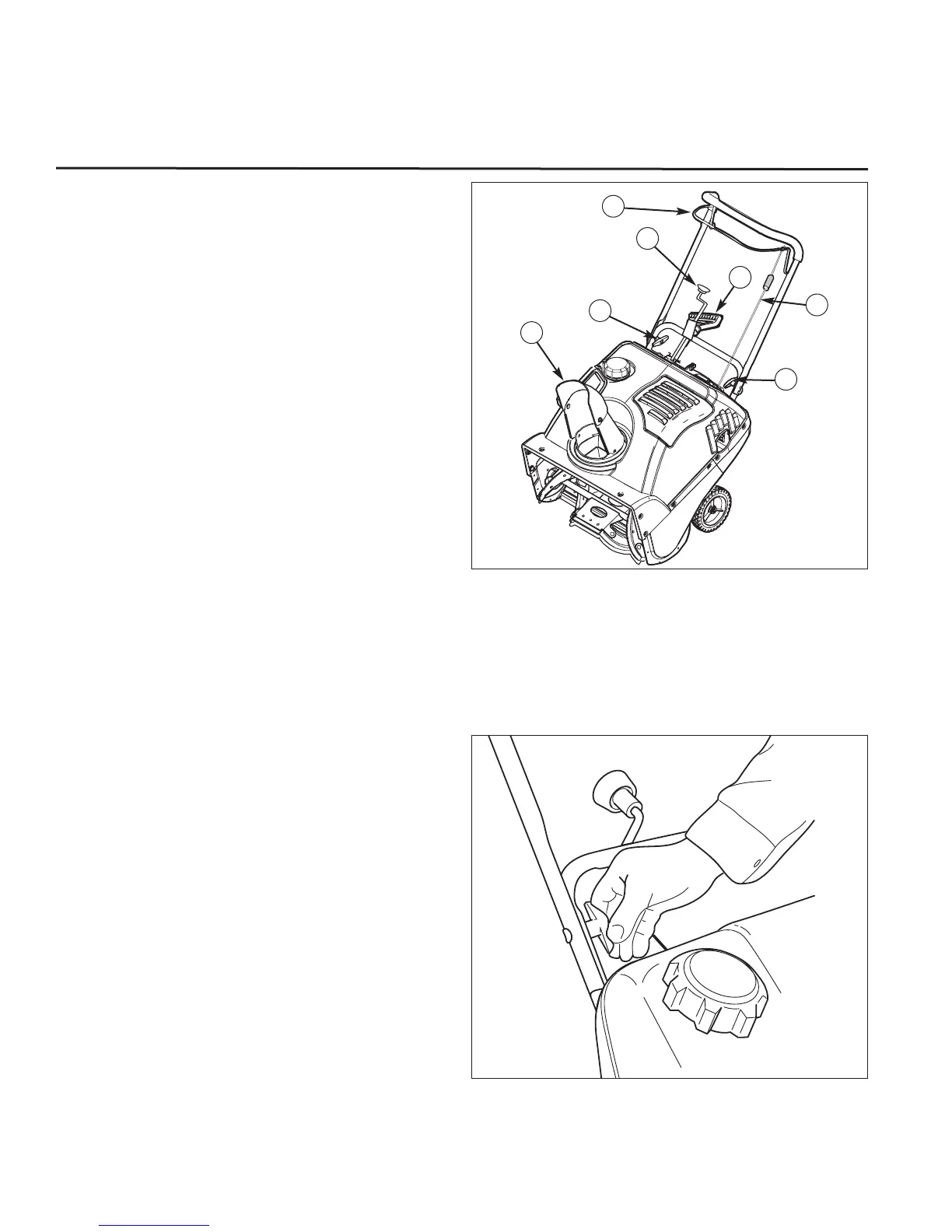

Figure 1. Snowthrower (Shown Assembled)
A. Auger Drive Lever
B. Auger Drive Cable
C. T-Knobs
D. Chute Deflector
E. Crank Assembly
F. Recoil Starter
B
Figure 2. Lift Handles and T-Knobs
A
C
F
C
D
E
