Snapper 5241 User Manual

INTRODUCTION
This manual covers the recommended operating instructions and routine service requirements for Snapper two-
stage snow throwers. On units with the four digit model numbers, the first digit indicates engine horsepower and
the next two digits indicate approximate blower housing width. With the five digit model, the first two digits in¬
dicate horsepower and next two, blower housing width. The last digit is reserved for major model change. Dif¬
ferences between models are pointed out wherever pertinent in the manual.
RIGHT SIDE
BLOWER
CLUTCH
HANDLE-
CONTROL PANEL
FORWARD-REVERSE
DIRECTIONAL CONTROL
FUEL TANK FILLER CAP*
(KEEP TIGHTENED)
DISCHARGE DEFLECTOR CAP
DISCHARGE CHUTE
IMPELLER HOUSING
DISCHARGE
CHUTE
CONTROL
TRACTION
CLUTCH
HANDLE
, f SPARK PLUG WIRE *
7 (REMOVE BEFORE SERVICING
SCRAPER BLADE
OR ADJUSTING UNIT)
THROTTLE CONTROL*
(ENGINE SPEED)
TIRES (INFLATE 12-15 PSI
WITHOUT CHAINS - 15 TO
20 PSI WITH CHAINS)
WHEEL RETAINING PINS
BLOWER HOUSING
COLLECTOR AUGERS
SKID SHOES
LEFT SIDE
LOCATION VARIES for DIFFERENT ENGINE MODELS

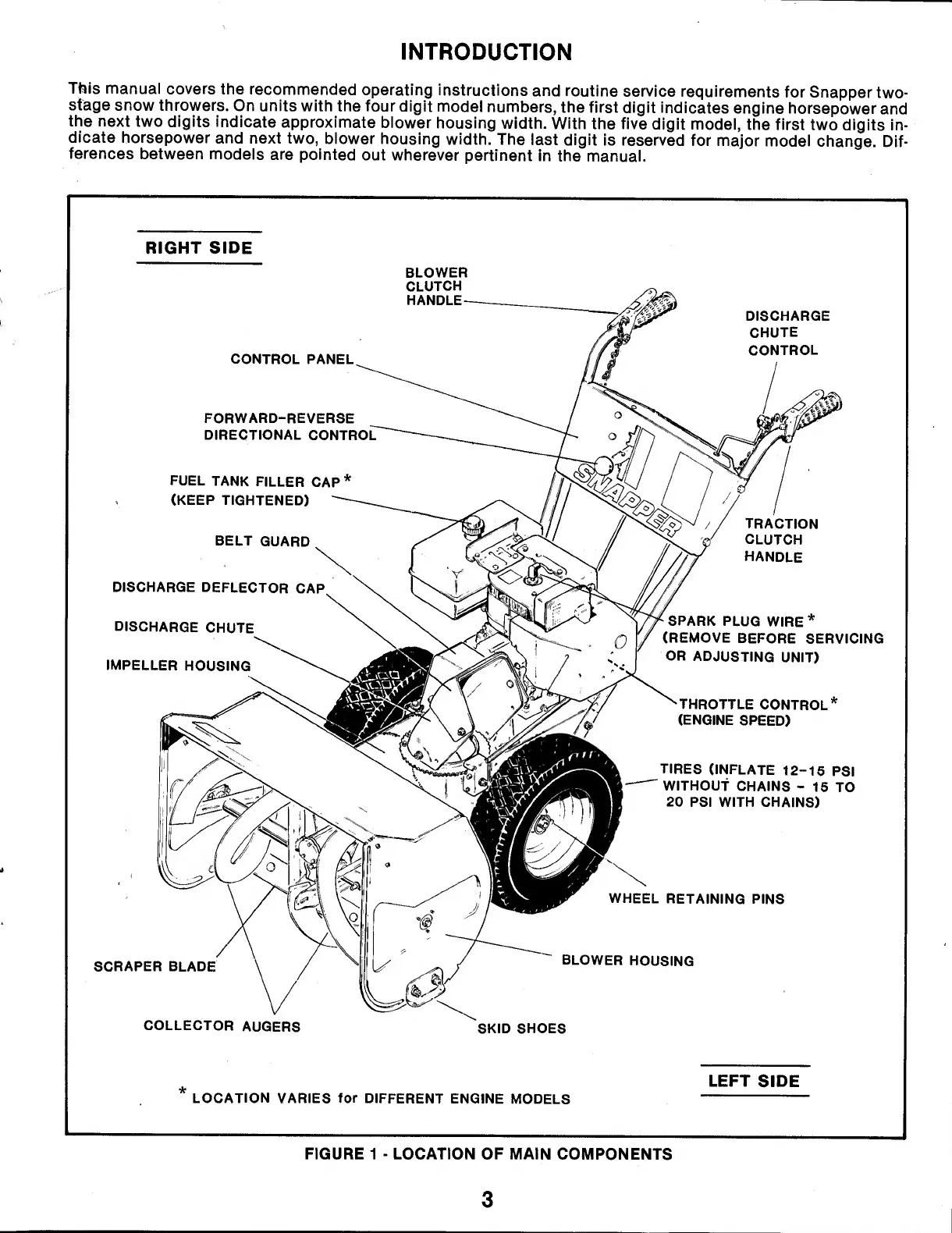

FIGURE 1 - LOCATION OF MAIN COMPONENTS
