Features and Controls
en es fr
IMPORTANT
The figures and illustrations in this manual are provided
for reference only and may differ from your specific model.
Contact your dealer if you have questions.

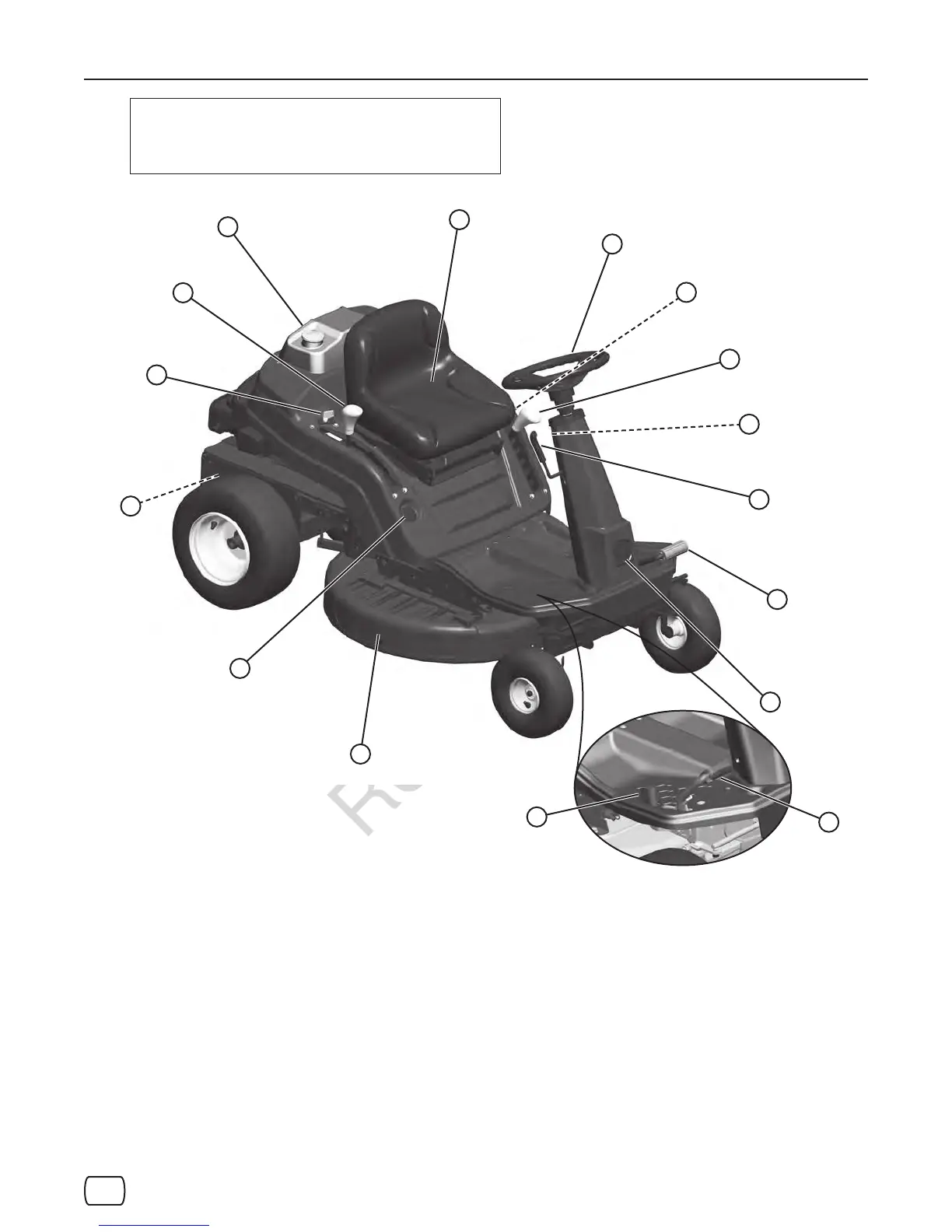

Features and Controls
A. Operator Seat
B. Steering Wheel - controls direction of unit
C. Engine Speed Control (hidden from view) -
controls engine speed
D. Cutting Height Adjust Lever - adjusts cutting
height
E. Parking Brake Latch (hidden from view) - locks
brake
F. Blade Control - engages mower blade
G. Clutch/Brake Pedal - engages clutch (manual
drive models) and brake
H. Headlight (not shown; select models)
I. Mulching Cover
J. Ignition Switch - starts engine
K. Transmission Release Lever (hidden from view;
hydro drive models) - releases transmission so
unit can roll freely
L. Reverse Mowing Switch - temporarily allows
mower blade to operate with transmission in
reverse.
M. Transmission Shift Lever (manual drive models)
- selects transmission speed and direction
N. Fuel Tank
O. Forward Ground Speed Pedal (hydro drive
models) - controls forward ground speed
P. Reverse Ground Speed Pedal (hydro drive
models) - controls reverse ground speed
I
C
J
K
M
N
A
F
H
G
L
B
D
E
O
P
