Snapper LT120G30DB User Manual

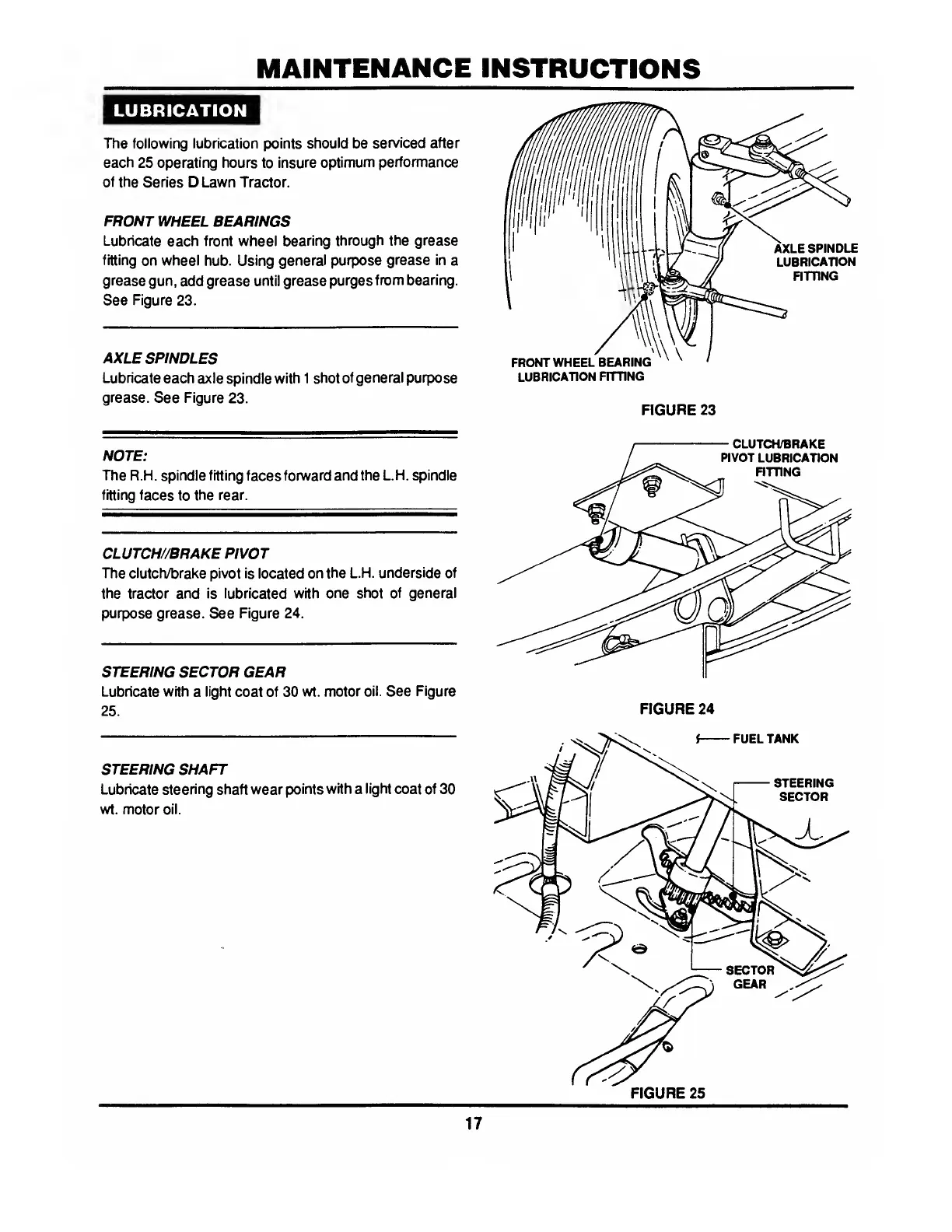

MAINTENANCE INSTRUCTIONS
LUBRICATION
The following lubrication points should be serviced after
each 25 operating hours to insure optimum performance
of the Series D Lawn Tractor.
FRONT WHEEL BEARINGS
Lubricate each front wheel bearing through the grease
fitting on wheel hub. Using general purpose grease in a
grease gun, add grease until grease purges from bearing.
See Figure 23.
AXLE SPINDLES
Lubricate each axle spindle with 1 shot of general purpose
grease. See Figure 23.
NOTE:
The R.H. spindle fitting faces forward and the L.H. spindle
fitting faces to the rear.
CLUTCH//BRAKE PIVOT
The clutch/brake pivot is located on the L.H. underside of
the tractor and is lubricated with one shot of general
purpose grease. See Figure 24.
STEERING SECTOR GEAR
Lubricate with a light coat of 30 wt. motor oil. See Figure
25.
LUBRICATION FITTING
FIGURE 23
FIGURE 24
17
