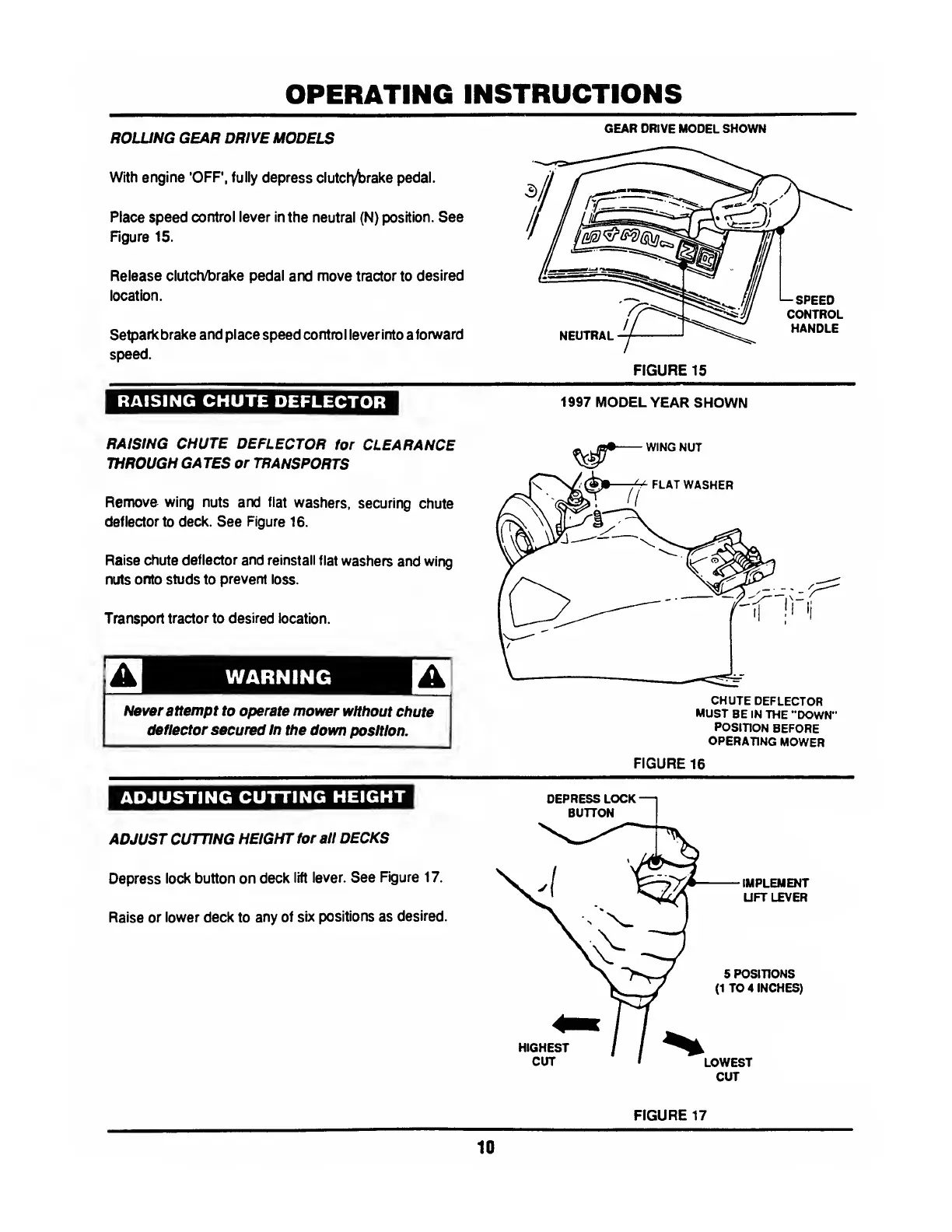

OPERATING INSTRUCTIONS
ROLLING GEAR DRIVE MODELS
With engine 'OFF', fully depress clutclybrake pedal.
Place speed control lever in the neutral (N) position. See
Figure 15.
Release clutch/brake pedal and move tractor to desired
location.
Setparkbrake and place speed control lever into a forward
speed.
GEAR DRIVE MODEL SHOWN
FIGURE 15
1997 MODEL YEAR SHOWN RAISING CHUTE DEFLECTOR
RAISING CHUTE DEFLECTOR for CLEARANCE
THROUGH GATES or TRANSPORTS
Remove wing nuts and flat washers, securing chute
deflector to deck. See Figure 16.
Raise chute deflector and reinstall flat washers and wing
nuts onto studs to prevent loss.
Transport tractor to desired location.
WARNING
Never attempt to operate mower without chute
deflector secured In the down position.
POSITION BEFORE
OPERATING MOWER
FIGURE 16
ADJUSTING CUTTING HEIGHT
ADJUST CUTTING HEIGHT for all DECKS
Depress lock button on deck lift lever. See Figure 17.
Raise or lower deck to any of six positions as desired.
FIGURE 17
