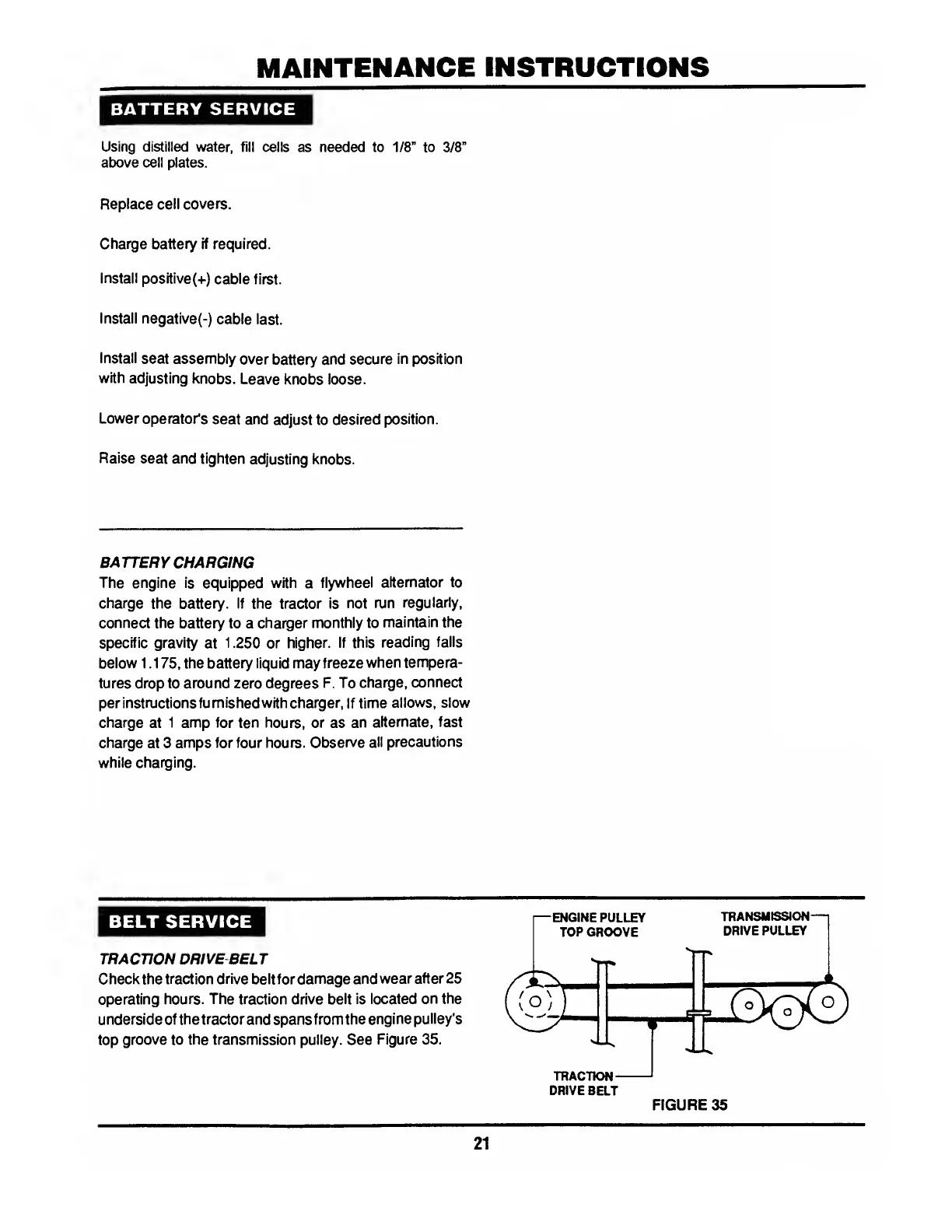

MAINTENANCE INSTRUCTIONS
BATTERY SERVICE
Using distilled water, fill cells as needed to 1/8” to 3/8”
above cell plates.
Replace cell covers.
Charge battery if required.
Install positive(+) cable first.
Install negative(-) cable last.
Install seat assembly over battery and secure in position
with adjusting knobs. Leave knobs loose.
Lower operator's seat and adjust to desired position.
Raise seat and tighten adjusting knobs.
BATTERY CHARGING
The engine is equipped with a flywheel alternator to
charge the battery. If the tractor is not run regularly,
connect the battery to a charger monthly to maintain the
specific gravity at 1.250 or higher. If this reading falls
below 1.175, the battery liquid may freeze when tempera¬
tures drop to around zero degrees F. To charge, connect
perinstructionsfumishedwithcharger, if time allows, slow
charge at 1 amp for ten hours, or as an alternate, fast
charge at 3 amps for four hours. Observe all precautions
while charging.
BELT SERVICE
TRACTION DRIVE BELT
Check the traction drive belt for damage and wear after 25
operating hours. The traction drive belt is located on the
underside of the tractor and spans from the engine pulley's
top groove to the transmission pulley. See Figure 35.
FIGURE 35
21
