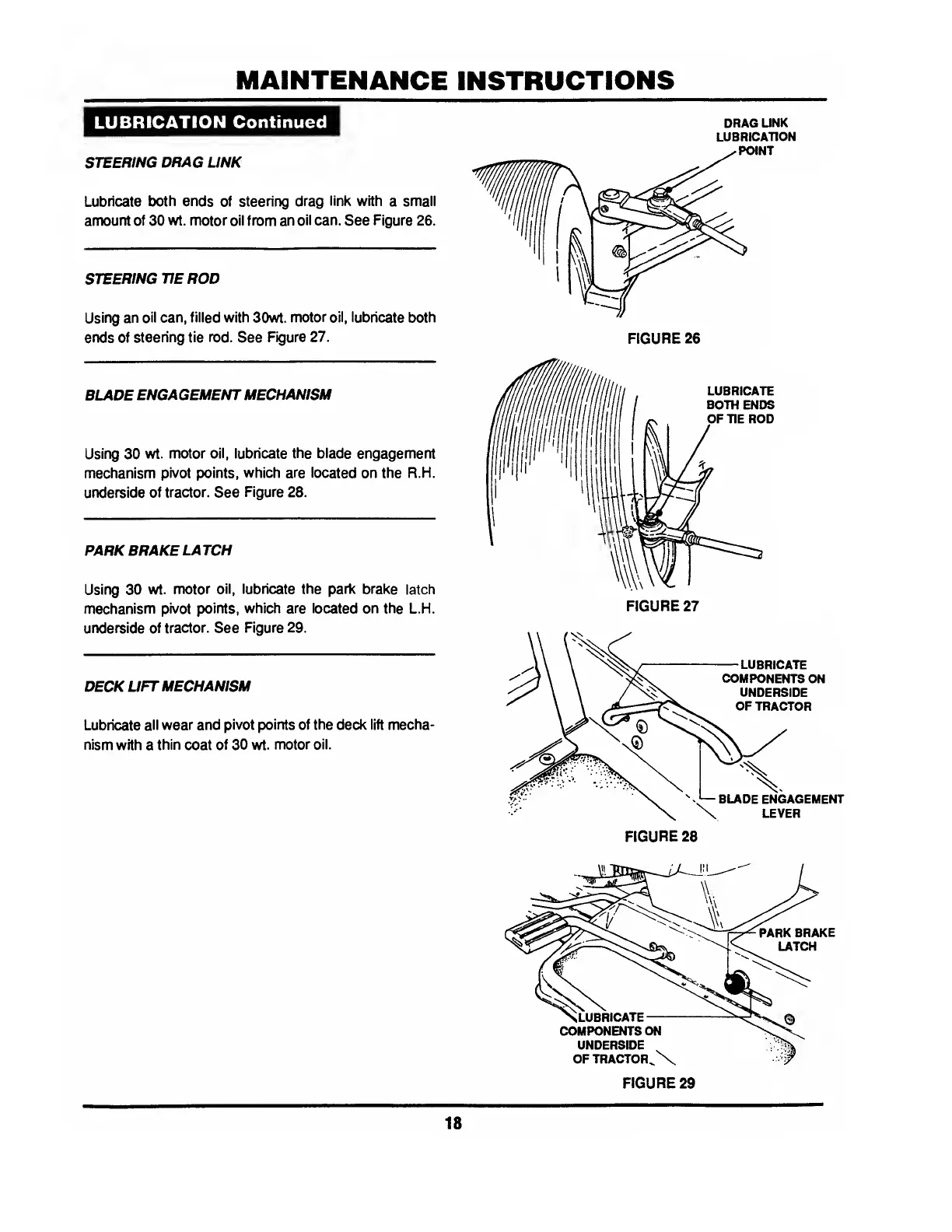

MAINTENANCE INSTRUCTIONS
LUBRICATION Continued
STEERING DRAG LINK
Lubricate both ends of steering drag link with a small
amount of 30 wt. motor oil from an oil can. See Figure 26.
STEERING TIE ROD
Using an oil can, filled with 30wt. motor oil, lubricate both
ends of steering tie rod. See Figure 27.
BLADE ENGAGEMENT MECHANISM
Using 30 wt. motor oil, lubricate the blade engagement
mechanism pivot points, which are located on the R.H.
underside of tractor. See Figure 28.
PARK BRAKE LATCH
Using 30 wt. motor oil, lubricate the park brake latch
mechanism pivot points, which are located on the L.H.
underside of tractor. See Figure 29.
DECK LIFT MECHANISM
Lubricate all wear and pivot points of the deck lift mecha¬
nism with a thin coat of 30 wt. motor oil.
DRAG LINK
LUBRICATION
/POINT
FIGURE 27
FIGURE 28
FIGURE 29
18
