MAINTENANCE INSTRUCTIONS
BRAKE ADJUSTMENT
HYDRO DRIVE MODELS
To be properly adjusted, the brake should stop the tractor
in approximately 6 feet from top speed when the clutch/
brake pedal is fully depressed.
Adjust brake when necessary as follows:
Turn engine "OFF*.
Raise hood, remove spark plug wire from spark plug and
secure wire away from plug.
Locate brake adjustment on right side of tractor in front of
and behind right rear wheel. See Figure 74.
Turn nut clockwise to increase braking action or, coun¬
terclockwise to decrease braking action. See Figure 74.
Replace spark plug wire, start engine and test brake.
Continue adjustment as described above until proper
adjustment is achieved.
GEAR DRIVE MODELS
To be properly adjusted, the brake should stop the tractor
in approximately 6 feet from top speed when the clutch/
brake pedal is fully depressed.
Adjust brake when necessary as follows:
Turn engine "OFP.
Raise hood, remove spark plug wire from spark plug and
secure wire away from plug.
Locate brake adjustment on right side of tractor in back of
and behind right rear wheel. See Figure 75.
Turn nut clockwise to increase braking action or, coun¬
terclockwise to decrease braking action. See Figure 75.
Replace spark plug wire, start engine and test brake.
Continue adjustment as described above until proper
adjustment is achieved.

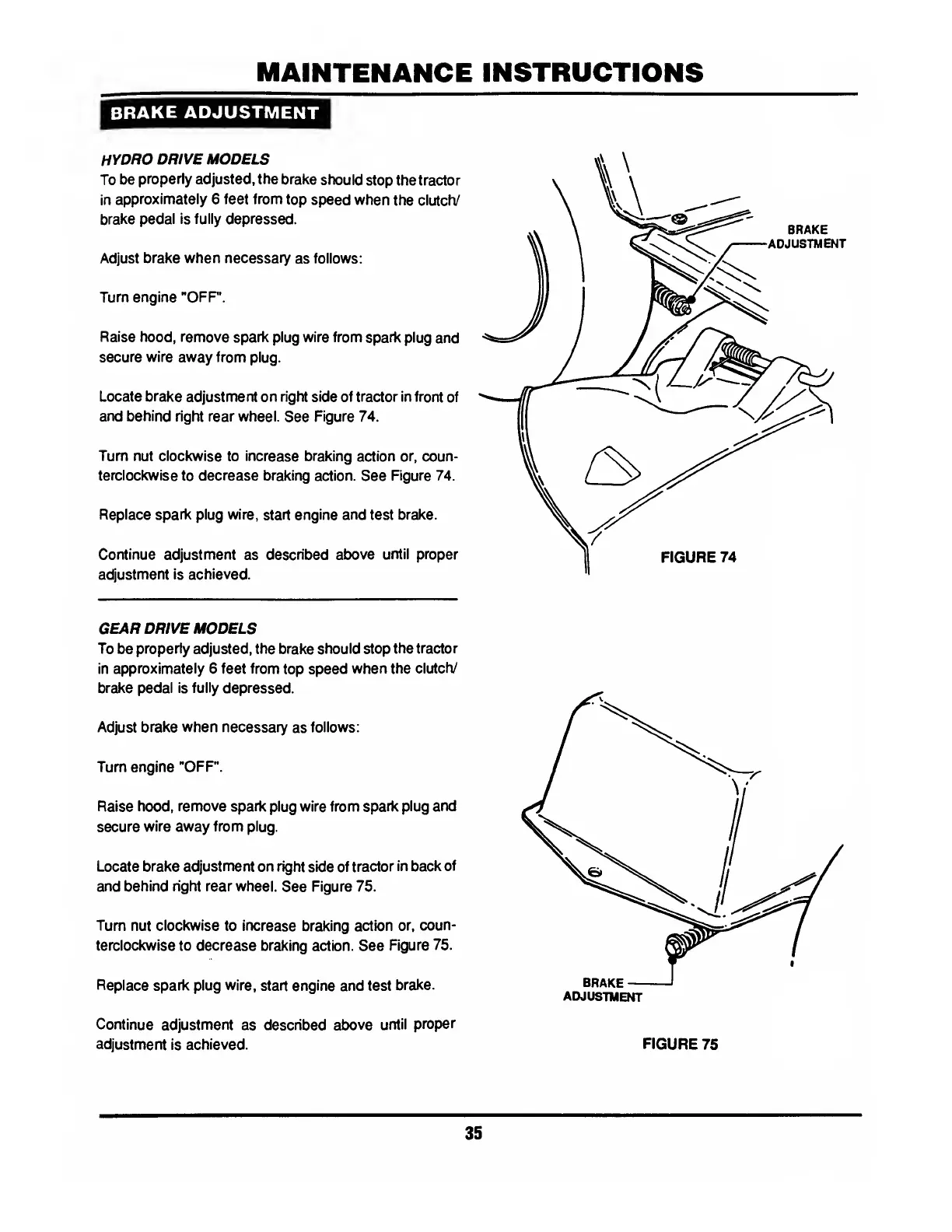

FIGURE 75
35
