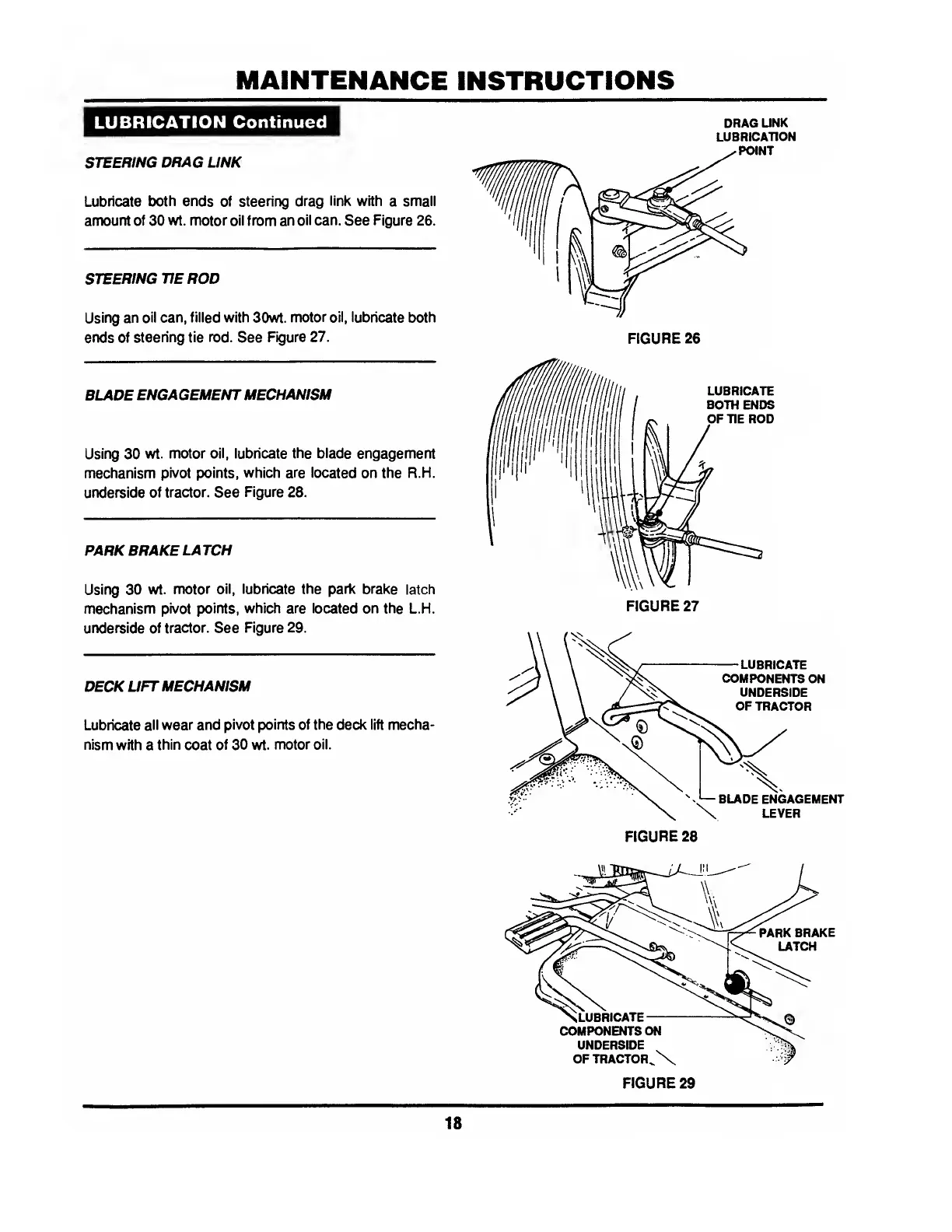

MAINTENANCE
INSTRUCTIONS
LUBRICATION
Continued
STEERING
DRAG
LINK
Lubricate
both
ends
of
steering
drag
link
with
a
small
amount
of
30
wt.
motor
oil
from
an
oil
can.
See
Figure
26.
STEERING
TIE
ROD
Using
an
oil
can,
filled
with
30wt.
motor
oil,
lubricate
both
ends
of
steering
tie
rod.
See
Figure
27.
BLADE
ENGAGEMENT
MECHANISM
Using
30
wt.
motor
oil,
lubricate
the
blade
engagement
mechanism
pivot
points,
which
are
located
on
the
R.H.
underside
of
tractor.
See
Figure
28.
PARK
BRAKE
LATCH
Using
30
wt.
motor
oil,
lubricate
the
park
brake
latch
mechanism
pivot
points,
which
are
located
on
the
L.H.
underside
of
tractor.
See
Figure
29.
DECK
LIFT
MECHANISM
Lubricate
all
wear
and
pivot
points
of
the
deck
lift
mecha¬
nism
with
a
thin
coat
of
30
wt.
motor
oil.
DRAG
LINK
LUBRICATION
/POINT
FIGURE
27
FIGURE
28
FIGURE
29
18
