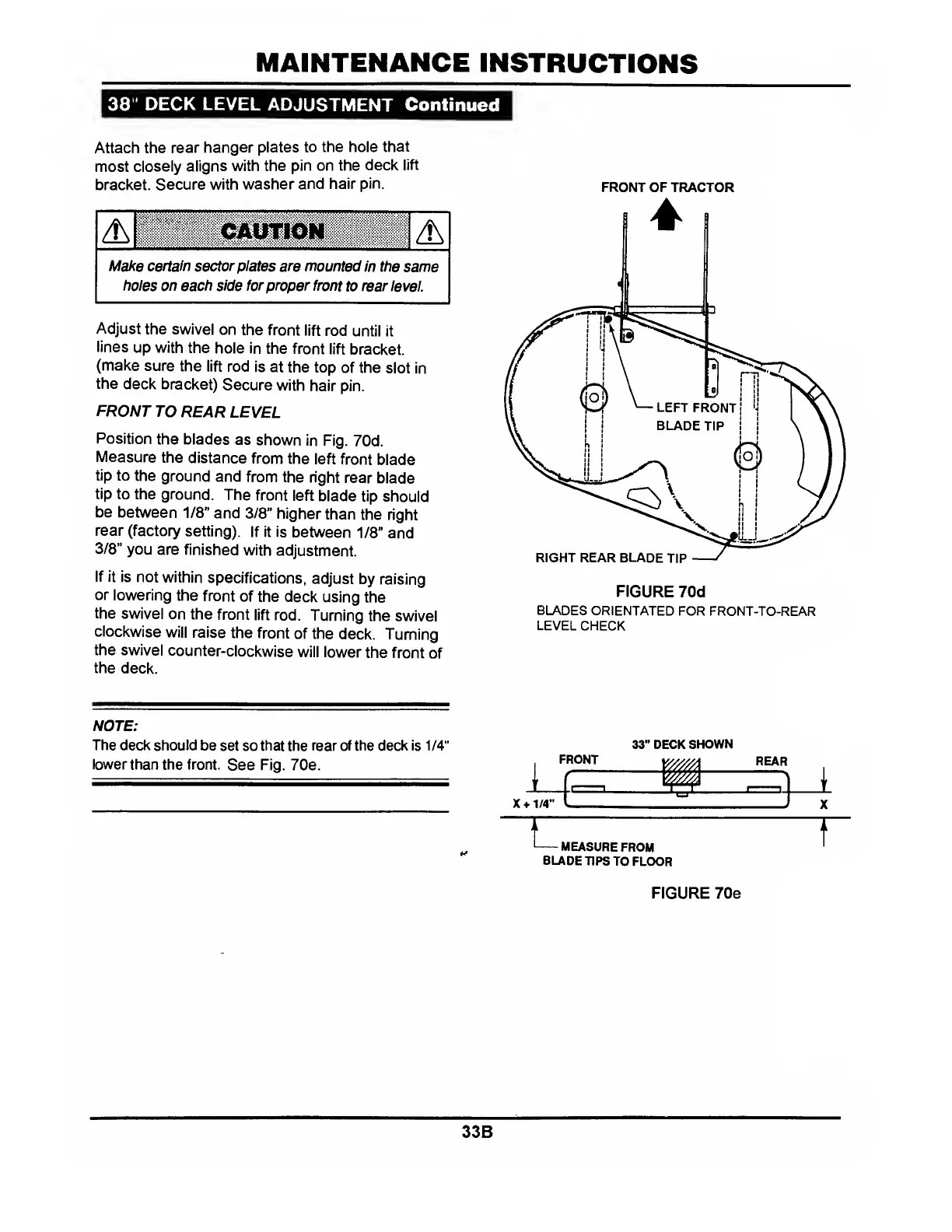

MAINTENANCE
INSTRUCTIONS
38"
DECK
LEVEL
ADJUSTMENT
Continued
Attach
the
rear
hanger
plates
to
the
hole
that
most
closely
aligns
with
the
pin
on
the
deck
lift
bracket.
Secure
with
washer
and
hair
pin.
CAUTION
Make
certain
sector
plates
are
mounted
in
the
same
holes
on
each
side
for
proper
front
to
rear
level.
Adjust
the
swivel
on
the
front
lift
rod
until
it
lines
up
with
the
hole
in
the
front
lift
bracket,
(make
sure
the
lift
rod
is
at
the
top
of
the
slot
in
the
deck
bracket)
Secure
with
hair
pin.
FRONT
TO
REAR
LEVEL
Position
the
blades
as
shown
in
Fig.
70d.
Measure
the
distance
from
the
left
front
blade
tip
to
the
ground
and
from
the
right
rear
blade
tip
to
the
ground.
The
front
left
blade
tip
should
be
between
1/8”
and
3/8”
higher
than
the
right
rear
(factory
setting).
If
it
is
between
1/8”
and
3/8”
you
are
finished
with
adjustment.
If
it
is
not
within
specifications,
adjust
by
raising
or
lowering
the
front
of
the
deck
using
the
the
swivel
on
the
front
lift
rod.
Turning
the
swivel
clockwise
will
raise
the
front
of
the
deck.
Turning
the
swivel
counter-clockwise
will
lower
the
front
of
the
deck.
FRONT
OF
TRACTOR
FIGURE
70d
BLADES
ORIENTATED
FOR
FRONT-TO-REAR
LEVEL
CHECK
NOTE:
The
deck
should
be
set
so
that
the
rear
of
the
deck
is
1/4"
lower
than
the
front.
See
Fig.
70e.
33"
DECK
SHOWN
FIGURE
70e
