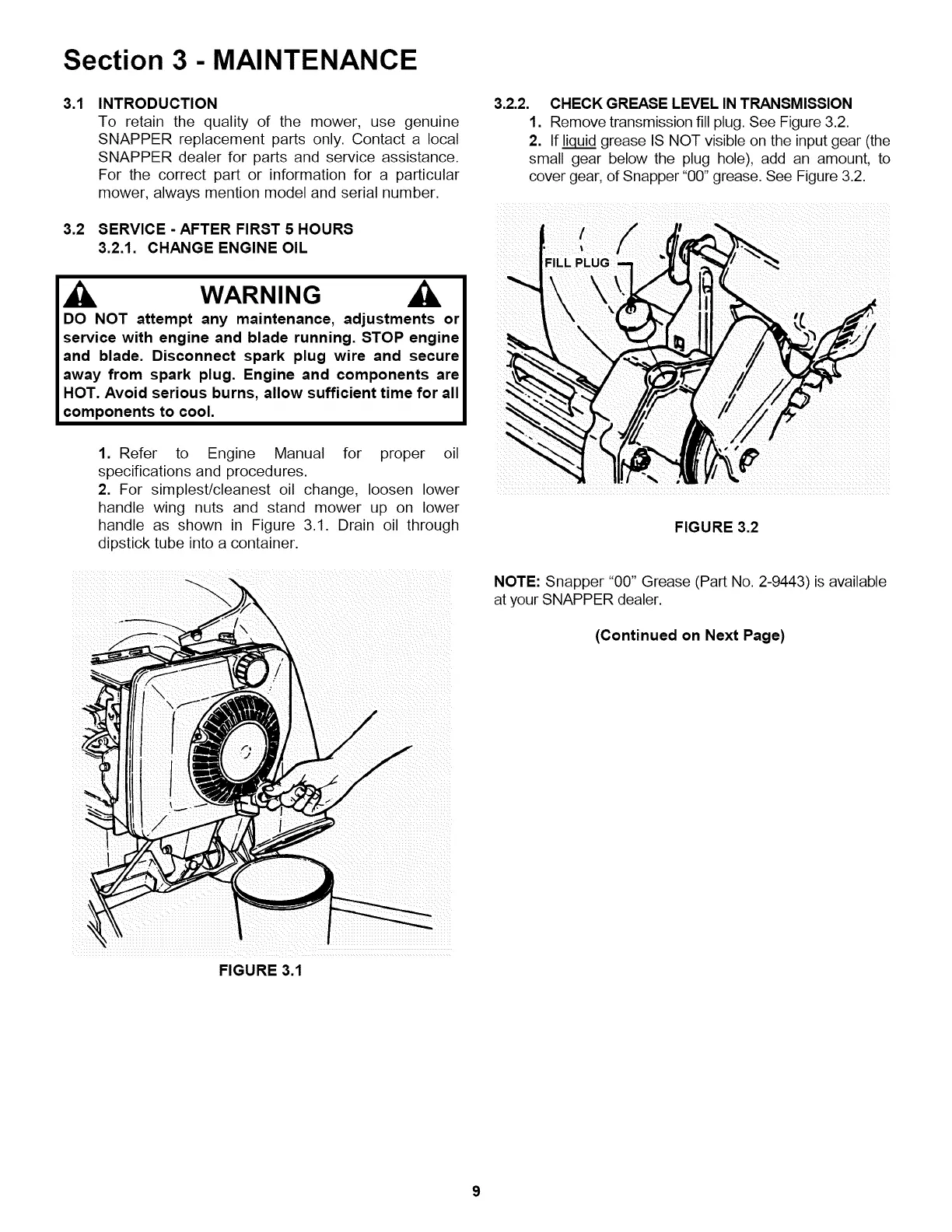

Section 3 - MAINTENANCE
3.1
3.2
INTRODUCTION
To retain the quality of the mower, use genuine
SNAPPER replacement parts only. Contact a local
SNAPPER dealer for parts and service assistance.
For the correct part or information for a particular
mower, always mention model and serial number.
SERVICE - AFTER FIRST 5 HOURS
3.2.1. CHANGE ENGINE OIL
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for all
components to cool.
3.2.2. CHECK GREASE LEVEL IN TRANSMISSION
1. Remove transmission fill plug. See Figure 3.2.
2. Ifliquid grease IS NOT visible on the input gear (the
small gear below the plug hole), add an amount, to
cover gear, of Snapper "00" grease. See Figure 3.2.
1. Refer to Engine Manual for proper oil
specifications and procedures.
2. For simplest/cleanest oil change, loosen lower ................................................................
handle wing nuts and stand mower up on lower
handle as shown in Figure 3.1. Drain oil through FIGURE 3.2
dipstick tube into a container.
NOTE: Snapper "00" Grease (Part No. 2-9443) is available
at your SNAPPER dealer.
(Continued on Next Page)
FIGURE 3.1
