Attaching the Side Mounted Discharge Deflector
WARNING: To prevent the engine from
starting, disconnect the wire from the
spark plug.
For shipping purposes, the side deflector was not installed.
Locate the side deflector and install as follows.
1. Raise the mulcher cover (A, Figure 8).
2. Slide the two tabs (B) on the side deflector (C) under
the pivot pin.
3. Lower the side deflector. Make sure the locking tab (A,
Figure 9) goes through the slot in the side deflector.
4. Lower the mulcher cover (A, Figure 10).
5. Attach the wire to the spark plug.
Preparation

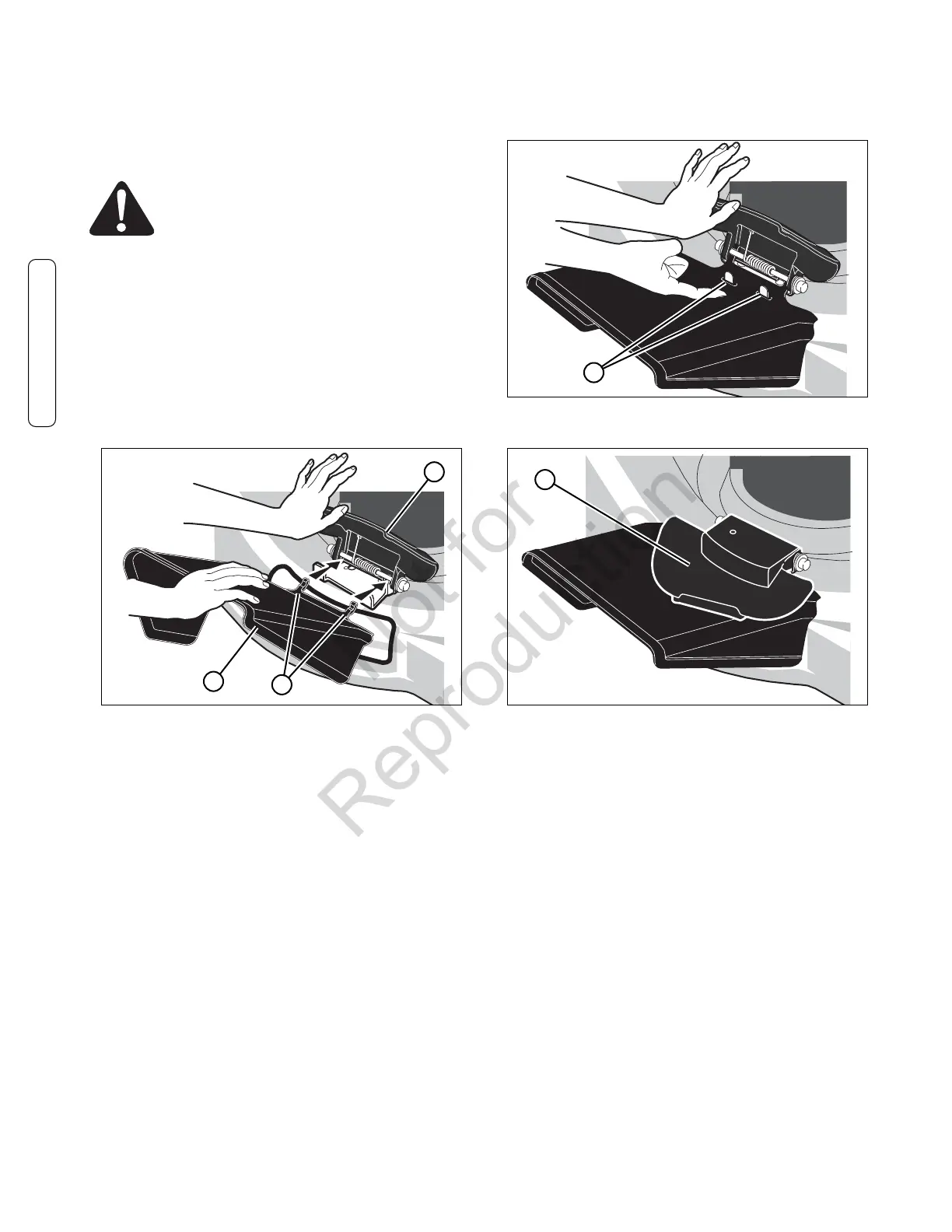

Figure 8: Installing the side discharge deflector
