Assembling the Grass Bag
Note: On some models, the side mounted discharge deflector
is temporarily attached (for shipping purposes) to the rear of
the mower. Before assembly of the grass bag, remove the
side mounted discharge deflector.

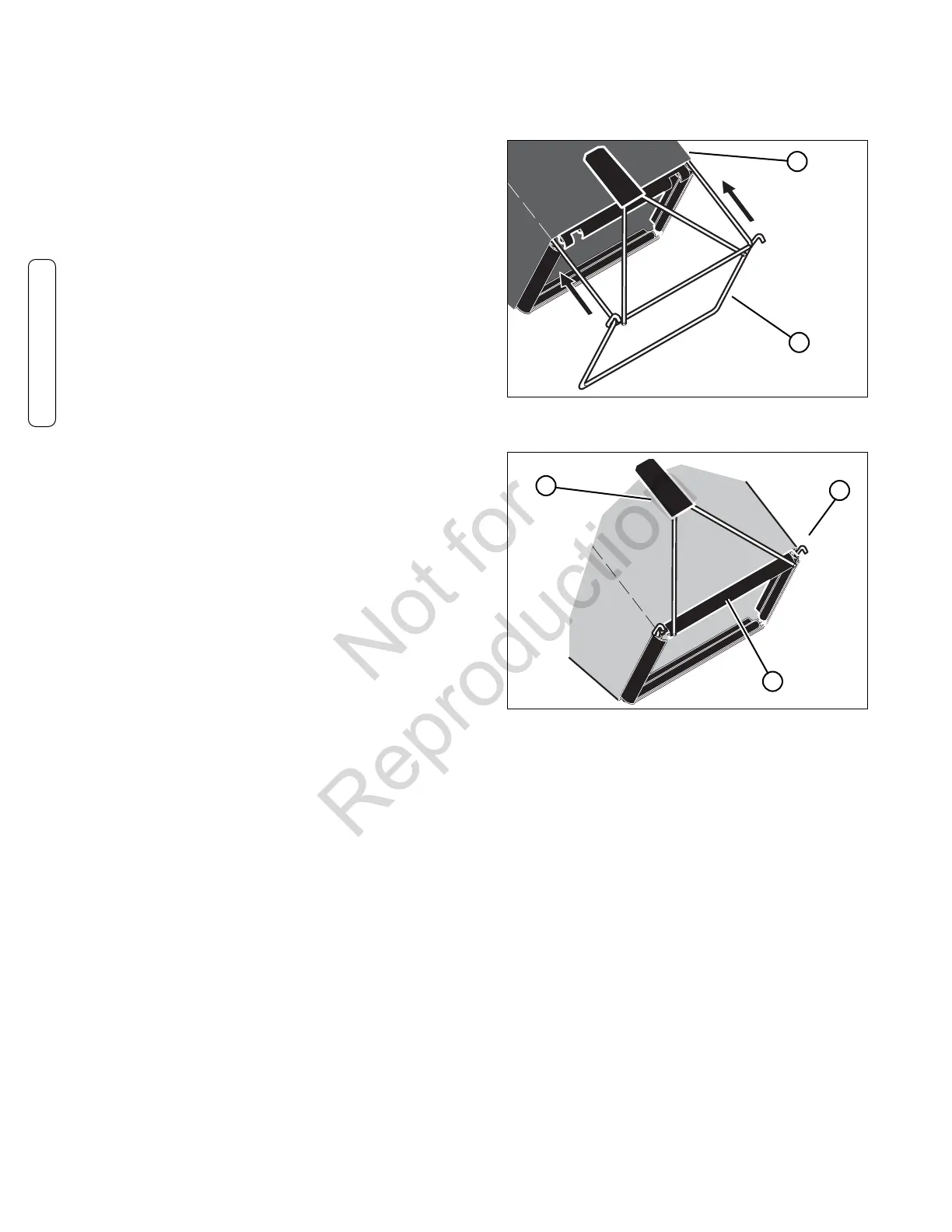

1. Slide the frame assembly (A, Figure 5) into the grass
bag (B).
2. Make sure the handle (A, Figure 6) is on the outside of
the grass bag.
3. First, attach the clips (B, Figure 6) to the side of the
frame assembly (C). Next, attach the clips to the top and
bottom of the frame assembly.
Preparation
B
Figure 5: Installing the frame assembly
A
B
Figure 6: Installing the bag clips
A
C
Preparation (Continued)
