ReguiapMaJflteflaflce
ParkingBrakeAdjustment
1. Disengagethe PTO,stop the engine,engagethe parking
brake,and removethe key from the ignition.
2. Raisethe seat plateto gain accessto the parking brake
components.
3. Measurethe distance from the top of the brake spring
rod (C, Figure 34) to the top of the lock nut (D) on both
sides of the unit. The measurementshould be .50"
(1,27 cm). If not, adjust the Iocknut to achievethe
measurementof .50" (1,27 cm)
4. Measurethe distance betweenthe bottom of the brake
shaftweldment (G) and the top of the set collar (F). The
measurementshould be .375" (0,95 cm). If not,
position the set collar until the measurementequals
.375" (0,95 cm).
if this dues not currectthe brakingprobJem,see yuur
Snapper Pru deaJer.

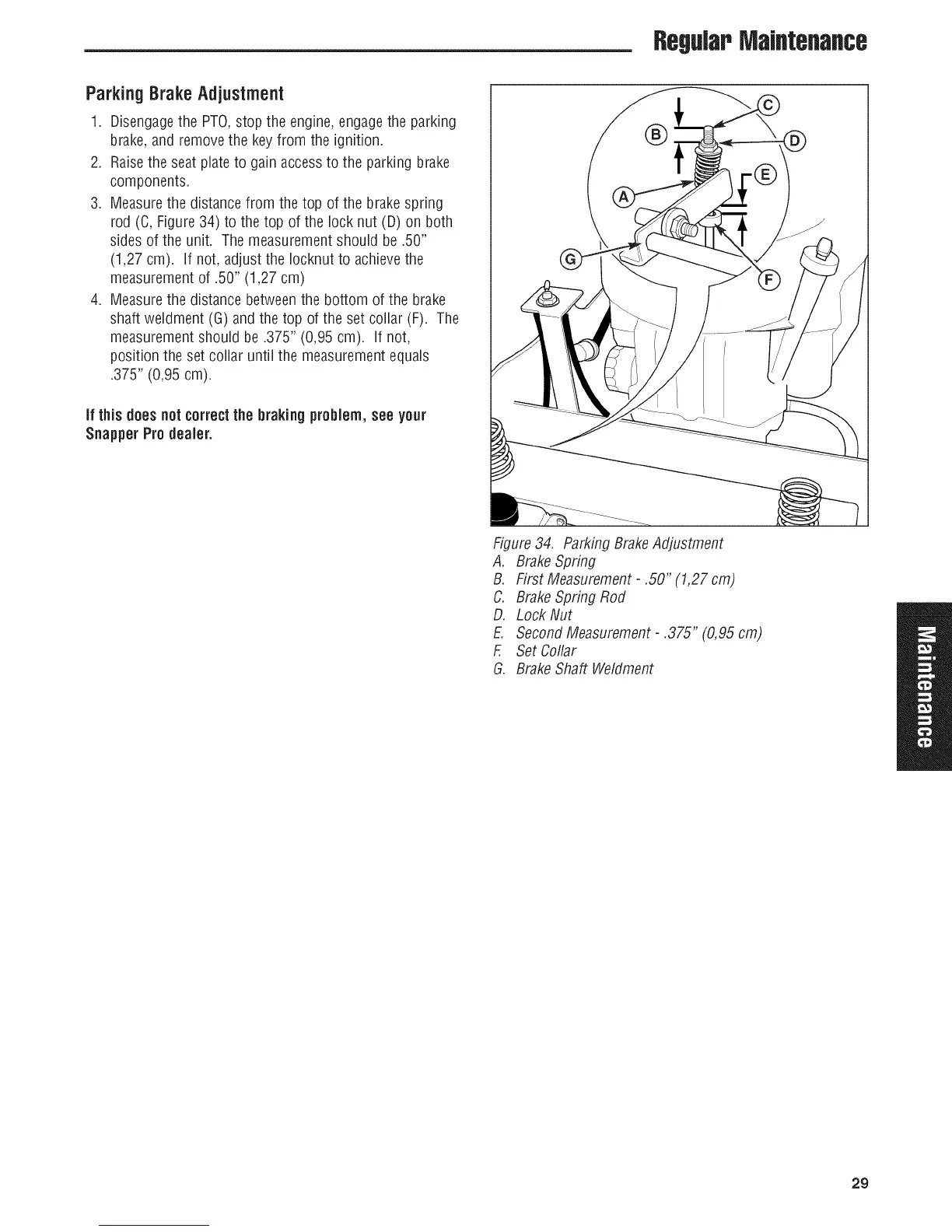

Figure34.
A.
B.
C.
D.
E.
F.
G.
ParkingBrakeAdjustment
BrakeSpring
First Measurement - .50" (1,27 cm)
BrakeSpring Rod
Lock Nut
SecondMeasurement- .375" (0,95 cm)
Set Collar
BrakeShaft Weldment
29
