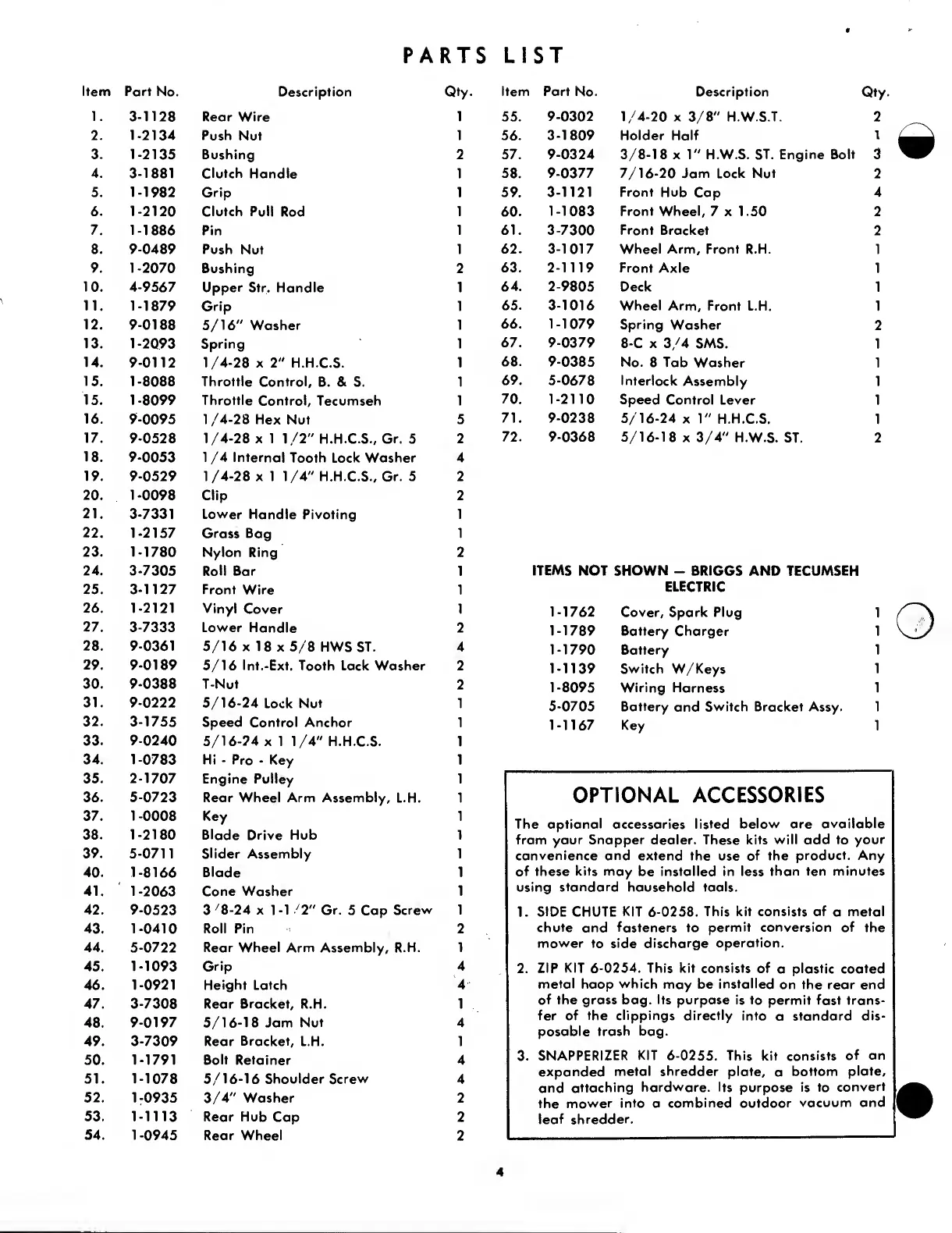

PARTS
LIST
Item Part No.
Description Qty.
Item Part No.
Description
Qty.
1.
3-1128
Rear Wire 1 55.
9-0302
1/4-20 x 3/8" H.W.S.T.
2
2. 1-2134
Push Nut
1
56.
3-1809 Holder Half
1
3.
1-2135
Bushing 2 57. 9-0324 3/8-18 x 1" H.W.S. ST. Engine Bolt 3
4.
3-1881 Clutch Handle 1 58.
9-0377 7/16-20 Jam Lock Nut
2
5.
1-1982
Grip
1
59. 3-1121 Front Hub Cap 4
6.
1-2120 Clutch Pull Rod
1
60.
1-1083 Front Wheel, 7 x 1.50 2
7.
1-1886
Pin
1 61.
3-7300
Front Bracket
2
8. 9-0489 Push Nut 1
62. 3-1017 Wheel Arm, Front R.H.
1
9.
1-2070 Bushing 2
63. 2-1119
Front Axle
1
10. 4-9567
Upper Str. Handle 1
64.
2-9805 Deck
1
11. 1-1879 Grip 1
65. 3-1016
Wheel Arm, Front L.H.
1
12 .
9-0188 5/16" Washer
1
66.
1-1079
Spring Washer
2
13.
1-2Q93
Spring 1
67.
9-0379
8-C x 3/4 SMS.
1
14.
9-0112
1/4-28 x 2" H.H.C.S.
1
68.
9-0385
No. 8 Tab Washer
1
15. 1-8088
Throttle Control, B. & S. 1
69.
5-0678 Interlock Assembly
1
15. 1 -8099
Throttle Control, Tecumseh 1
70.
1-2110
Speed Control Lever
1
16. 9-0095
1/4-28 Hex Nut
5
71.
9-0238
5/16-24 x 1" H.H.C.S.
1
17.
9-0528 1/4-28 x 1 1/2" H.H.C.S., Gr. 5 2
72. 9-0368
5/16-18 x 3/4" H.W.S. ST. 2
18.
9-0053 1/4 Internal Tooth Lock Washer 4
19. 9-0529 1/4-28 x 1 1/4" H.H.C.S., Gr. 5 2
20. 1 -0098 Clip 2
21.
3-7331 Lower Handle Pivoting 1
22.
1-2157
Grass Bag
1
23.
1-1780
Nylon Ring
2
24.
3-7305 Roll Bar
1
ITEMS NOT SHOWN - BRIGGS AND TECUMSEH
25. 3-1127
Front Wire
1
ELECTRIC
26.
1-2121
Vinyl Cover
1
1-1762 Cover, Spark Plug
1
27.
3-7333 Lower Handle
2
1-1789
Battery Charger
1
28. 9-0361
5/16 x 18 x 5/8 HWS ST.
4
1-1790
Battery
1
29. 9-0189
5/16 Int.-Ext. Tooth Lock Washer
2
1-1139
Switch W/Keys 1
30.
9-0388
T-Nut
2
1-8095
Wiring Harness 1
31.
9-0222 5/16-24 Lock Nut
1
5-0705
Battery and Switch Bracket Assy. 1
32.
3-1755
Speed Control Anchor
1
1-1167 Key
1
33.
9-0240 5/16-24 x 1 1/4" H.H.C.S.
1
34.
1-0783
Hi - Pro - Key
1
35.
2-1707
Engine Pulley
1
36. 5-0723 Rear Wheel Arm Assembly, L.H.
1
OPTIONAL ACCESSORIES
37.
1 -0008
Key 1
The optional
accessories listed below are available
38. 1-2180
Blade Drive Hub
1
from your Snapper dealer. These kits will add to your
39. 5-0711
Slider Assembly 1
convenience o nd extend the use of the product. Any
40. 1-8166
Blade 1
of these kits may be installed in less than ten minutes
41.
1-2063
Cone Washer 1
using standard household tools.
42.
9-0523
3 / 8-24 x 1-1 /2" Gr. 5 Cap Screw 1
1 . SIDE CHUTE KIT 6-0258. This kit consists of a metal
43.
1-0410 Roll Pin 2
chute and fasteners to permit conversion of the
44.
5-0722 Rear Wheel Arm Assembly, R.H.
1
mower to side discharge operation.
45.
1-1093
Grip 4
2.
ZIP KIT 6-0254. This kit consists of a plastic coated
46.
1-0921
Height Latch 4
metal hoop which may be installed on the rear end
47. 3-7308 Rear Bracket, R.H. 1
of the grass bag. Its purpose is to permit fast trans-
48.
49.
9-0197
3-7309
5/16-18 Jam Nut
Rear Bracket, L.H.
4
1
fer of the clippings directly into a standard
posable trash bag.
d is-
50. 1-1791 Bolt Retainer
4
3.
SNAPPERIZER KIT 6-0255. This kit consists of
an
51.
1-1078
5/16-16 Shoulder Screw 4
expanded
metal shredder plate, a bottom plate.
52.
1-0935 3/4" Washer 2
and attaching hardware. Its purpose is to convert
the mower into a combined outdoor vacuum and
53.
1-1113 Rear Hub Cap 2
leaf shredder.
54.
1 -0945
Rear Wheel
2
