Snapper VI80 - Page 23

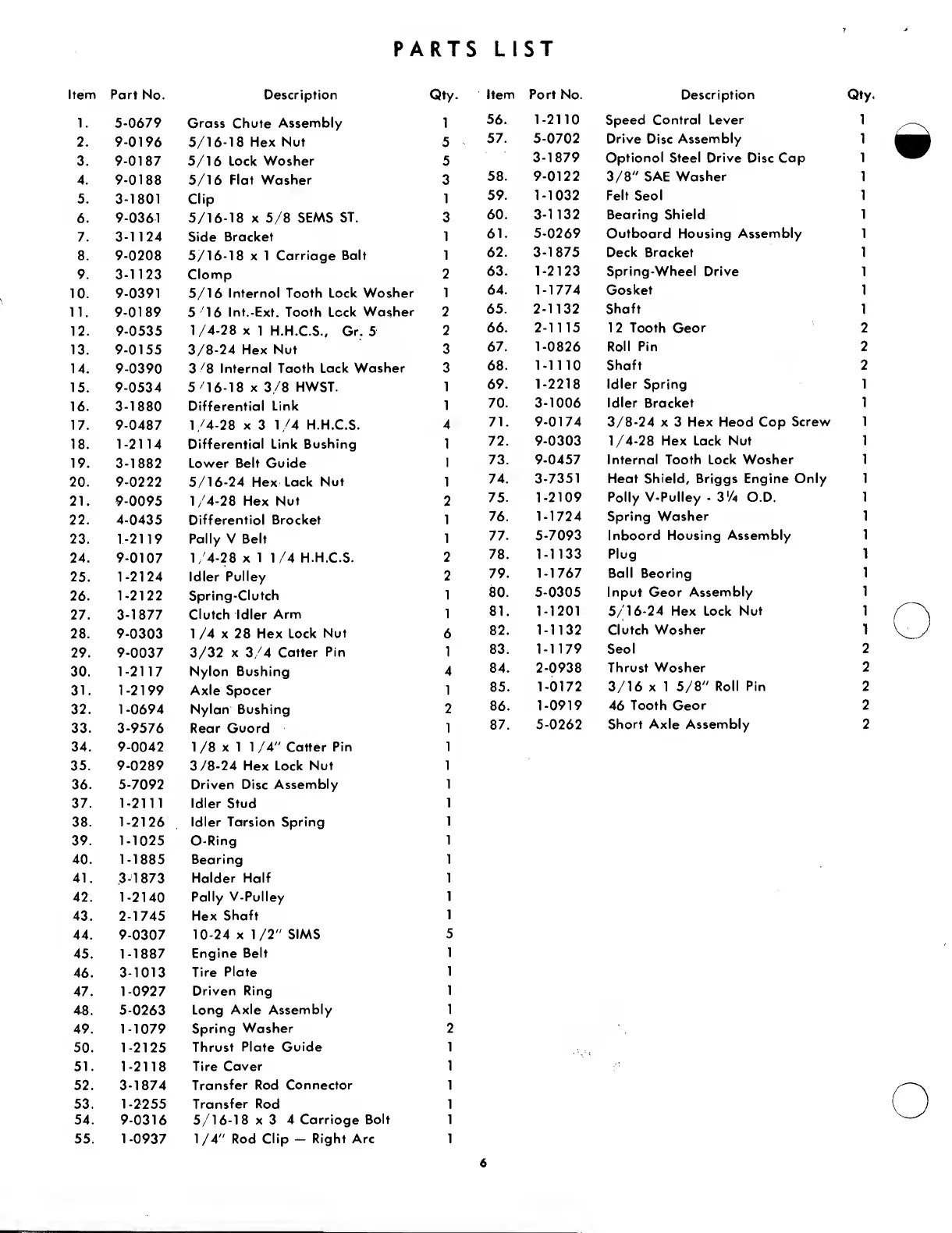

PARTS LIST
Item
Part No. Description Qty.
Item Part No. Description
1. 5-0679
Grass Chute Assembly 1
56. 1-2110 Speed Control Lever
2.
9-0196 5/16-18 Hex Nut 5
57.
5-0702
Drive Disc Assembly
3. 9-0187 5/16 Lock Washer 5
3-1879
Optional Steel Drive Disc Cap
4.
9-0188
5/16 Flat Washer
3
58. 9-0122
3/8" SAE Washer
5.
3-1801 Clip
1
59. 1-1032 Felt Seal
6. 9-0361
5/16-18 x 5/8 SEMS ST.
3
60. 3-1132 Bearing Shield
7.
3-1124 Side Bracket
1
61.
5-0269
Outboard Housing Assembly
8. 9-0208 5/16-18 x 1 Carriage Bolt
1
62.
3-1875 Deck Bracket
9.
3-1123
Clamp
2
63. 1-2123
Spring-Wheel Drive
10.
9-0391
5/16 Internal Tooth Lock Washer
1
64. 1-1774 Gasket
11.
9-0189 5'16 Int.-Ext. Tooth Lock Washer
2
65. 2-1132 Shaft
12. 9-0535 1/4-28 x 1 H.H.C.S., Gr. 5
2
66. 2-1115 1 2 Tooth Gear
13. 9-0155
3/8-24 Hex Nut
3
67.
1-0826
Roll Pin
14.
9-0390
3/8 Internal Tooth Lock Washer
3
68. 1-1110
Shaft
15.
9-0534
5/16-18 x 3/8 HWST.
1
69.
1-2218
Idler Spring
16. 3-1880
Differential Link
1
70. 3-1006
Idler Bracket
17. 9-0487 1/4-28 x 3 1/4 H.H.C.S.
4
71. 9-0174
3/8-24 x 3 Hex Head Cap Screw
18. 1-2114
Differential Link Bushing 1
72.
9-0303
1/4-28 Hex Lock Nut
19.
3-1882
Lower Belt Guide
1
73. 9-0457
Internal Tooth Lock Washer
20. 9-0222
5/16-24 Hex Lock Nut 1
74. 3-7351 Heat Shield, Briggs Engine Only
21. 9-0095 1/4-28 Hex Nut 2
75.
1-2109 Polly V-Pulley - 3 '/a O.D.
22.
4-0435 Differential Bracket
1
76.
1-1724 Spring Washer
23.
1-2119 Polly V Belt
1
77. 5-7093
Inboard Housing Assembly
24.
9-0107 1/4-28 x 1 1/4 H.H.C.S.
2
78.
1-1133 Plug
25.
1-2124
Idler Pulley
2
79. 1-1767
Ball Bearing
26.
1-2122
Spring-Clutch 1
80.
5-0305 Input Gear Assembly
27.
3-1877
Clutch Idler Arm
1
81. 1-1201
5/16-24 Hex Lock Nut
28. 9-0303
1/4x28 Hex Lock Nut 6
82.
1-1132 Clutch Washer
29. 9-0037 3/32 x 3/4 Cotter Pin
1
83.
1-1179 Seal
30. 1-2117
Nylon Bushing 4
84.
2-0938 Thrust Washer
31.
1-2199 Axle Spacer 1
85.
1-0172
3/16 x 1 5/8" Roll Pin
32.
1-0694
Nylon Bushing
2
86.
1-0919
46 Tooth Gear
33.
3-9576
Rear Guard
1
87.
5-0262 Short Axle Assembly
34.
9-0042 1/8x1 1/4" Cotter Pin
1
35.
9-0289
3/8-24 Hex Lock Nut
1
36.
5-7092 Driven Disc Assembly
1
37. 1-2111
Idler Stud 1
38. 1-2126
Idler Torsion Spring
1
39. 1-1025
O-Ring 1
40. 1-1885
Bearing 1
41.
3-1 873
Holder Half
1
42.
1-2140
Polly V-Pulley
1
43. 2-1745
Hex Shaft
1
44. 9-0307
10-24 x 1/2" SIMS
5
45.
1-1887 Engine Belt
1
46. 3-1013
Tire Plate
1
47. 1-0927
Driven Ring
1
48.
5-0263
Long Axle Assembly 1
49. 1-1079
Spring Washer 2
50. 1-2125
Thrust Plate Guide 1
51. 1-2118
Tire Cover
1
52. 3-1874
Transfer Rod Connector
1
53. 1-2255
Transfer Rod
1
54.
9-0316
5/16-18 x 3 4 Carriage Bolt
1
55. 1-0937 1/4" Rod Clip — Right Arc
1
Qty.
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
2
2
2
2
2
6
