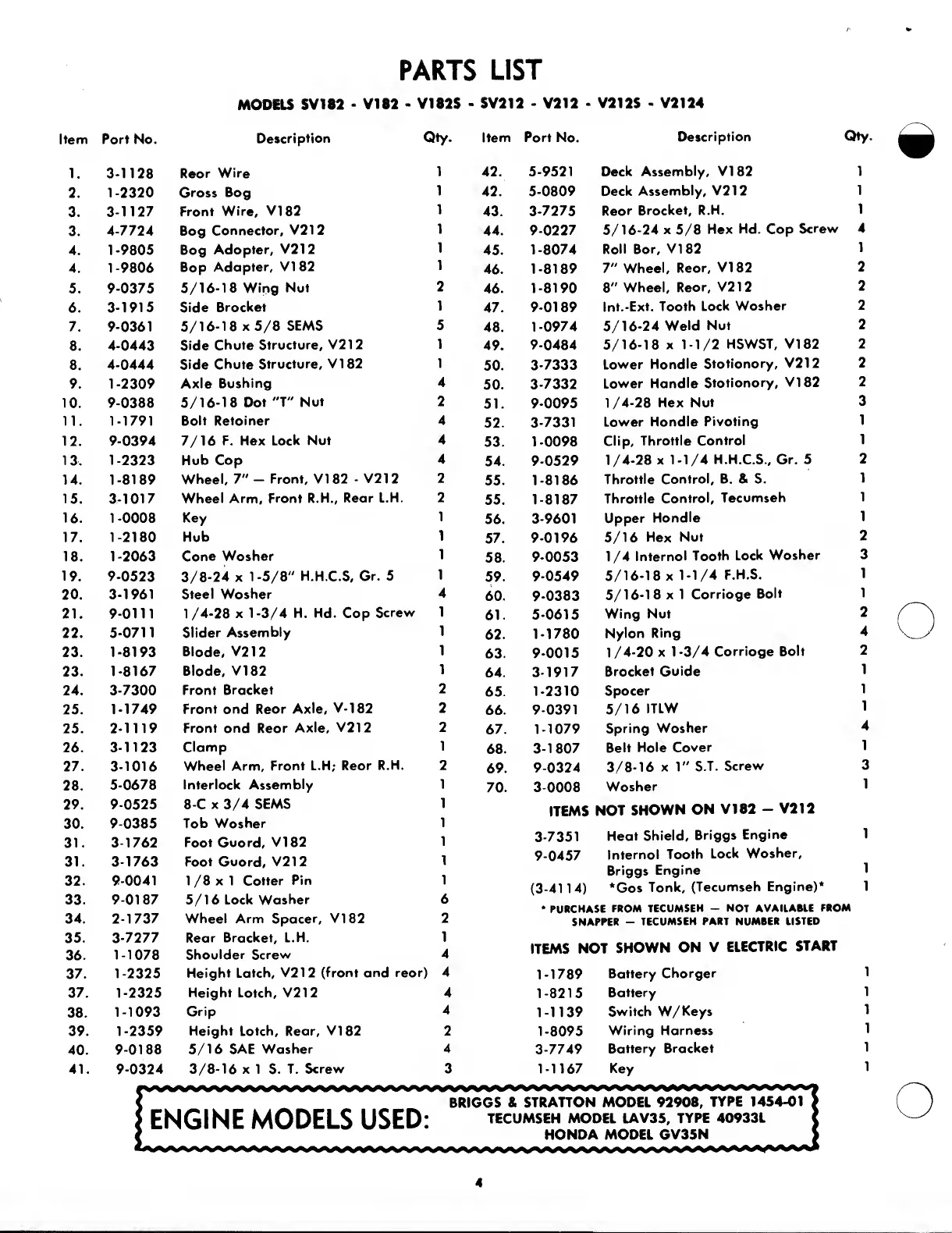

PARTS LIST
MODELS SV182 • V182 -
V182S
- SV212 - V212 -
V212S - V2124
Item Part No.
Description
Qty. Item Part No.
Description
Qty.
1 .
3-1128
Rear Wire
1
42. 5-9521
Deck Assembly, VI82
1
2.
1-2320 Grass Bag
1
42.
5-0809
Deck Assembly, V212
1
3.
3-1127
Front Wire, VI82
1
43.
3-7275
Rear Bracket, R.H.
1
3.
4-7724
Bag Connector, V212
1
44. 9-0227
5/16-24 x 5/8 Hex Hd. Cap Screw
4
4.
1-9805
Bag Adapter, V212
1
45.
1-8074
Roll Bor, VI82
1
4. 1-9806
Bap Adapter, VI82
1
46.
1-8189
7" Wheel, Rear, VI82
2
5. 9-0375
5/16-18 Wing Nut
2
46.
1-8190
8" Wheel, Rear, V212
2
6.
3-1915
Side Bracket
1
47.
9-0189
Int.-Ext. Tooth Lock Washer
2
7. 9-0361
5/16-18 x 5/8 SEMS
5
48.
1 -0974
5/16-24 Weld Nut
2
8. 4-0443
Side Chute Structure, V212
1
49.
9-0484
5/16-18 x 1-1/2 HSWST, V182
2
8.
4-0444
Side Chute Structure, VI82
1
50.
3-7333
Lower Handle Stationary, V212
2
9. 1-2309
Axle Bushing
4
50.
3-7332
Lower Handle Stationary, VI82
2
10 .
9-0388
5/16-18 Dot "T" Nut
2
51.
9-0095
1/4-28 Hex Nut
3
11.
1-1791
Bolt Retainer
4
52.
3-7331
Lower Handle Pivoting
1
12 .
9-0394
7/16 F. Hex Lock Nut
4
53.
1 -0098
Clip, Throttle Control
1
13.
1-2323
Hub Cap
4
54.
9-0529
1/4-28 x 1-1/4 H.H.C.S., Gr. 5
2
14.
1-8189
Wheel, 7" - Front, VI82 - V212
2
55.
1-8186
Throttle Control, B. & S.
1
15.
3-1017
Wheel Arm, Front R.H., Rear L.H.
2
55.
1-8187
Throttle Control, Tecumseh
1
16.
1 -0008
Key
1
56.
3-9601
Upper Handle
1
17. 1-2180
Hub
1
57. 9-0196
5/16 Hex Nut
2
18.
1-2063
Cone Washer
1
58.
9-0053
1 /4 Internal Tooth Lock Washer
3
19.
9-0523
3/8-24 x 1-5/8" H.H.C.S, Gr. 5
1
59.
9-0549
5/16-18 x 1-1/4 F.H.S.
1
20. 3-1961
Steel Washer
4
60. 9-0383
5/16-18 x 1 Carriage Bolt
1
21. 9-0111
1/4-28 x 1-3/4 H. Hd. Cap Screw
1
61.
5-0615
Wing Nut
2
22.
5-0711
Slider Assembly
1
62.
1-1780
Nylon Ring
4
23.
1-8193
Blade, V212
1
63.
9-0015
1/4-20 x 1-3/4 Carriage Bolt
2
23.
1-8167 Blade, VI82
1
64.
3-1917
Bracket Guide
1
24.
3-7300
Front Bracket
2
65.
1-2310
Spacer
1
25.
1-1749
Front and Rear Axle, V-182
2
66.
9-0391
5/16 ITLW
1
25.
2-1119 Front and Rear Axle, V212
2
67.
1-1079
Spring Washer
4
26.
3-1123
Clamp
1
68.
3-1807
Belt Hole Cover
1
27. 3-1016
Wheel Arm, Front L.H; Rear R.H.
2
69.
9-0324
3/8-16 x 1" S.T. Screw
3
28.
5-0678 Interlock Assembly
1
70.
3-0008
Washer
1
29. 9-0525
8-C x 3/4 SEMS
1
ITEMS NOT SHOWN ON VI82 - V212
30.
9-0385
Tab Washer
1
31.
3-1762
Foot Guard, VI82
1
3-7351
Heat Shield, Briggs Engine
1
31. 3-1763
Foot Guard, V212
1
9-0457
Internal Tooth Lock Washer,
1
32.
9-0041 1/8x1 Cotter Pin
1
(3-4114)
Briggs Engine
*Gas Tank, (Tecumseh Engine)*
1
1
33.
9-0187
5/16 Lock Washer
6
* PURCHASE FROM TECUMSEH - NOT AVAILABLE FROM
34. 2-1737 Wheel Arm Spacer, VI82
2
SNAPPER - TECUMSEH PART NUMBER LISTED
35. 3-7277
Rear Bracket, L.H.
1
36.
1-1078
Shoulder Screw
4
ITEMS NOT SHOWN ON V ELECTRIC START
37.
1-2325
Height Latch, V212 {front and rear) 4
1-1789
Battery Charger
1
37. 1-2325
Height Latch, V212 4
1-8215
Battery
1
38.
1-1093
Grip
4
1-1139
Switch W/Keys
1
39. 1-2359
Height Latch, Rear, VI82 2
1-8095
Wiring Harness
1
40.
9-0188
5/16 SAE Washer
4
3-7749
Battery Bracket
1
41. 9-0324 3/8-16 x 1 S. T. Screw
3 1-1167 Key
1
ENGINE MODELS USED:
BRIGGS & STRATTON MODEL 92908, TYPE 1454-01
TECUMSEH MODEL LAV35, TYPE 40933L
HONDA MODEL GV35N
4
