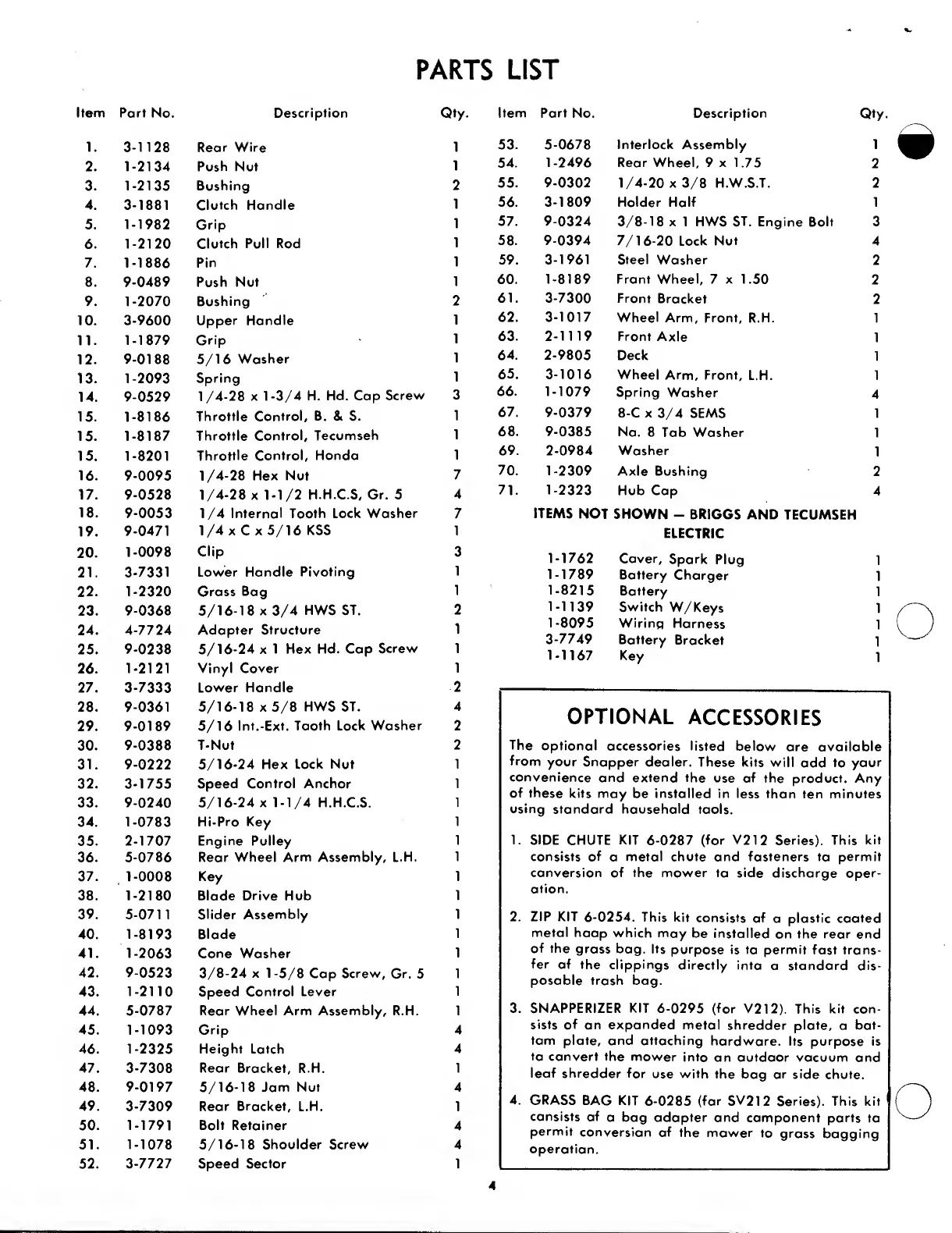

PARTS LIST
Item Part No.
Description
1.
3-1128 Rear Wire
2. 1-2134 Push Nut
3. 1-2135
Bushing
4.
3-1881 Clutch Handle
5. 1-1982 Grip
6. 1-2120
Clutch Pull Rod
7.
1-1886
Pin
8. 9-0489 Push Nut
9. 1-2070
Bushing
10. 3-9600
Upper Handle
11.
1-1879
Grip
12. 9-0188
5/16 Washer
13. 1-2093
Spring
14. 9-0529
1/4-28 x 1-3/4 H. Hd. Cap Screw
15. 1-8186
Throttle Control, B. & S.
15.
1-8187
Throttle Control, Tecumseh
15. 1-8201
Throttle Control, Honda
16. 9-0095
1/4-28 Hex Nut
17.
9-0528
1/4-28 x 1-1/2 H.H.C.S, Gr. 5
18.
9-0053 1/4 Internal Tooth Lock Washer
19.
9-0471
1/4 xC x 5/16 KSS
20.
1-0098
Clip
21. 3-7331
Lower Handle Pivoting
22. 1-2320 Grass Bag
23.
9-0368
5/16-18 x 3/4 HWS ST.
24.
4-7724
Adapter Structure
25.
9-0238
5/16-24 x 1 Hex Hd. Cap Screw
26. 1-2121
Vinyl Cover
27.
3-7333
Lower Handle
28.
9-0361
5/16-18 x 5/8 HWS ST.
29.
9-0189 5/16 Int.-Ext. Tooth Lock Washer
30.
9-0388
T-Nut
31. 9-0222
5/16-24 Hex Lock Nut
32.
3-1755
Speed Control Anchor
33.
9-0240
5/16-24 x 1-1/4 H.H.C.S.
34.
1-0783
Hi-Pro Key
35.
2-1707
Engine Pulley
36.
5-0786 Rear Wheel Arm Assembly, L.H.
37.
1-0008 Key
38. 1-2180 Blade Drive Hub
39. 5-0711 Slider Assembly
40.
1-8193
Blade
41.
1-2063
Cone Washer
42.
9-0523 3/8-24 x 1-5/8 Cap Screw, Gr. 5
43. 1-2110 Speed Control Lever
44.
5-0787 Rear Wheel Arm Assembly, R.H.
45. 1-1093
Grip
46. 1-2325
Height Latch
47.
3-7308
Rear Bracket, R.H.
48.
9-0197 5/16-18 Jam Nut
49. 3-7309 Rear Bracket, L.H.
50.
1-1791 Bolt Retainer
51. 1-1078
5/16-18 Shoulder Screw
52.
3-7727
Speed Sector
Qty.
2
2
3
7
4
7
1
3
1
1
2
1
1
1
2
4
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
4
1
4
1
4
4
1
Item Part No.
Description
Qty.
53. 5-0678
Interlock Assembly 1
54. 1-2496 Rear Wheel, 9 x 1.75
2
55.
9-0302
1/4-20 x 3/8 H.W.S.T.
2
56.
3-1809 Holder Half 1
57. 9-0324
3/8-18 x 1 HWS ST. Engine Bolt 3
58.
9-0394
7/16-20 Lock Nut 4
59. 3-1961 Steel Washer
2
60.
1-8189
Front Wheel, 7x1.50
2
61.
3-7300
Front Bracket
2
62. 3-1017
Wheel Arm, Front, R.H.
1
63. 2-1119
Front Axle
1
64.
2-9805 Deck
1
65.
3-1016
Wheel Arm, Front, L.H.
1
66.
1-1079
Spring Washer
4
67.
9-0379
8-C x 3/4 SEMS 1
68. 9-0385
No. 8 Tab Washer
1
69. 2-0984 Washer
1
70. 1-2309
Axle Bushing
2
71.
1-2323 Hub Cap
4
ITEMS NOT SHOWN - BRIGGS AND TECUMSEH
ELECTRIC
1-1762
Cover, Spark Plug
1
1-1789
Battery Charger
1
1-8215
Battery
1
1-1139 Switch W/Keys
1
1-8095
Wiring Harness
1
3-7749
Battery Bracket
1
1-1167
Key
1
OPTIONAL ACCESSORIES
The optional accessories listed below are available
from your Snapper dealer. These kits will add to your
convenience and extend the use of the product. Any
of these kits may be installed in less than ten minutes
using standard household tools.
1. SIDE CHUTE KIT 6-0287 (for V212 Series). This kit
consists of a metal chute and fasteners to permit
conversion of the mower to side discharge oper¬
ation.
2. ZIP KIT 6-0254. This kit consists of a plastic coated
metal hoop which may be installed on the rear end
of the grass bag. Its purpose is to permit fast trans¬
fer of the clippings directly into a standard dis¬
posable trash bag.
3. SNAPPERIZER KIT 6-0295 (for V212). This kit con¬
sists of an expanded metal shredder plate, a bot¬
tom plate, and attaching hardware. Its purpose is
to convert the mower into an outdoor vacuum and
leaf shredder for use with the bag or side chute.
4. GRASS BAG KIT 6-0285 (for SV212 Series). This kit
consists of a bag adapter and component parts to
permit conversion of the mower to grass bagging
operation.
4
