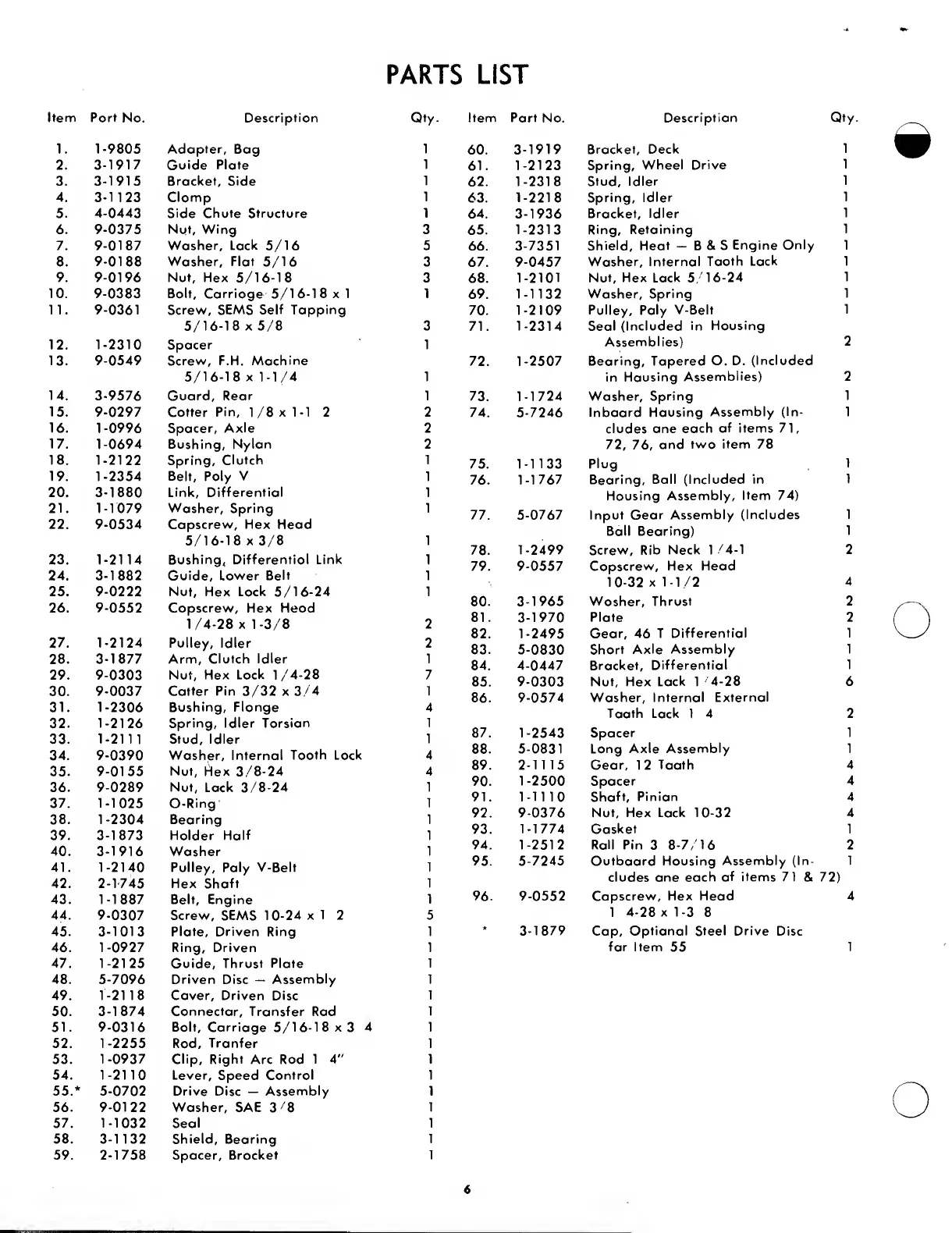

PARTS LIST
Item Part No.
Description
Qty
1 . 1-9805
Adapter, Bag 1
2.
3-1917
Guide Plate
1
3. 3-1915
Bracket, Side
1
4.
3-1123 Clamp
1
5. 4-0443 Side Chute Structure
1
6. 9-0375 Nut, Wing 3
7. 9-0187
Washer, Lock 5/16
5
8. 9-0188
Washer, Flat 5/16
3
9.
9-0196
Nut, Hex 5/16-18
3
10 .
9-0383
Bolt, Carriage 5/16-18 x 1 1
11 . 9-0361
Screw, SEMS Self Tapping
5/16-18x5/8 3
12. 1-2310
Spacer 1
13.
9-0549 Screw, F.H. Machine
5/16-18 x 1-1/4
1
14.
3-9576
Guard, Rear 1
15. 9-0297 Cotter Pin, 1 /8 x 1 -1 2 2
16. 1-0996
Spacer, Axle 2
17. 1-0694 Bushing, Nylon 2
18. 1-2122 Spring, Clutch
1
19. 1-2354
Belt, Poly V
1
20.
3-1880
Link, Differential
1
21. 1-1079
Washer, Spring 1
22. 9-0534
Capscrew, Hex Head
5/16-18 x 3/8
1
23.
1-2114 Bushing, Differential Link 1
24.
3-1882
Guide, Lower Belt 1
25. 9-0222 Nut, Hex Lock 5/16-24 1
26.
9-0552 Capscrew, Hex Head
1/4-28 x 1-3/8 2
27.
1-2124
Pulley, Idler 2
28.
3-1877
Arm, Clutch Idler 1
29.
9-0303
Nut, Hex Lock 1/4-28
7
30.
9-0037
Cotter Pin 3/32 x 3/4
1
31.
1-2306
Bushing, Flange
4
32. 1-2126
Spring, Idler Torsion 1
33.
1-2111 Stud, Idler
1
34. 9-0390
Washer, Internal Tooth Lock
4
35. 9-0155 Nut, Hex 3/8-24
4
36.
9-0289 Nut, Lock 3/8-24 1
37.
1-1025
O-Ring
1
38.
1-2304
Bearing 1
39. 3-1873 Holder Half
1
40. 3-1916
Washer 1
41.
1-2140
Pulley, Poly V-Belt
1
42.
2-1745
Hex Shaft
1
43. 1-1887
Belt, Engine
1
44.
9-0307
Screw, SEMS 10-24 x 1 2 5
45. 3-1013
Plate, Driven Ring 1
46.
1-0927 Ring, Driven 1
47.
1-2125 Guide, Thrust Plate
1
48.
5-7096
Driven Disc — Assembly 1
49.
1-2118
Cover, Driven Disc
1
50. 3-1874 Connector, Transfer Rod 1
51. 9-0316
Bolt, Carriage 5/16-18 x 3 4 1
52. 1-2255 Rod, Tranfer 1
53.
1-0937
Clip, Right Arc Rod 1 4"
1
54. 1-2110
Lever, Speed Control
1
55.* 5-0702 Drive Disc — Assembly 1
56. 9-0122
Washer, SAE 3^8 1
57. 1-1032
Seal
1
58. 3-1132 Shield, Bearing
1
59. 2-1758
Spacer, Bracket 1
Item Part No. Description
Qty.
60.
3-1919 Bracket, Deck
1
61.
1-2123
Spring, Wheel Drive
1
62. 1-2318
Stud, Idler
1
63. 1-2218
Spring, Idler
1
64.
3-1936
Bracket, Idler
1
65. 1-2313
Ring, Retaining
1
66. 3-7351
Shield, Heat — B & S Engine Only
1
67. 9-0457
Washer, Internal Tooth Lock
1
68. 1-2101
Nut, Hex Lock 5/16-24
1
69. 1-1132 Washer, Spring
1
70.
1-2109 Pulley, Poly V-Belt
1
71. 1-2314
Seal (Included in Housing
Assemblies)
2
72.
1-2507 Bearing, Tapered O. D. (Included
in Housing Assemblies)
2
73.
1-1724
Washer, Spring
1
74.
5-7246
Inboard Housing Assembly (In¬
1
cludes one each of items 71,
72, 76, and two item 78
75. 1-1133
Plug
1
76.
1-1767
Bearing, Ball (Included in
1
Housing Assembly, Item 74)
77.
5-0767 Input Gear Assembly (Includes
1
Ball Bearing)
1
78.
1-2499 Screw, Rib Neck 1 /4-1
2
79. 9-0557
Capscrew, Hex Head
10-32 x 1-1/2
4
80.
3-1965 Washer, Thrust
2
81.
3-1970
Plate
2
82.
1-2495
Gear, 46 T Differential 1
83.
5-0830
Short Axle Assembly 1
84. 4-0447
Bracket, Differential
1
85. 9-0303
Nut, Hex Lock 1 4-28 6
86.
9-0574 Washer, Internal External
Tooth Lock 1 4 2
87.
1-2543
Spacer 1
88.
5-0831
Long Axle Assembly 1
89. 2-1115
Gear, 12 Tooth
4
90.
1-2500
Spacer
4
91.
1-1110
Shaft, Pinion
4
92. 9-0376
Nut, Hex Lock 10-32
4
93.
1-1774 Gasket 1
94. 1-2512 Roll Pin 3 8-7/16 2
95.
5-7245 Outboard Housing Assembly (In-
1
eludes one each of items 71 & 72)
96.
9-0552
Capscrew, Hex Head 4
1 4-28 x 1-3 8
*
3-1879
Cap, Optional Steel Drive Disc
for Item 55 1
6
