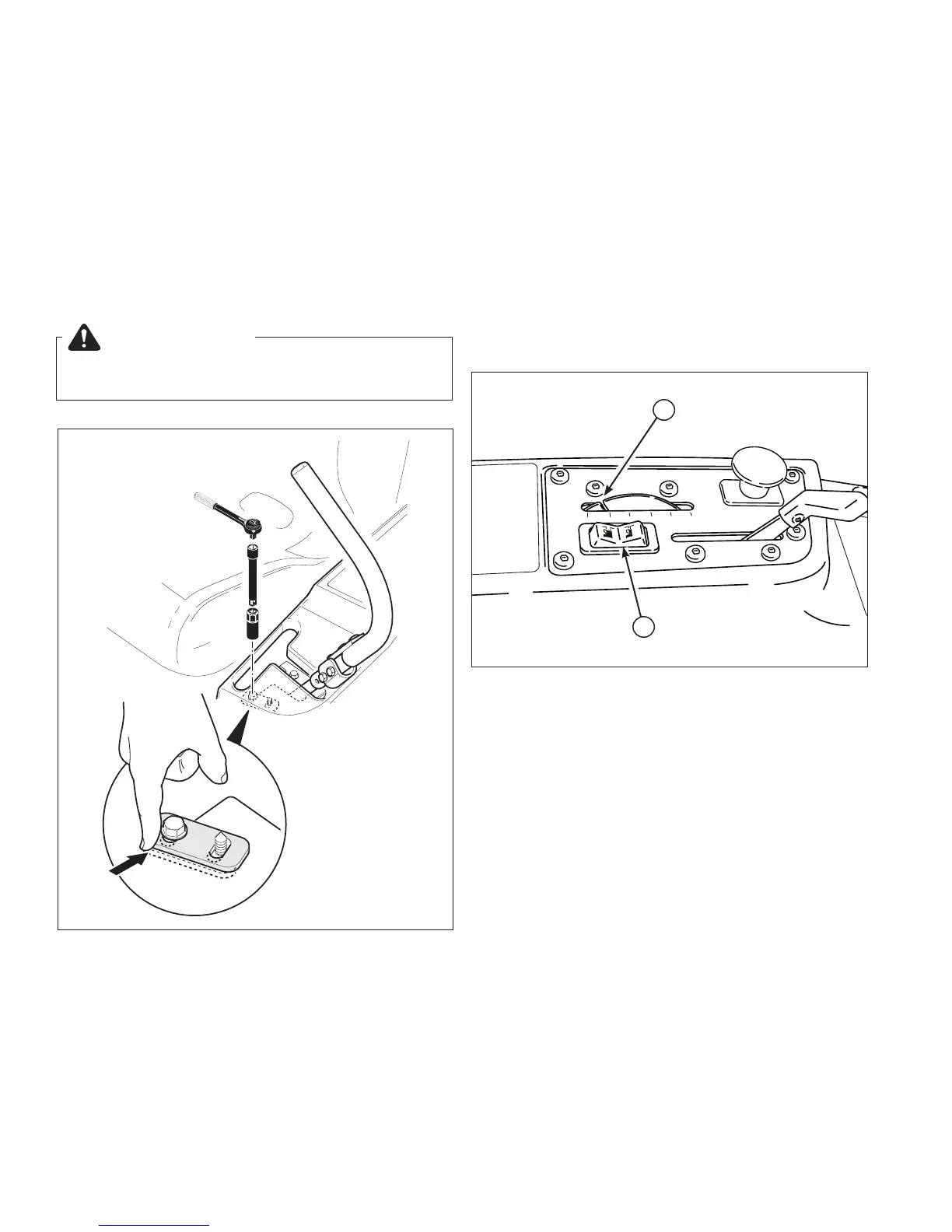

Figure 16. Cutting Height Adjustment
Cutting Height Adjustment
The cutting height adjustment switch controls the mower
cutting height. The cutting height is adjustable between
1-1/2” (3,8 cm) and 3-3/4” (9,5 cm).
To adjust cutting height:
Press the adjustment switch (A, Figure 16) forward to
lower the mower deck, backward to raise the mower
deck.
The slot in the cutting height indicator () indicates the
cutting height of the mower deck.
A
24
www.snapper.com
WARNING
DO NOT adjust the rider for a faster overall speed
forward or reverse than it was designed.
If the rider drifts to the right or left when the ground
speed levers are in the maximum forward position, the
top speed of each of these levers can be balanced. Only
adjust the speed of the wheel that is traveling faster.
Loosen the bolt securing the forward adjust plate (see
Figure 15). Slide the plate up approximately 1/8”.
Retighten the bolt and recheck speed balance. Repeat
steps until adjustment is complete.
