Section 1 - FAMILIARIZATION
CONTROL PANEL
BLADE SWITCH
AMP
OPERATOR'S SEAT
DECK LIFT
SWITCH
HOUR LIGHT
KEYSWITCH METER SWITCH
FUEL TANK
MOTION
CONTROL
(JOYSTICK)
CHOKE CONTROL
ENGINESPEED
CONTROL
PARKING BRAKE
CONTROL
PANEL
(SEE INSET)
DECK HEIGHT OF
CUTDECAL
DECK COVER
_CASTER
WHEEL
BRACKET
DISCHARGE
DEFLECTOR

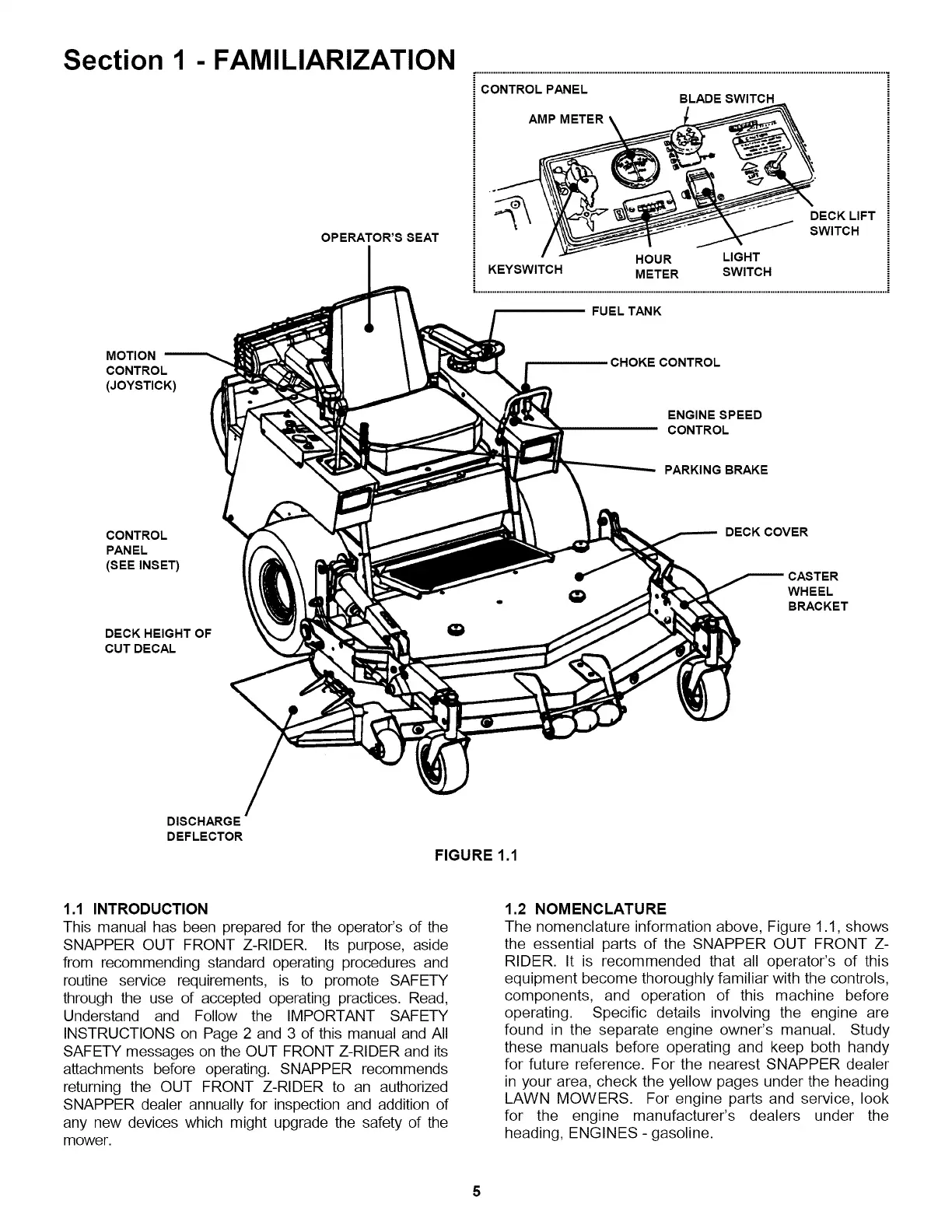

FIGURE 1.1
1.1 INTRODUCTION
This manual has been prepared for the operator's of the
SNAPPER OUT FRONT Z-RIDER. Its purpose, aside
from recommending standard operating procedures and
routine service requirements, is to promote SAFETY
through the use of accepted operating practices. Read,
Understand and Follow the IMPORTANT SAFETY
INSTRUCTIONS on Page 2 and 3 of this manual and All
SAFETY messages on the OUT FRONT Z-RIDER and its
attachments before operating. SNAPPER recommends
returning the OUT FRONT Z-RIDER to an authorized
SNAPPER dealer annually for inspection and addition of
any new devices which might upgrade the safety of the
mower.
1.2 NOMENCLATURE
The nomenclature information above, Figure 1.1, shows
the essential parts of the SNAPPER OUT FRONT Z-
RIDER. It is recommended that all operator's of this
equipment become thoroughly familiar with the controls,
components, and operation of this machine before
operating. Specific details involving the engine are
found in the separate engine owner's manual. Study
these manuals before operating and keep both handy
for future reference. For the nearest SNAPPER dealer
in your area, check the yellow pages under the heading
LAWN MOWERS. For engine parts and service, look
for the engine manufacturer's dealers under the
heading, ENGINES - gasoline.
