Using One Amplifier for Each Speaker
Make sure that the amplifiers are identical.
1. Unscrew both sets of terminals and remove the jumper straps.
2. Connect the cables from the bottom set of terminals to the
first amplifier’s right channel.
3. Connect the cables from the top set of terminals to the first
amplifier’s left channel.
4. Repeat steps 2 and 3 above for the second amplifier.
left speakerright speaker
right channel amplifier left channel amplifier

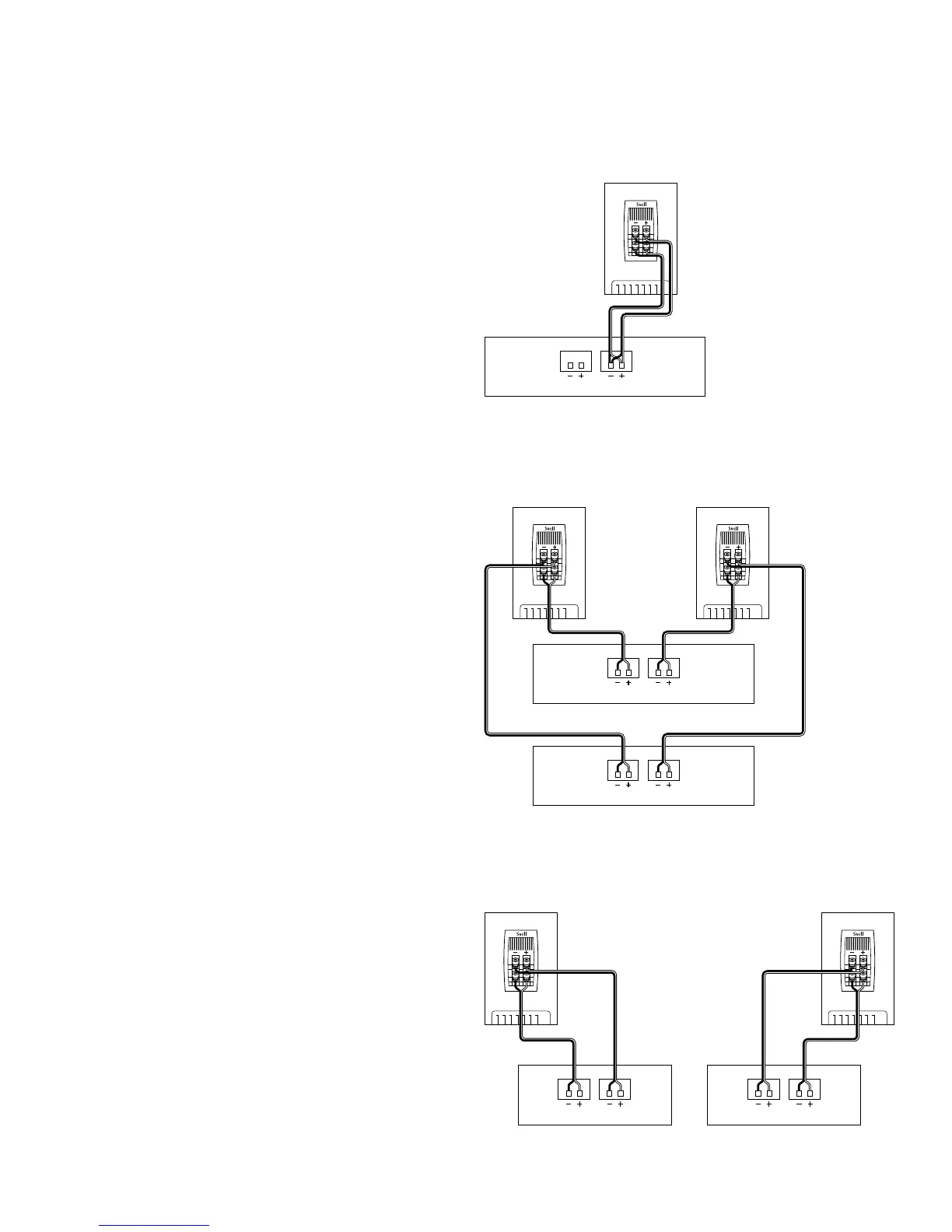

Bi-Wiring and Bi-Amping (All Models)
left speakerright speaker
low-frequency amplifier
high-frequency amplifier
Bi-Amplifying
Using one amplifier for the bass, and one for the high end:
1. Unscrew both sets of terminals and remove the jumper straps.
2. Connect the cables from the bottom set of terminals to the
low-frequency amplifier driving the bass units.
3. Connect the cables from the top set of terminals to the high-
frequency amplifier driving the tweeters.
4. Do not use an external crossover. It will interfere with the
phase and frequency response.
CX or DX
amplifier or receiver
Bi-Wiring
1. Use equal lengths of the appropriate wire when
bi-wiring each speaker. Consult your dealer for cable options.
2. Unscrew both sets of terminals and remove the jumper straps.
