5. Click on the Submit button to add an extension, see Figure 4-3. This will take you
to the Add SIP Extension page.

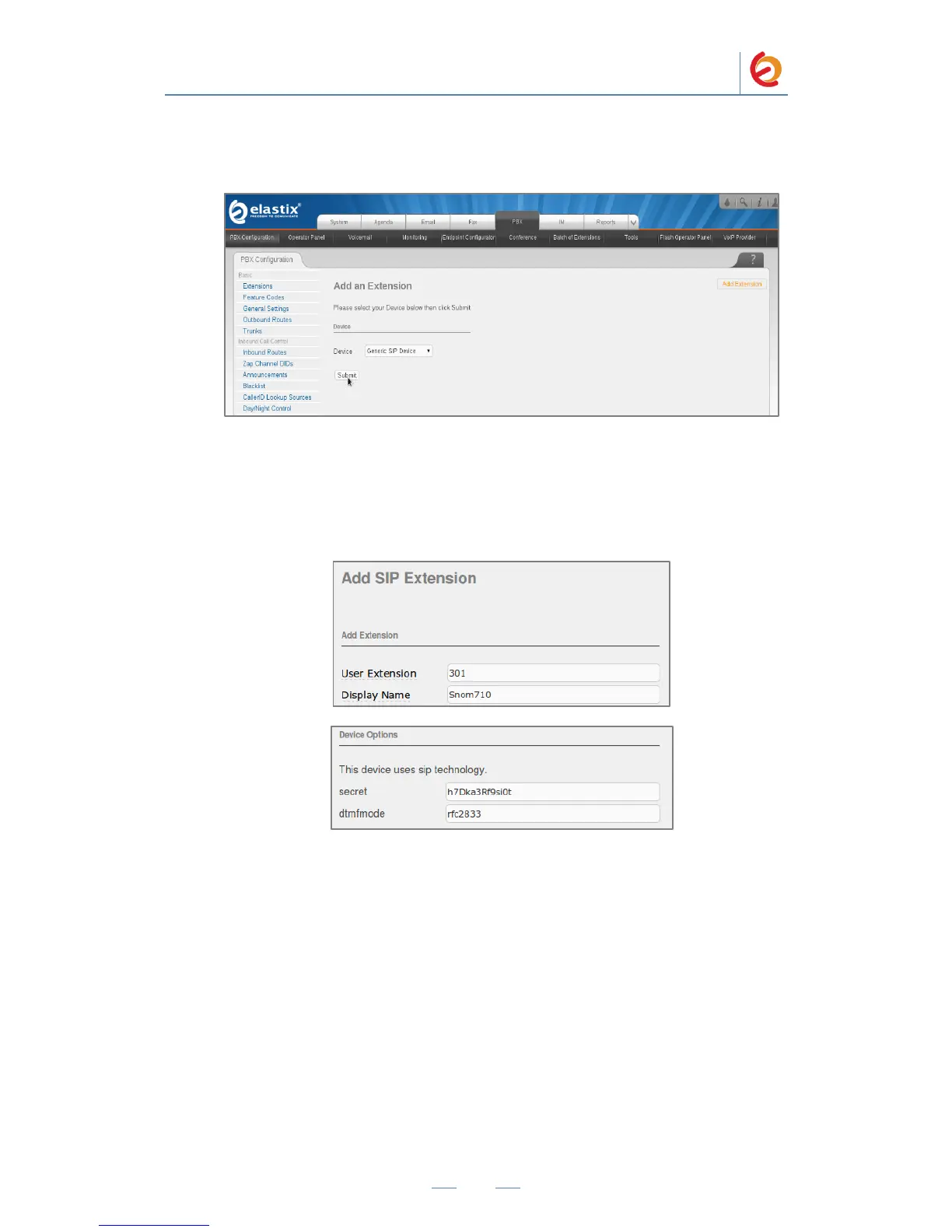

Figure 4-3. Add an Extension
6. On the Add SIP Extension page (Figure 4-4), fill in the following information:
• User Extension (301 in this example)
• Display Name ( “Snom710” in this example)
• secret (“h7Dka3Rf9si0t” in this example)
Figure 4-4. Add SIP Extension
7. Click on the „Submit‟ button at the end of the page. The extension will be created
and you will see the page on Figure 4-5 displaying the “Apply Configuration
Changes Here” pink ribbon on top of the screen.
8. Click in the “Apply Configuration Changes Here” link
