D785 / D785N User Manual Appendix 4 - Wall mounting
Appendix 4 - Wall mounting


1. 
2. 
3.  

4. 
Distance to wall
Abstand zur Wand
Distance au mur
Distanza dalla parete
Distancia a la pared
Distância à parede
∼ 4 mm (0.157")
ø max: 9 mm
(0.354")
ø min: 6 mm
(0.236")
ø max
4,5 mm
(0.177")
50 mm
50 mm
(
(
1.969")
1.969")

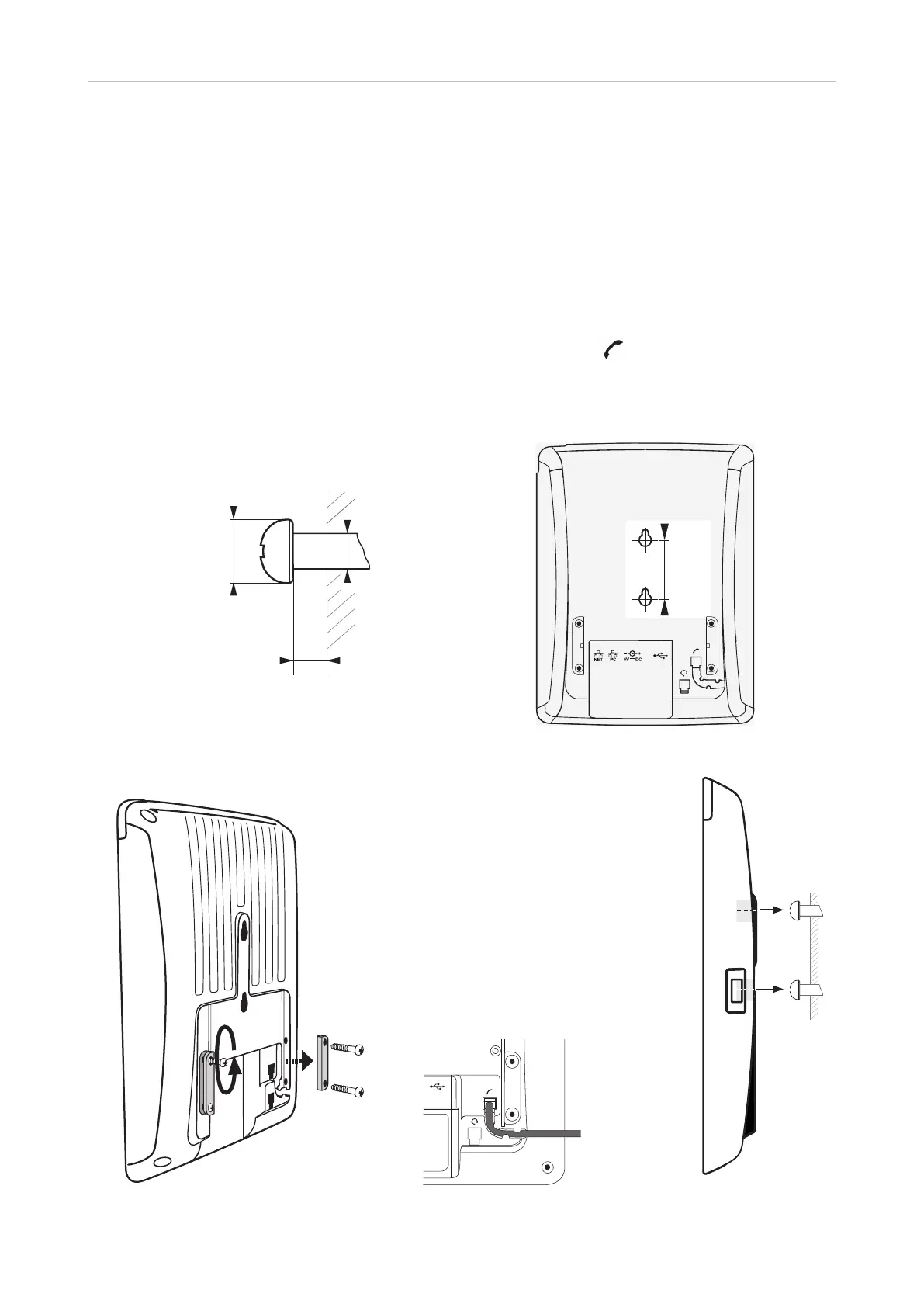

Fig. 1 Fig. 2
Fig. 3 Fig. 4 Fig. 5
