Snorkel S3370BE - Unloader Valve 24 VDC Option

Unloader valve 24VDC option
Item Part No Qty Description
1. 13231 1 Unloader valve bracket
2. 12910 1 Unloader valve
3. 7025-003 2 Adapter, 3/4" UNO -> 3/4" JICM
4. 7031-005 2 Adapter, 90
o
3/4" UNO -> 3/4" JICM
5. 9501-1 1 Tee, 2 x 3/4" JICF, 1x 3/4" JICM run
6. 7013-002 2 Adapter, 1/2" BSPPM -> 3/4" JICM
7. 3028 1 Check valve, 1/2" BSPPF
8. 3610-06075 2 Bolt, M6 x 75, C8.8
9. 3603-06 4 Washer, plain, M6
10. 3611-06 2 Nut, nylock, M6
page 4 - 18 Rev D SR3370 & SR2770 – 13184B

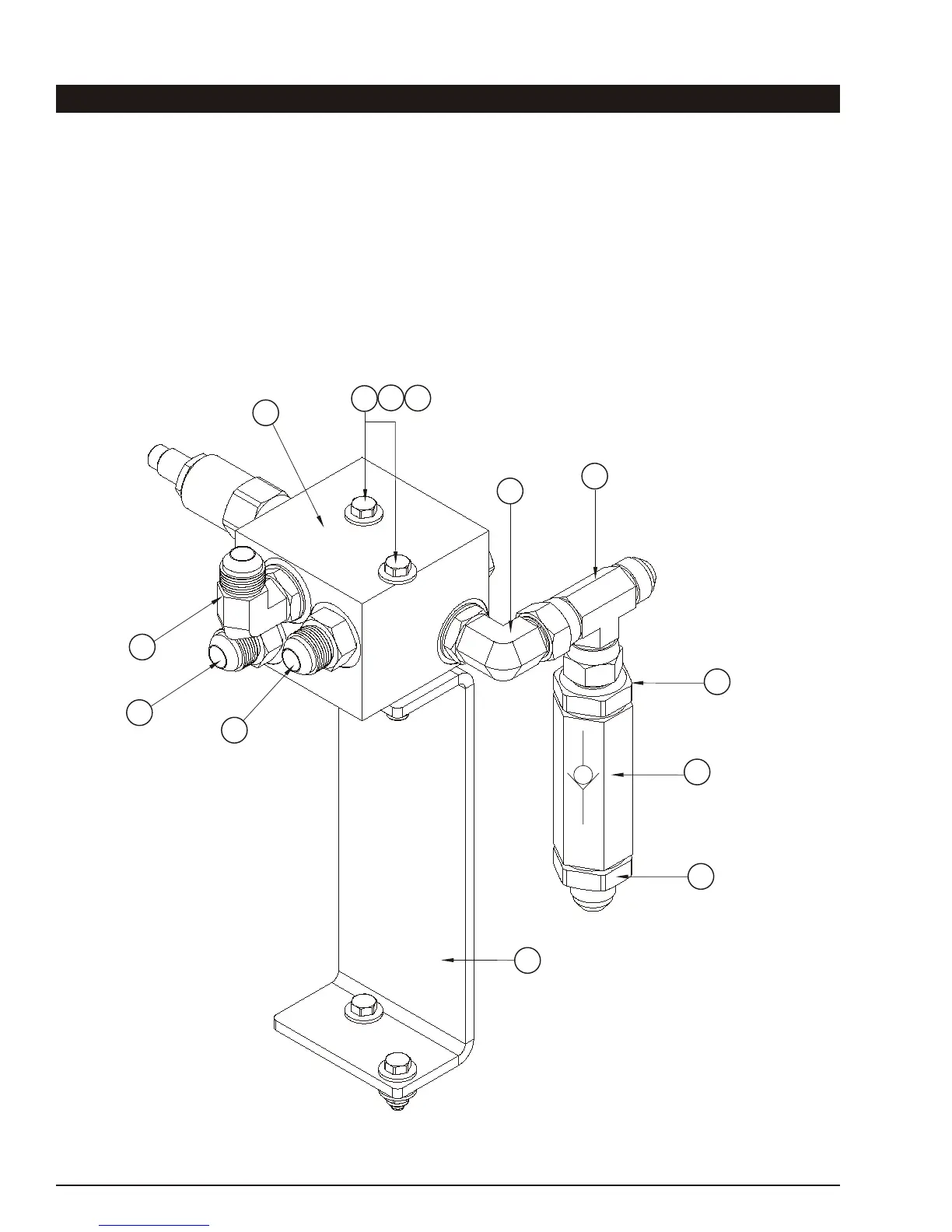

Unloader valve 24VDC option
1
9
3
3
5
7
2
10
4
4
6
6
8
