Snorkel S3370BE - Manifold Assembly, 4 Wheel Drive

Manifold assembly, 4 wheel drive
Item Part No Qty Description
0. 13162A 1 4 wheel drive manifold block assembly, V2
1. 12770-350606 5 Adapter, 90
O
elbow, 9/16" UNO -> 3/8" STCF
2. 12770-330806 8 Adapter, straight, 3/4" UNO -> 3/8" STCF
3. 12770-330606 1 Adapter, straight, 9/16" UNO -> 3/8" STCF
4. 12770-330808 2 Adapter, straight, 3/4" UNO -> 1/2" STCF
5. 12569-2 2 Pilot cartridge, NO
6. 12569-3 2 Flow divider, combiner
7. 12569-5 2 Pilot valve, NC
8. 12569-6 2 Drive motor relief valve
9. 12567-11 1 Selector valve series, parallel
10. 12835-2 1 Coil, 12V
page 2 - 8 Rev D SR3370 & SR2770 – 13184B

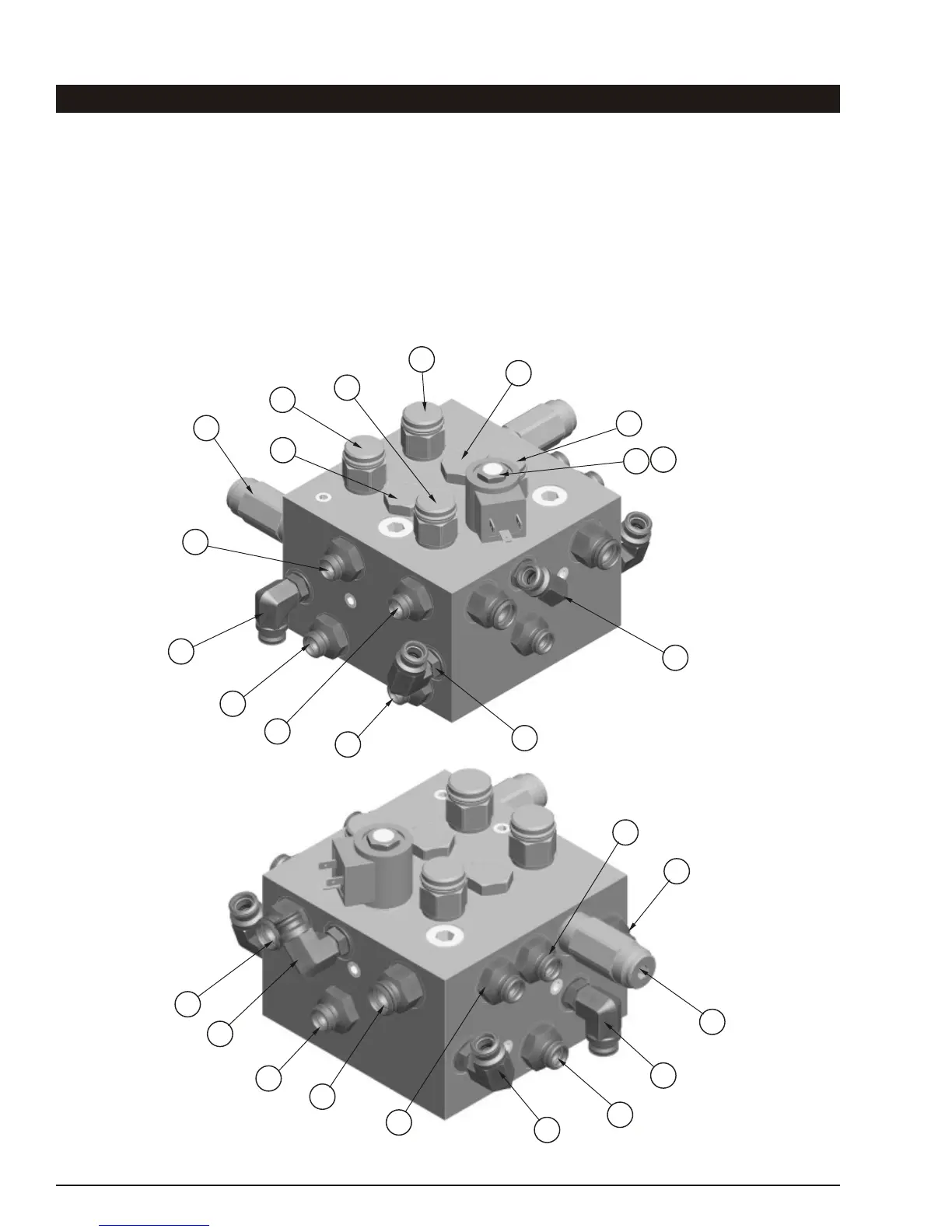

Manifold assembly, 4 wheel drive
1
1
1
3
2
2
2
2
4
4
9
10
7
7
5
5
6
6
8
8
1
1
1
2
2
2
2
