Snorkel S3370BE - Fuel Tank Assembly, Diesel Fuel

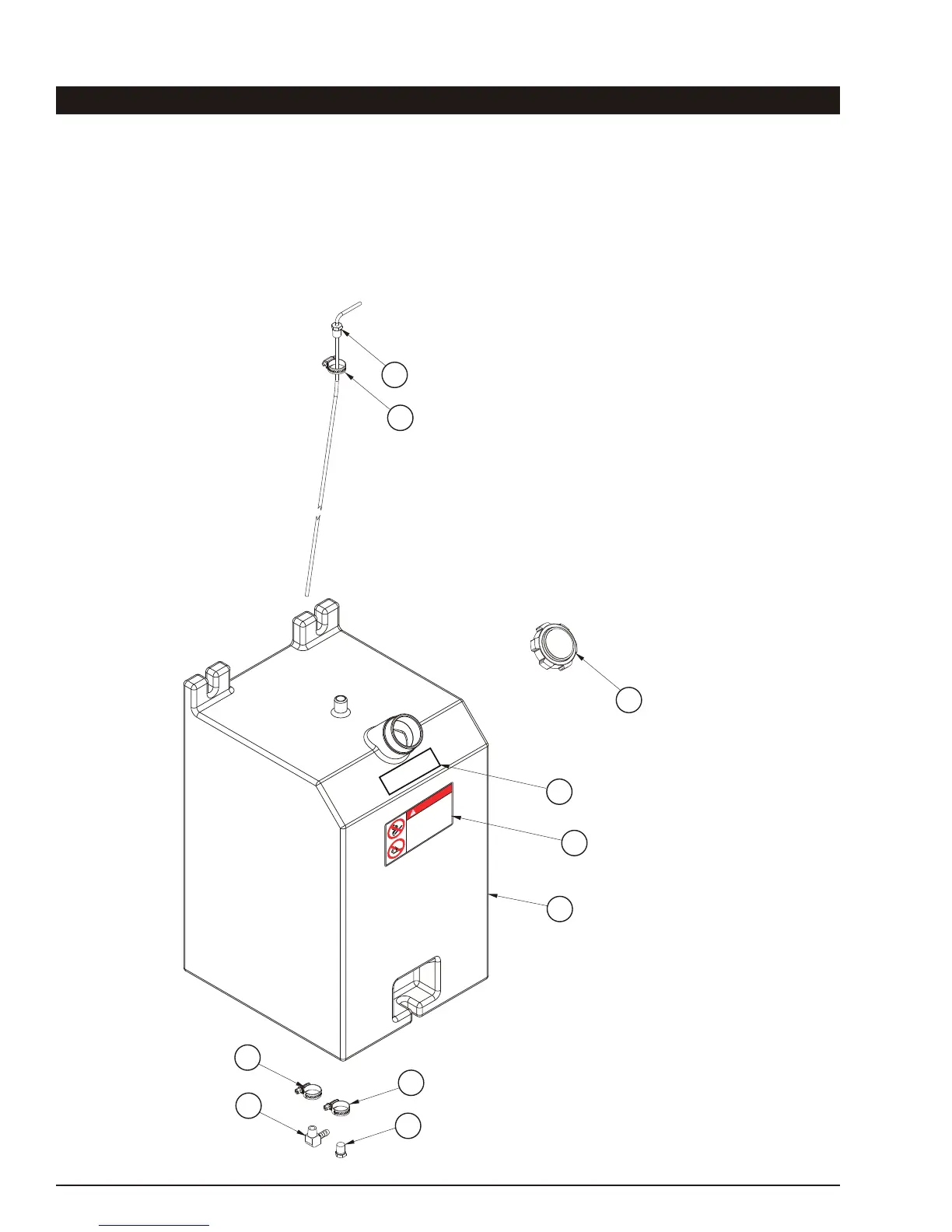

Fuel tank assembly, diesel fuel
Item Part No Qty Description
1. 3618-11 3 Hose clamp, 11-12mm, ZP
2. 13106-1 1 Fuel tank
3. 13108-04 1 Plug, 1/4" NPTM
4. 13109 1 Fuel return weld
5. 605256 1 Cap, vented
6. 967309 1 Male elbow, 5/16" x 1/4", BSPT
7. 605726 1 Decal, Diesel fuel only
8. 476706 1 Decal, Danger explosive fumes
page 1 - 28 Rev D SR3370 & SR2770 – 13184B
Fuel tank assembly, diesel fuel
D
ANGER
Death or serious injury might result from fire or explosion.
EXPLOSIVE FUMES
4
7
6
7
0
6
D
I
E
S
EL
F
U
E
L
O
N
L
Y
6
0
5
7
2
6
1
1
1
3
5
8
7
2
4
6
