Snorkel S3370BE - Fuel Gauge Option

Fuel gauge option
Item Part No Qty Description
0. 11507 1 Fuel gauge option
1. 11430-9 1 Top plate fuel tank
2. 0070483 1 Fuel gauge
3. 11430-5 1 Gasket
4. 11430-1 1 Base plate weld
5. 3611-06 10 Nylock nut
SR3370 & SR2770 – 13184B Rev D page 4 - 5

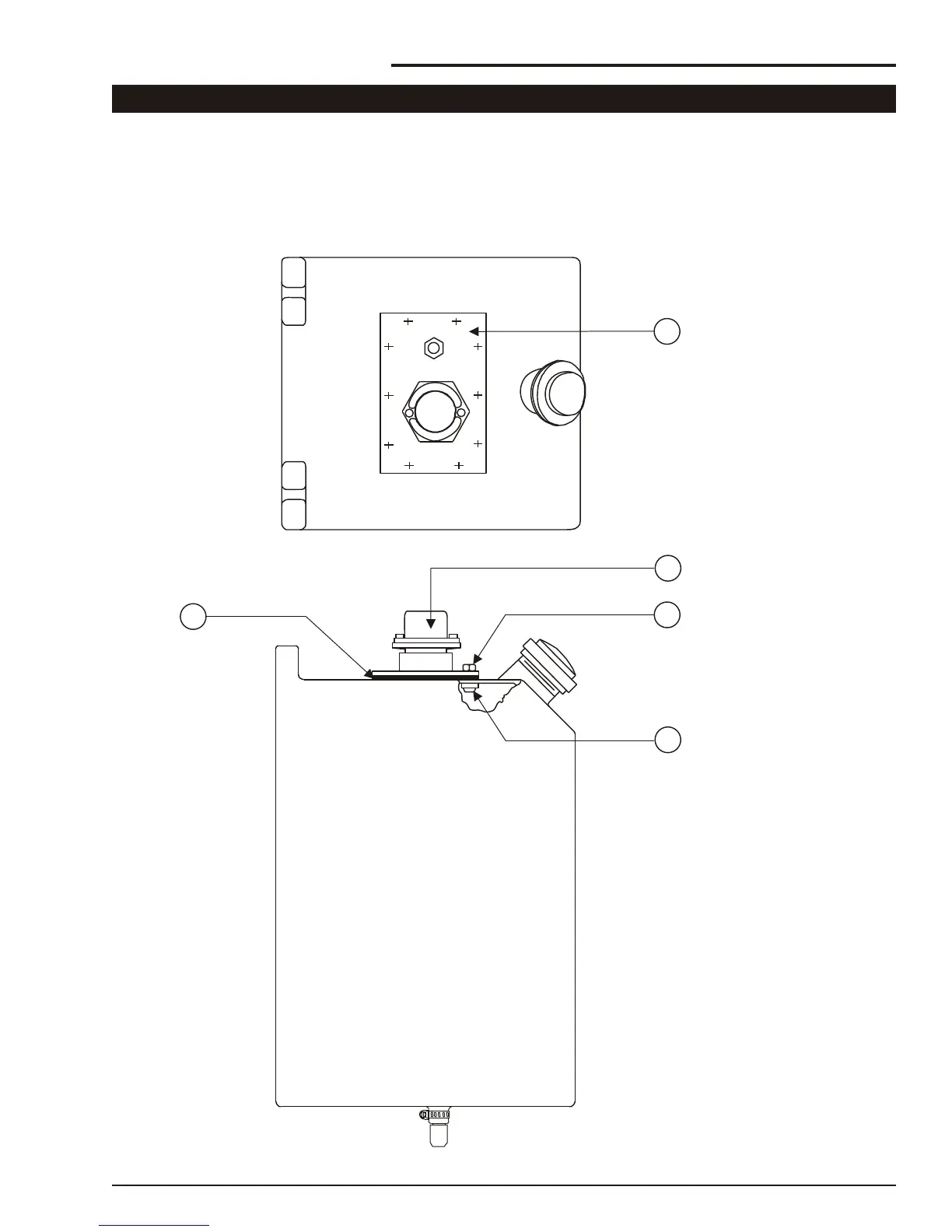

Fuel gauge option
4
5
2
3
1
