SF2300 Technical Manual
Page 12

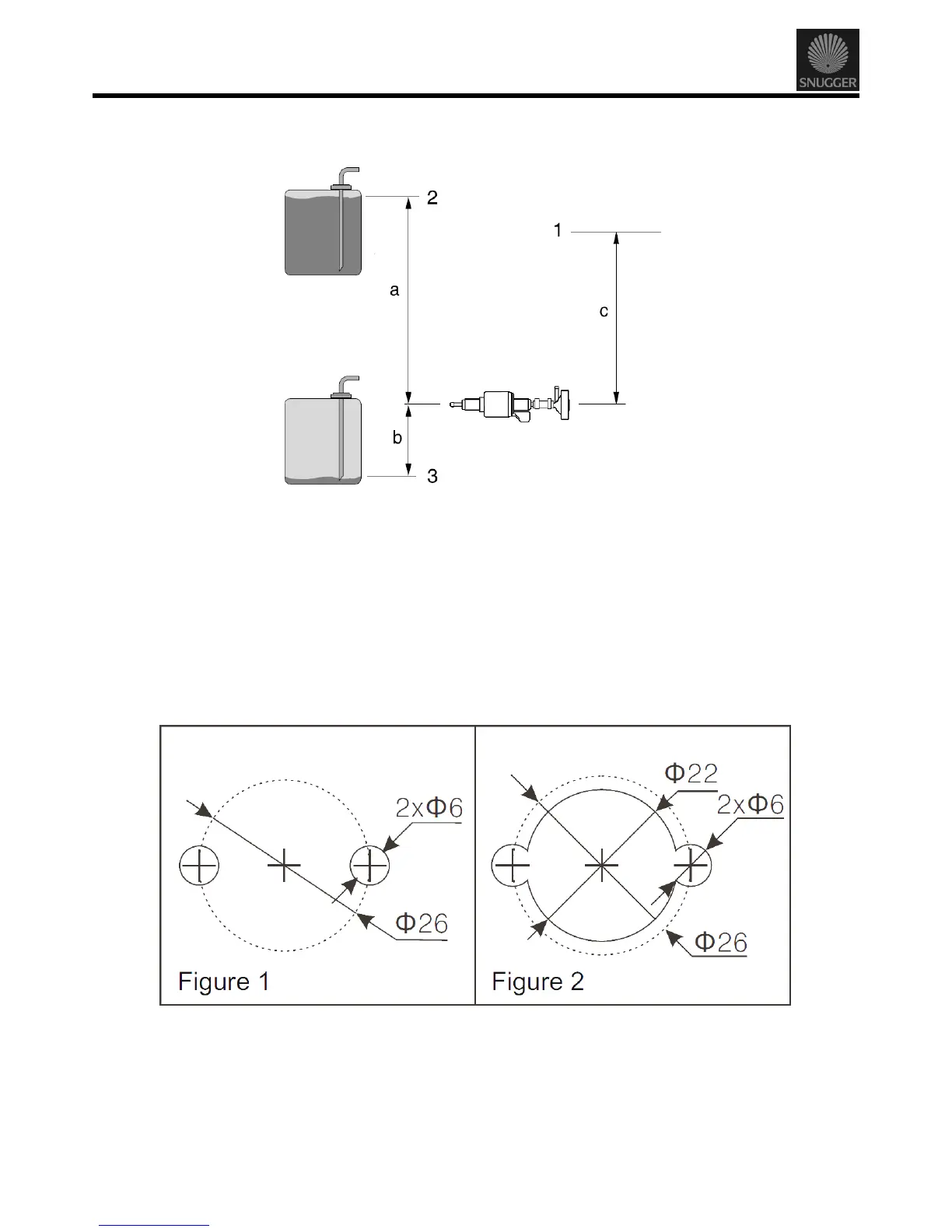

Maximum suction and pressure height
Maximum height from fuel pump to maximum fuel level – a = 3.6m (12')
Maximum suction height from bottom of fuel pick up pipe – b = 1.2m (3.9')
Maximum heater height – c = 3m (10')
1 - Connection to heater, 2 - Maximum fuel level, 3 - Minimum fuel level
Fuel Pickup Pipe Installation
First, drill 2 - 6mm (0.25") at 26mm (1.02") O.C. holes in appropriate location in top of fuel tank as shown in
Figure 1 below. Then Drill a 22mm (0.87") hole as shown in Figure 2 below.
Please Note:
Prevent shavings and any other debris from falling into the fuel tank.
Safety Warning
When drilling into the fuel tank, take precautions to prevent possible sparks from electric tools (ground all
tools).
