SF2300 Technical Manual
Page 7

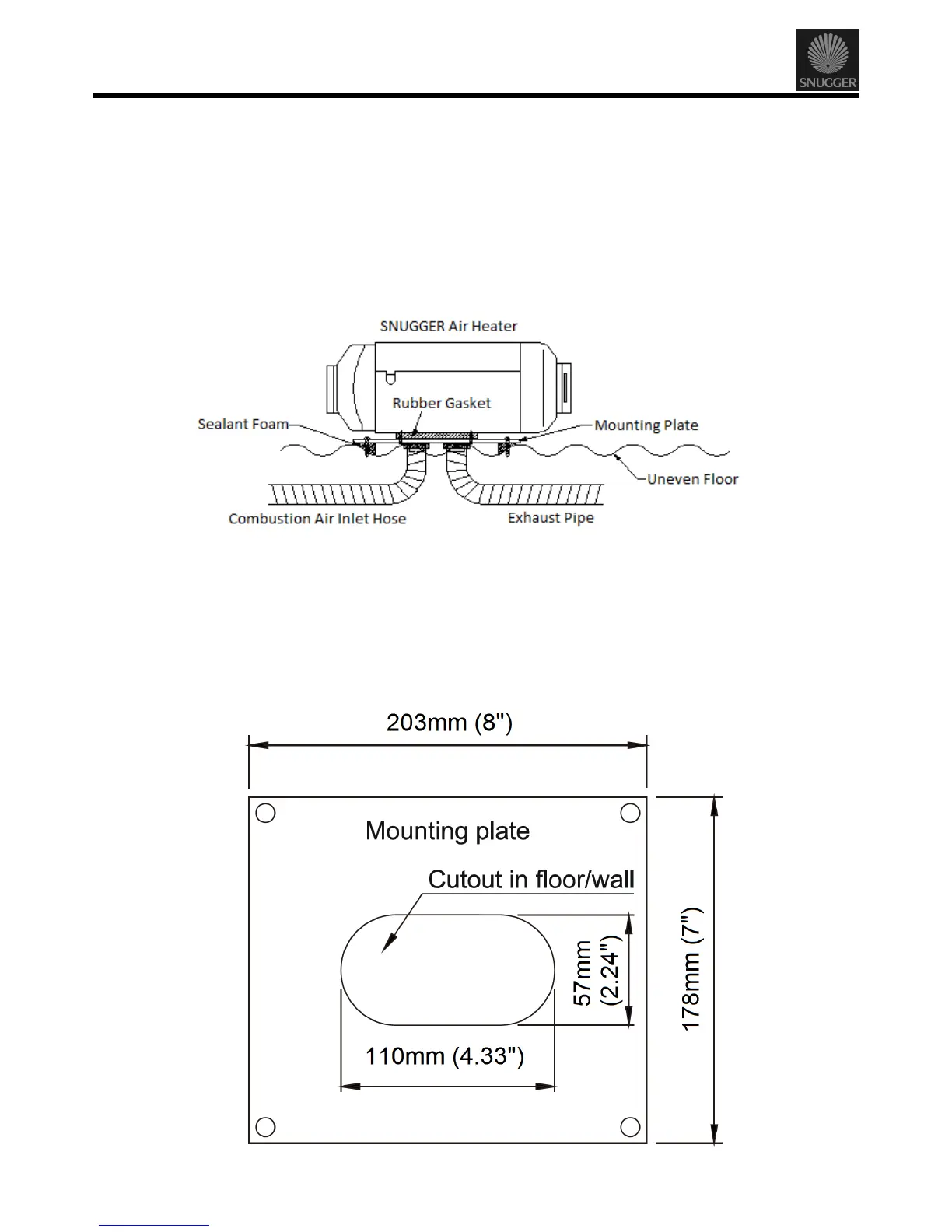

Mounting heater on the floor or wall using mounting plate
If the mounting surface is not smooth and even the mounting plate with the foam sealant must be used to
insure a proper seal between the interior and exterior of the heated area. When using the mounting plate
the sealant foam must always be used.
The rubber gasket on the bottom of the heater must always be used whether mounting the heater with or
without the mounting plate.
When using mounting plate cut out a hole in the floor or wall with the dimensions below or use a hole saw
and drill a 4.5 inch diameter hole instead.
To find the center point for cutting the hole use the mounting plate as a template and mark each of the corner
mounting holes and then draw an X between them to mark the center.
