SF2300 Technical Manual

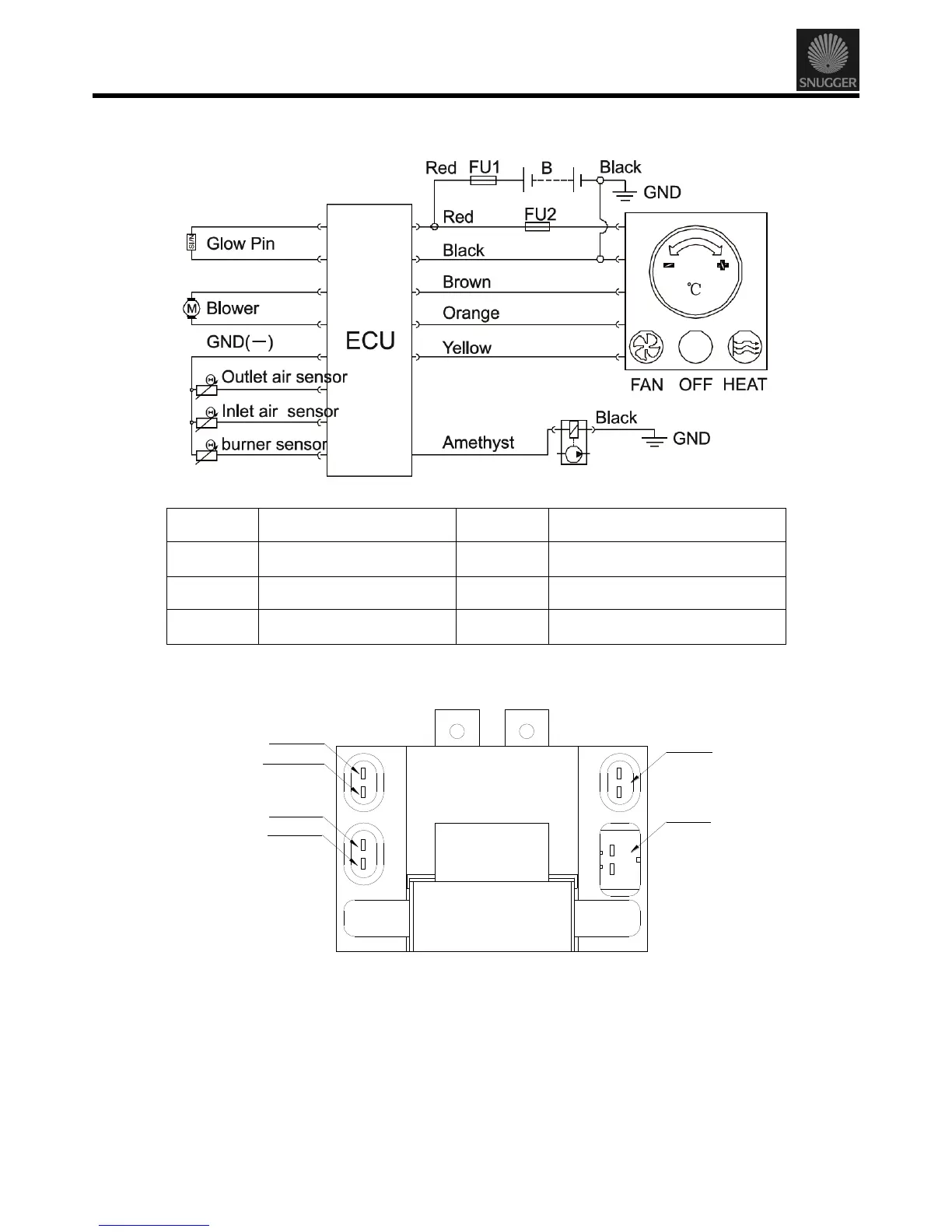

Page 14
Electrical Diagram
Wire color
Function
Wire color
Function
Red
DC 12V/24V ()
Brown
line of communication A
Black
GND ()
Orange
line of communication B
Yellow
Starting line
Amethyst
Fuel pump line ()
Control Unit
glow pin
blower
GND(-)
Inlet air sensor
burner sensor
outlet air sensor
Operating Instructions
Before starting the heater, perform a safety check: all components must be firmly fastened, check for fuel
leaks.
To start the heater; turn the control knob to “high” (turn the knob clockwise), push heat button, the blower
motor will start running. After about 1 minute the fuel pump will start pumping the fuel. If the fuel is not
ignited in a short period of time the glow pin will turn off for about 1 minute and then it will start the process
again. Upon initial startup the heater may require several start attempts to bleed air out of the fuel lines.
