SF2300 Technical Manual
Page 17

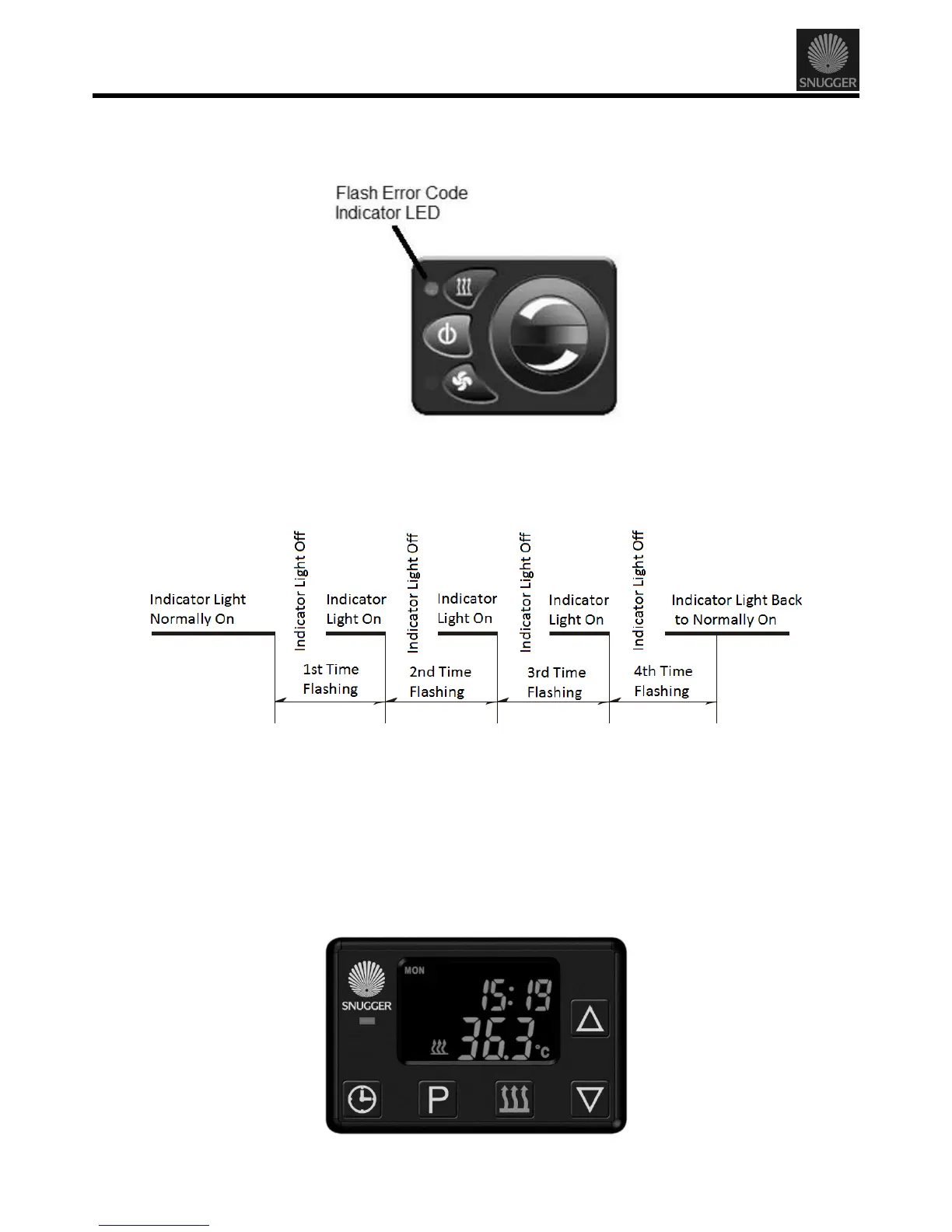

Mini Controller Error Code
On the mini controller the light noted below will start flashing if there is an error.
How to Read Flash Error Codes
To understand how to read the flashing error codes refer to the below diagram and instructions.
Since the indicator light that will flash an error code is normally on, every time the light goes out and comes
back on is counted as one flash. The error code is actually counted by the amount of times the light goes
out for a very short period of time. The above diagram would read as a Error Code 4. After the fourth time
the light comes back on it will stay on for a short period of time and then start over and repeat the flash code.
7 Day Timer Error Code - Number Error Code
On the 7 Day Timer the error code will show up on the screen as a number.
