Socket User Manual (V 1.2) 2017/11/06
15

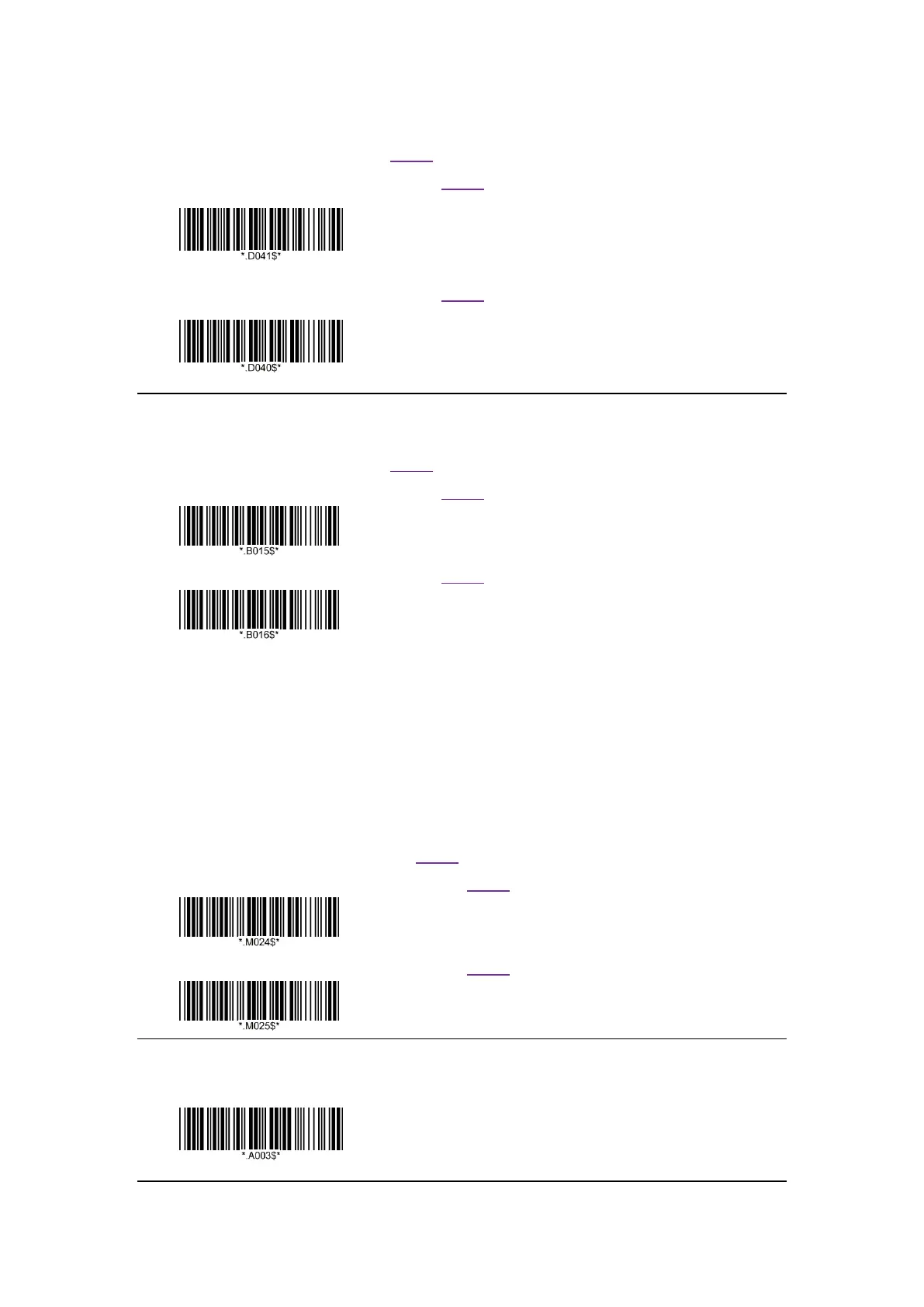

Transmit “No Read” Message (5Eh)
R : 00 00 05 C7 04 00 5E S1 S2
W : 00 00 07 C6 04 00 FF 5E 01 S1 S2
Enable No Read ( for Trigger Mode – Level only )
W : 00 00 07 C6 04 00 FF 5E 00 S1 S2
*Disable No Read
Parameter Scanning (ECh)
R : 00 00 05 C7 04 00 EC S1 S2
W : 00 00 07 C6 04 00 FF EC 01 S1 S2
*Enable Parameter Scanning (Enable Setup Code)
W : 00 00 07 C6 04 00 FF EC 00 S1 S2
Disable Parameter Scanning (Disable Setup Code)
Parameter Pass Through (F1h 71h)
Enable Parameter Pass Through to transmit bar codes in the following format, in Code 128, to the host:
<FNC3>L<any length data>
<FNC3>B<12 characters of data>
Note that the special Code 128 character <FNC3> must appear at the beginning of this data. However, if the
appropriate data does not follow this as shown above, it does not transmit to the host device.
R : 00 00 06 C7 04 00 F1 71 S1 S2
W : 00 00 08 C6 04 00 FF F1 71 01 S1 S2
Enable Parameter Pass Through (For Code-128 only)
W : 00 00 08 C6 04 00 FF F1 71 00 S1 S2
*Disable Parameter Pass Through (For Code-128 only)
Disable All Symbologies
Disable All Symbologies
