ATYS D10 / D20 - 542359B - SOCOMEC

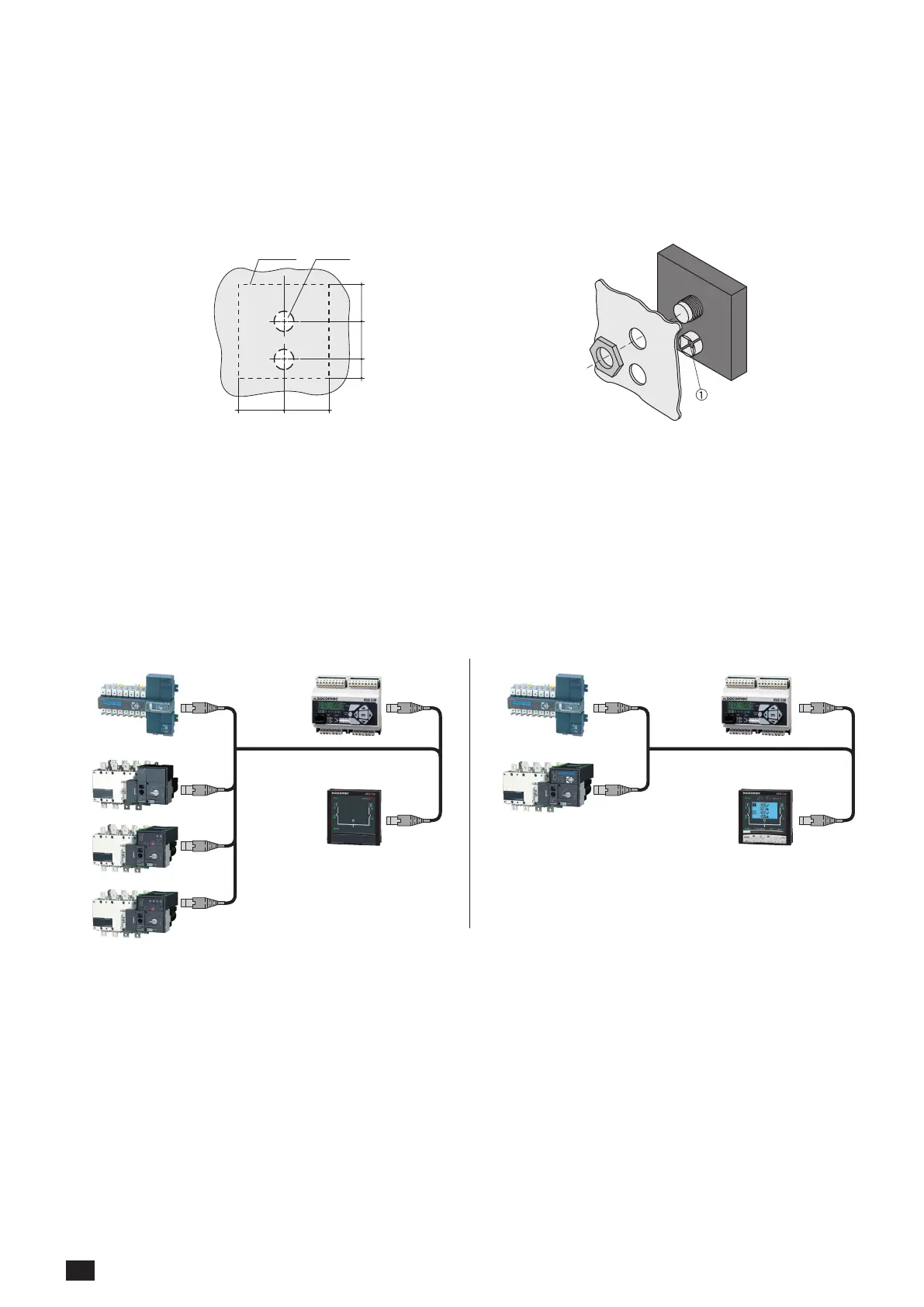

3. Installation
3.1. Mounting
Door xing / 2 holes, diameter 22.5 mm
Maximum thickness of the door: 20 mm
ATYS 147 B
(1) RJ45 plug for ATyS connection
ATYS 161 A 1 X CAT
Drillings
3.2. Connection
Connect only to products of type ATyS C30, ATyS M6e, ATyS d, ATyS t, ATyS g et ATyS p.
(Compatible with the old ATyS range 6e and ATyS 6m).
> Cable
RJ45 8 wire straight-through, non isolated cable. Cable length: ≤ 3m. Ref.: 1599 2009.
> Maximum length of the connection cable: 3 m
RJ45 type
RJ45 type
ATyS M6e ATyS M6eATyS C30 ATyS C30
ATyS D10 ATyS D20
ATyS d ATyS p
ATyS t
ATyS g
3.3. Characteristics
> IP
IP21 standard
IP54 using gasket
> Operation
Temperature: -10 to + 55 °C
Hygrometry: 80 % humidity at 55 °C
95 % humidity at 40 °C
