6

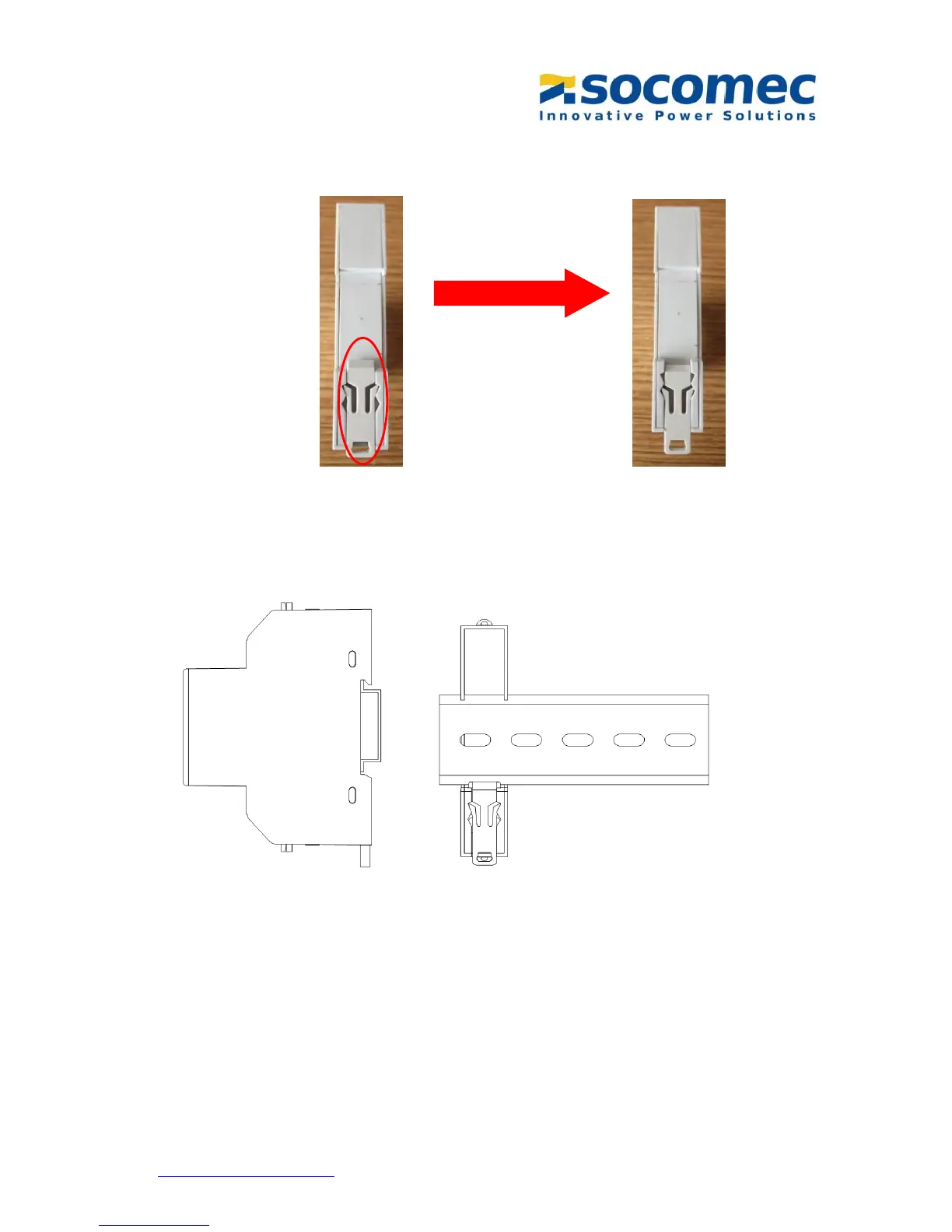

Fig.1 Fig.2
7.3 Install the meter onto the DIN Rail, then push the DIN Rail Clip of the meter to fix the meter
See details in below Fig. 3 and Fig.4
Fig.3 Fig.4
7.4 Do the connection according to the wiring diagram.
7.5 After connection, seal the terminal covers by the seal wires.
