5
If the RS485 communication converter doesn’t have G port, no need to connect.
For Neutral wire, you can connect one N port and connect both.

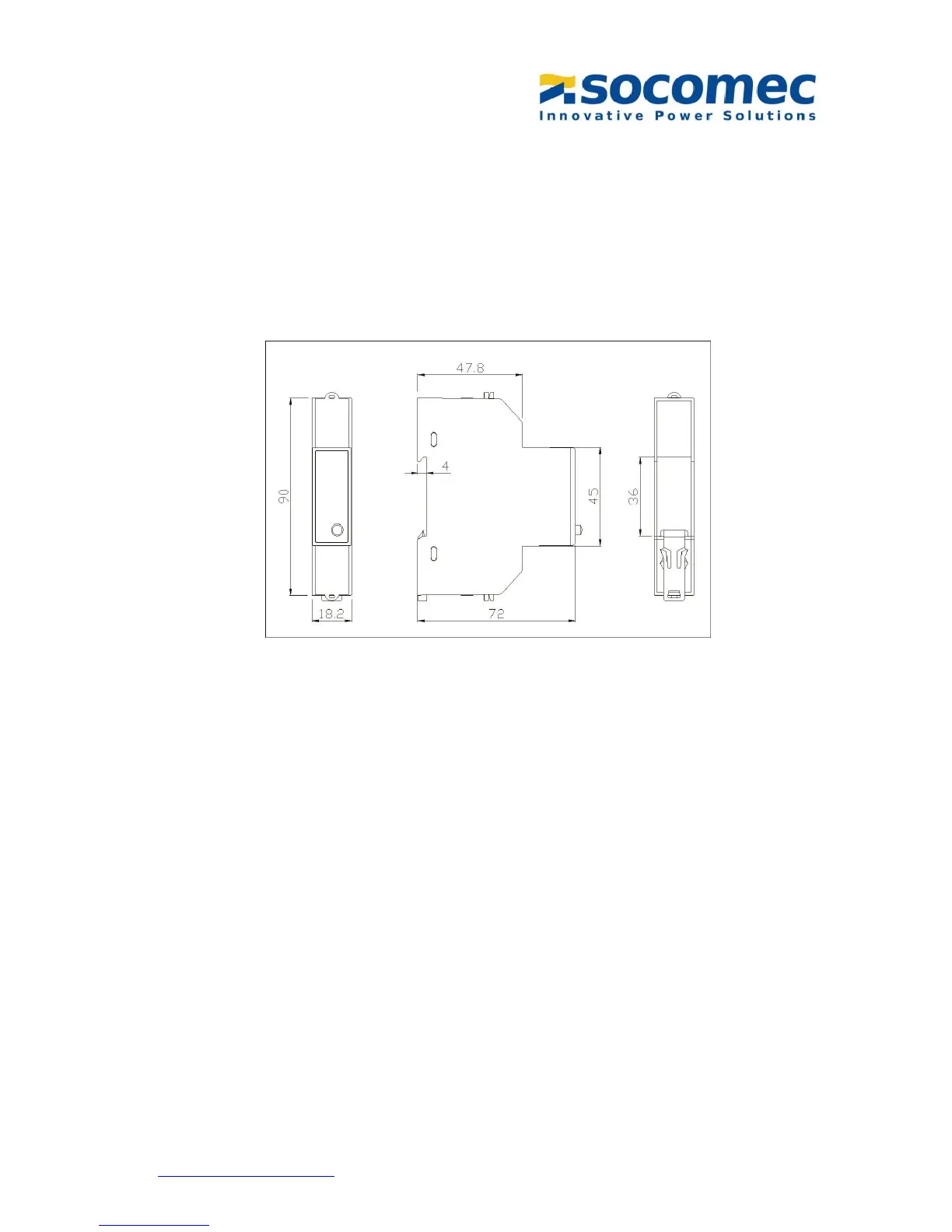

6. Dimensions
Height 95.3 mm
Width 18.2 mm
Depth 72 mm
Weight 0.1 kg（N.W.）
7. Installation Instruction
7.1 Select 35 mm Standard DIN Rail and fix it.
7.2 Push the DIN Rail Clip, see details in Fig.1 and Fig. 2
