SOFAR 3.3~12KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
- 20 -

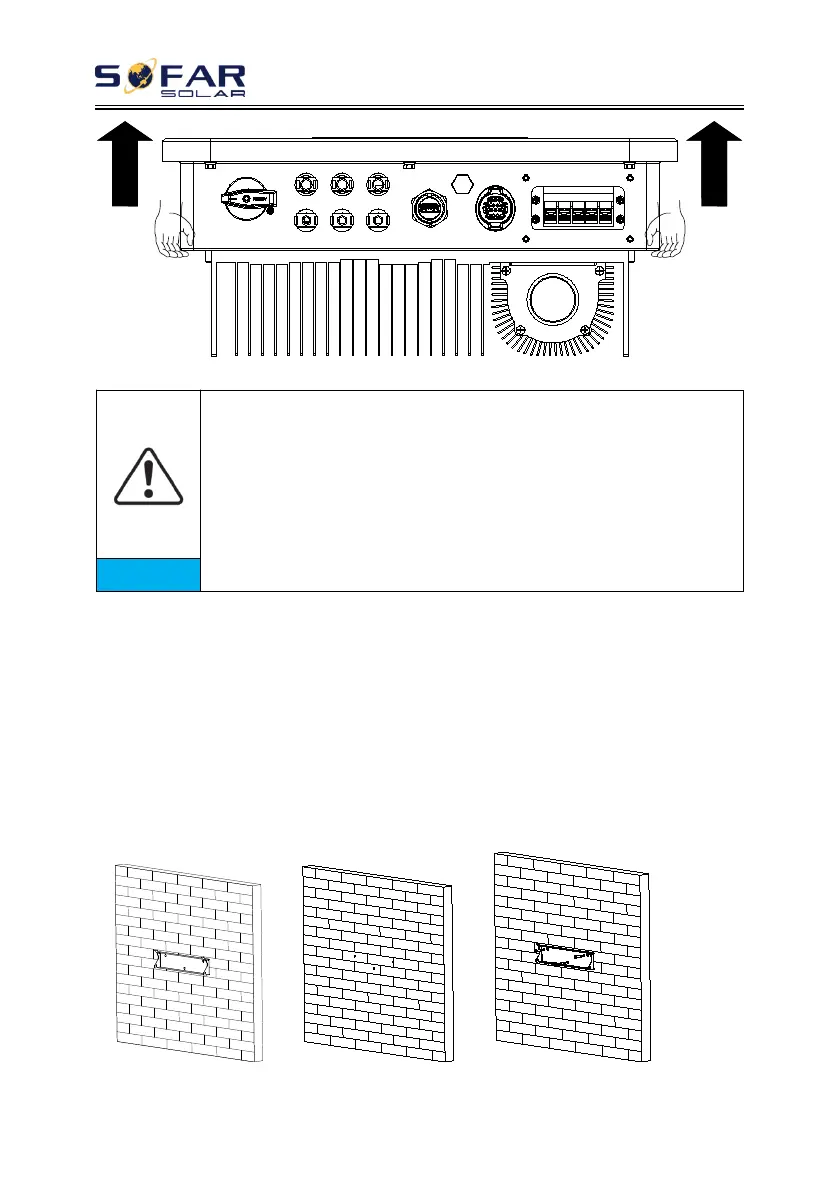

Figure 3-6 Move inverter from package (2)
Inverter is heavy, attention to keep the balance when lift the
inverter. Dropped while being transported may cause injuries.
Do not put the inverter with wiring terminals contacting the
floor because the power ports and signal ports are not designed
to support the weight of the inverter
When place inverter on the floor, put it above foam or paper to
avoid the damage of the shell of inverter.
Attention
3.6. Installation
Step 1: Placed the rear panel on the mounting wall, determine the mounting
height of the bracket and mark the mounting poles accordingly. Drilling holes by
using Hammer Drill, keep the hammer drill perpendicular to the wall and make
sure the position of the holes should be suitable for the expansion bolts.
Step 2: Align the rear panel with the hole position, and drive the M6 expansion
bolt in.
Step 3: Fix the rear panels on the wall by tightening the M6*80 Hexagon screws
Figure 3-7 Installation instruction (1)
