SOFAR 25~50KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
- 8 -
batteries will against the warranty condition and SOFARSOLAR will not take the
responsibility.
Intended grid types
SOFAR25~50KTLX-G3 configurations.For the TT type of electricity grid
，
the voltage
between neutral and earth should be less than 30V. inverters are compatible with
TN-S, TN-C, TN-C-S, TT, IT grid.

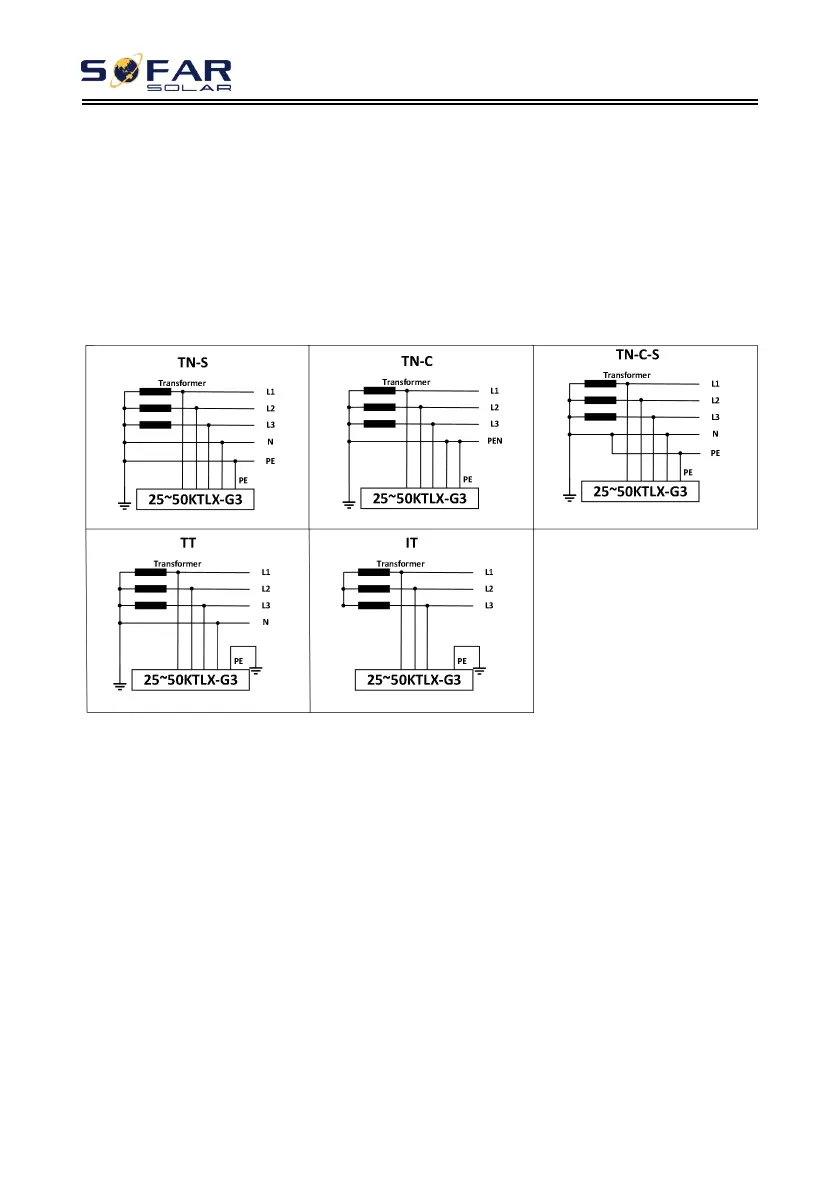

Figure2-2 Overview of the grid configurations
Product Dimensions
The choice of optional parts of inverter should be made by a qualified technician
who knows the installation conditions clearly.
Dimensions Description
 SOFAR
25KTLX-G3,30KTLX-G3,30KTLX-G3-A,33KTLX-G3,36KTLX-G3,40KTLX-G3,45KTLX-G3,
50KTLX-G3,40KTLX-G3-HV,50KTLX-G3-HV
L
×
W
×
H=585*480*220mm
