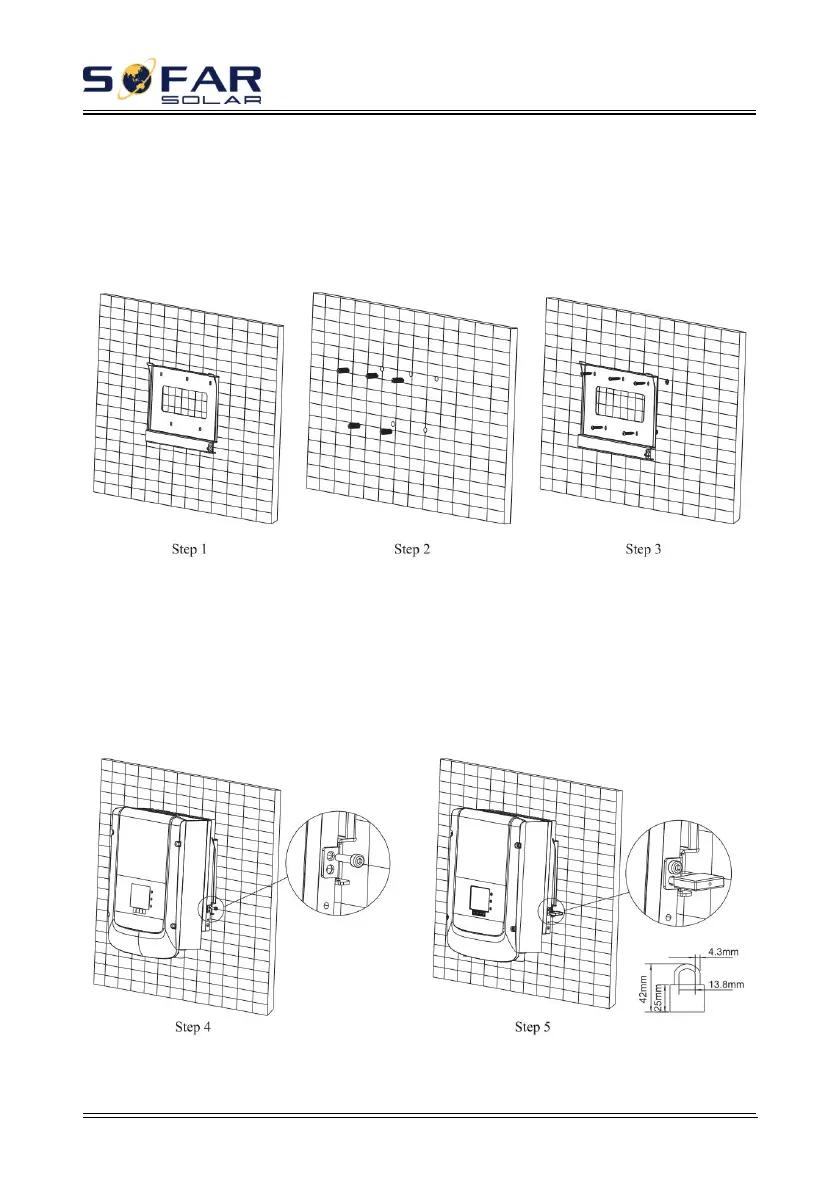

Step 2 Insert the expansion bolt vertically into the hole, pay attention to the
insertion depth of the expanding bolt (should be deep enough).
Step 3 Align the rear panel with hole positions, fix the rear panel on the wall
by tightening the expansion bolt with the nuts.
Figure 3-5
Step 4 Hook the inverter to the rear panel. Using an M5 screw to secure the
inverter to the rear panel to ensure safety.
Step 5 You can secure the inverter to the rear panel and protect if from
stealing by installing an anti-theft lock (this action is optional).
Figure 3-6
