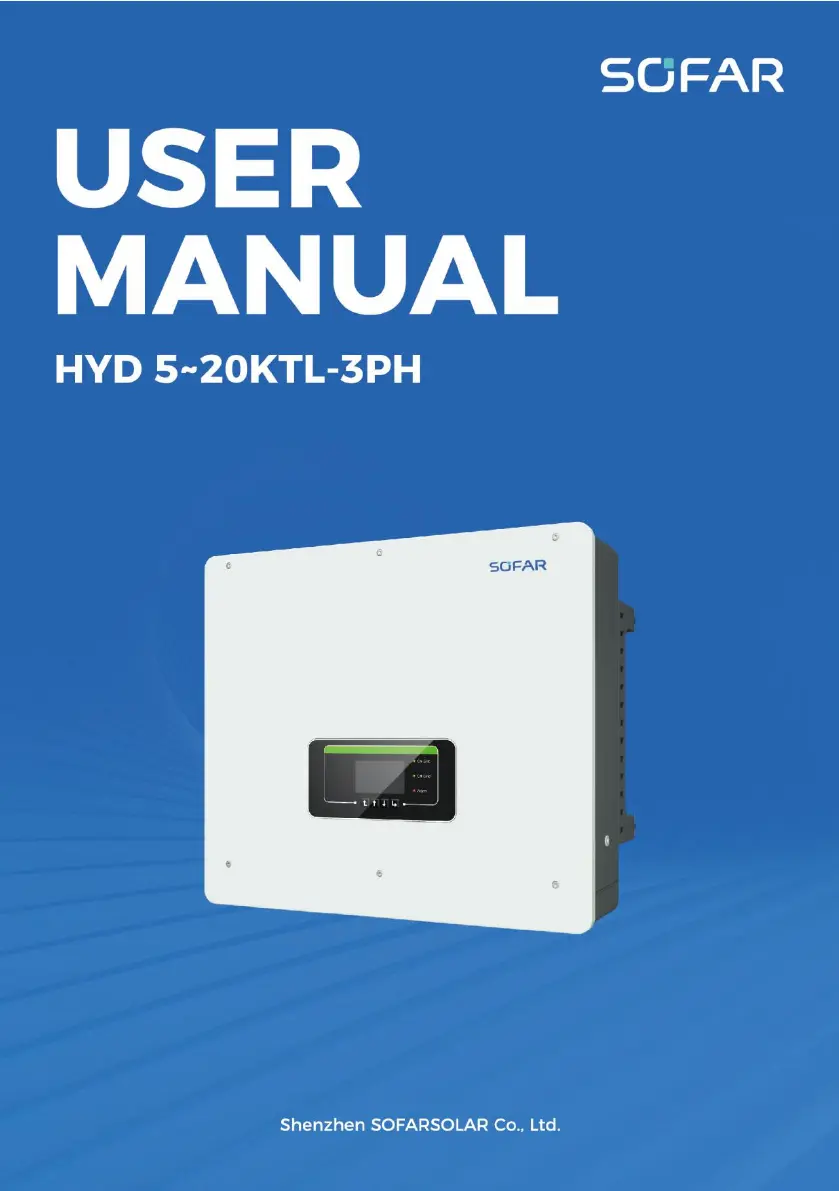

HYD 5/6/8/10/15/20KTL-3PH USER MANUAL

Table of Contents

Questions and Answers

  • C
    cnormanAug 16, 2025
    Why does my Sofar HYD 5KTL-3PH Inverter show a GridOVP error?
    • R
      Rhonda PatrickAug 16, 2025
      If the Sofar Inverter shows a GridOVP error occasionally, it might be due to temporary grid abnormalities. The inverter should automatically resume normal operation once the grid stabilizes. However, if the GridOVP alarm occurs frequently, verify that the grid voltage and frequency are within the specified range. Also, check the AC circuit breaker and AC wiring of the inverter. If the grid voltage/frequency is outside the acceptable range and the AC wiring is correct, contact technical support to adjust the over-voltage and under-voltage protection settings after getting approval from your local electrical grid operator.
  • T
    Timothy RobertsonAug 19, 2025
    How to fix Sofar Inverter OverTempDerating error?
    • J
      Jessica HesterAug 19, 2025
      If your Sofar Inverter displays an OverTempDerating error, it means the inverter's temperature is too high, causing it to reduce its output. Ensure the inverter is installed in a cool, well-ventilated area, away from direct sunlight. Also, verify that the inverter is mounted vertically and that the ambient temperature is below the inverter's maximum temperature limit.
  • K
    Kimberly HerreraAug 22, 2025
    What to do if Sofar Inverter shows BMS OVP error?
    • R
      Ryan StanleyAug 22, 2025
      If your Sofar Inverter displays a BMS OVP error, it indicates an overvoltage alarm from the connected lithium battery. To resolve this, switch off both the inverter and the lithium battery. Wait for 5 minutes, and then switch them back on. If the error continues, contact technical support for further assistance.
  • D
    Diamond RamirezAug 25, 2025
    How to troubleshoot a TempErrBat error on a Sofar HYD 5KTL-3PH?
    • G
      Gregory HoustonAug 26, 2025
      If your Sofar Inverter is showing a TempErrBat error, and you are using an Inner BMS battery, check that the battery NTC cable is properly connected. Ensure that the inverter is installed in a location without direct sunlight, is well-ventilated, and maintains an ambient temperature below the inverter's temperature limit. The inverter should also be mounted vertically.
  • T
    Troy TrujilloAug 28, 2025
    What to do if Sofar HYD 5KTL-3PH Inverter displays InvVoltFault error?
    • T
      Thomas WoodardAug 28, 2025
      If your Sofar Inverter displays an InvVoltFault error, this indicates an inverter overvoltage. Turn off the inverter, wait for 5 minutes, and then turn it back on. If the problem persists, it indicates an internal fault, and you should contact technical support.
  • L
    Lauren RayAug 30, 2025
    What does GFCI error mean on Sofar Inverter?
    • M
      Mr. David Frye DVMAug 30, 2025
      If your Sofar Inverter displays a GFCI error, it indicates a charge leakage fault. You should check the inverter and its wiring for any issues.
  • L
    leonjosephSep 3, 2025
    How to fix IsoFault error on Sofar Inverter?
    • R
      Roberto GuzmanSep 3, 2025
      If your Sofar Inverter shows an IsoFault error, it means the insulation resistance is too low. Check the insulation resistance between the photovoltaic array and ground. If there is a short circuit, repair the fault immediately.
  • B
    Brett MccarthySep 6, 2025
    What causes BMS OTP error on Sofar Inverter?
    • S
      stephen84Sep 6, 2025
      If your Sofar Inverter displays a BMS OTP error, it indicates a high temperature warning from the BMS. Switch off the inverter and the lithium battery, wait 5 minutes and then switch the components on again. If the error persists, contact technical support.
  • T
    terrimunozSep 9, 2025
    How to resolve a serial number fault on a Sofar Inverter?
    • D
      Debra CastilloSep 9, 2025
      If your Sofar Inverter displays a Serial number fault, turn off the inverter, wait for 5 minutes, and then turn it back on. If the problem persists, contact technical support.
  • A
    Ann MartinezSep 12, 2025
    What does InputConfigError mean on Sofar Inverter?
    • W
      William PowellSep 12, 2025
      If your Sofar Inverter displays an InputConfigError, it means there's an incorrect input mode configuration. Check the inverter's input mode settings (parallel/independent mode) and change the input mode if it is incorrect.

Summary

About this manual

Safety Symbols

Explains safety symbols and their meanings.

Basic Safety Information

Safety Guidelines

General safety guidelines for installation and operation.

Symbols and Signs

Explains CAUTION, ATTENTION, WARNING signs.

Inverter Symbols

Details various safety symbols found on the inverter.

Product Features

Functional Features

Application Modes

Connecting BTS 5 K Batteries

Guide for connecting SOFAR's BTS 5K battery system.

Installation

Installation Information

Crucial safety information before installation.

Installation Procedure

Connections

Environment Requirements

Installation Location

Inverter Installation

Detailed steps for mounting the inverter to the wall.

Electrical Connections

Safety Instructions

Critical safety warnings for electrical connections.

System Electrical Topology

Smart Meter; CT

Electrical Connection Steps

Connecting PE Cables

DC Line Connections

Guide for connecting DC cables for PV and battery.

AC Power Cable Connection

Instructions for connecting AC power cables.

AC Connector Installation

Communication Interfaces

Smart Meter Connection

BMS Connection

CT Interface

Link Port

Feed-in Limit Function

How to limit power fed back to the grid.

System Monitoring

WiFi;Ethernet Stick

WiFi;Ethernet Stick Installation

WiFi Stick Web Configuration

WiFi Stick App Setup

Ethernet Stick Setup

Commissioning the Inverter

Safety Test

Pre-commissioning safety checks.

Double Check

Verifying installation and wiring before operation.

Starting the Inverter

Step-by-step guide to powering on the inverter.

Initial Setup

Setting essential parameters before inverter operation.

SOFAR App Setup

Using the SOFAR app for setup and configuration.

Operation of the Device

Control Panel & Display Field

Standard Display

Energy Storage Modes

Firmware Update

Detailed steps for updating the inverter firmware.

Troubleshooting Handling

Troubleshooting Steps

Procedures for diagnosing and resolving problems.

Shutdown Procedure

Steps for safely shutting down the inverter.

Earth Fault Alarm

Error List

Comprehensive list of error codes and solutions.

Sofar HYD 5KTL-3PH Specifications

General IconGeneral
ModelHYD 5KTL-3PH
Rated Power5000W
Input Voltage Range90-450V
Number of MPPT2
Efficiency98.2%
AC Frequency Range50/60Hz
Total Harmonic Distortion (THD)<3%
DC SwitchYes
Protection ClassIP65
CoolingNatural convection
CommunicationRS485, Wi-Fi (Optional)
Weight18kg
Maximum Efficiency98.2%
Frequency Range50/60Hz
Protection LevelIP65
Warranty5 years
Max. Input Current per MPPT11A
Operating Temperature Range-25°C to 60°C
Maximum Input Current per MPP Tracker11A
Humidity Range0-100%
