HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
26
①
Battery connection
②
DC switch
③
PV input terminals
④
AC load connection
⑤
AC grid connection
⑥
USB/WiFi
⑦
DRMs
⑧
Communication connection
⑨
Link port 1
⑩
Link port 0
⑪
Current sensor
connection (CT)
⑫
LCD display
NOTE
 The number of Battery input terminals depends on the
Rated Power:
HYD 5/6/8KTL-3PH 2pcs
HYD 10/15/20KTL-3PH 4pcs
 The number of PV input terminals depends on the
Rated Power:
HYD 5/6/8KTL-3PH 4pcs
HYD 10/15/20KTL-3PH 8pcs
4.5 Tools
Prepare the tools required for the installation and the electrical
connection.

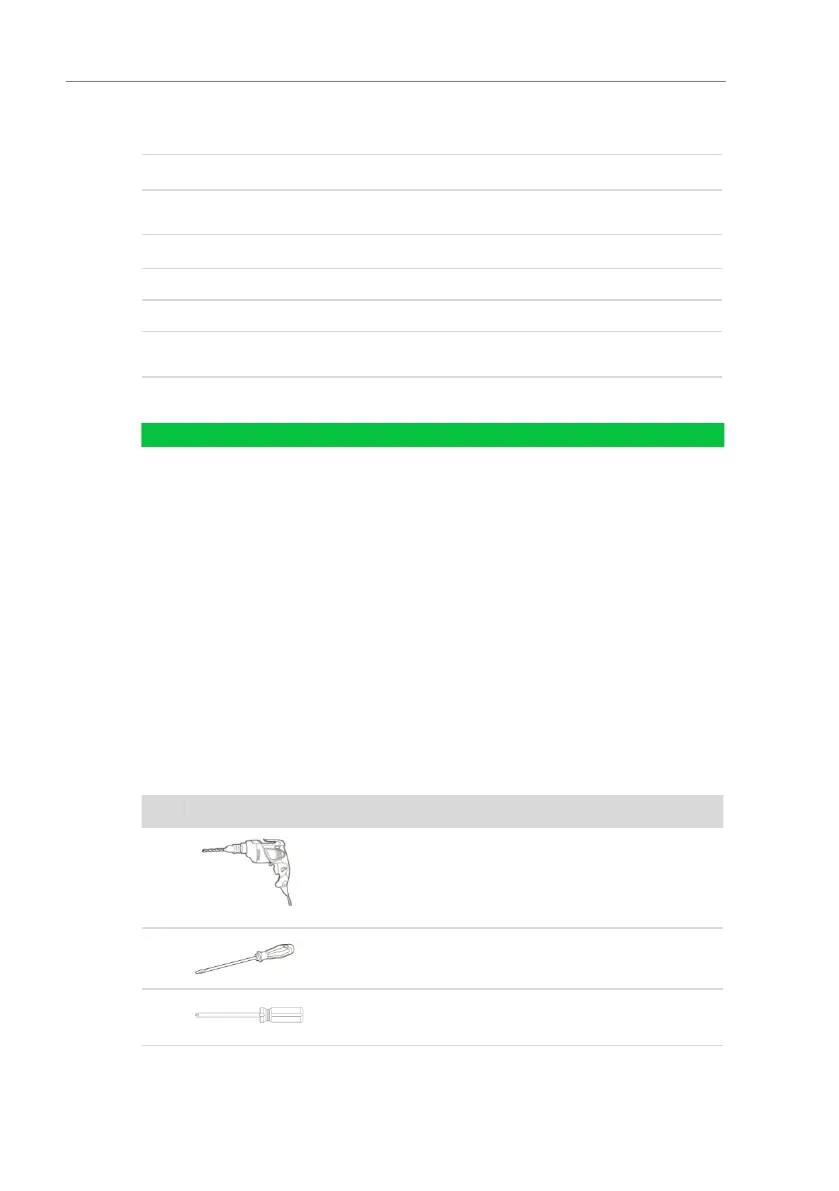

Table. 4-1 Tools required for installation and electrical connections
No.
Tool
Model
Function
01
Hammer drill
Recommended
drill diameter:
8mm
Used to drill holes in
the wall.
02
Screwdriver
Wiring
03
Phillips
screwdriver
Used to remove and
install the screws of
