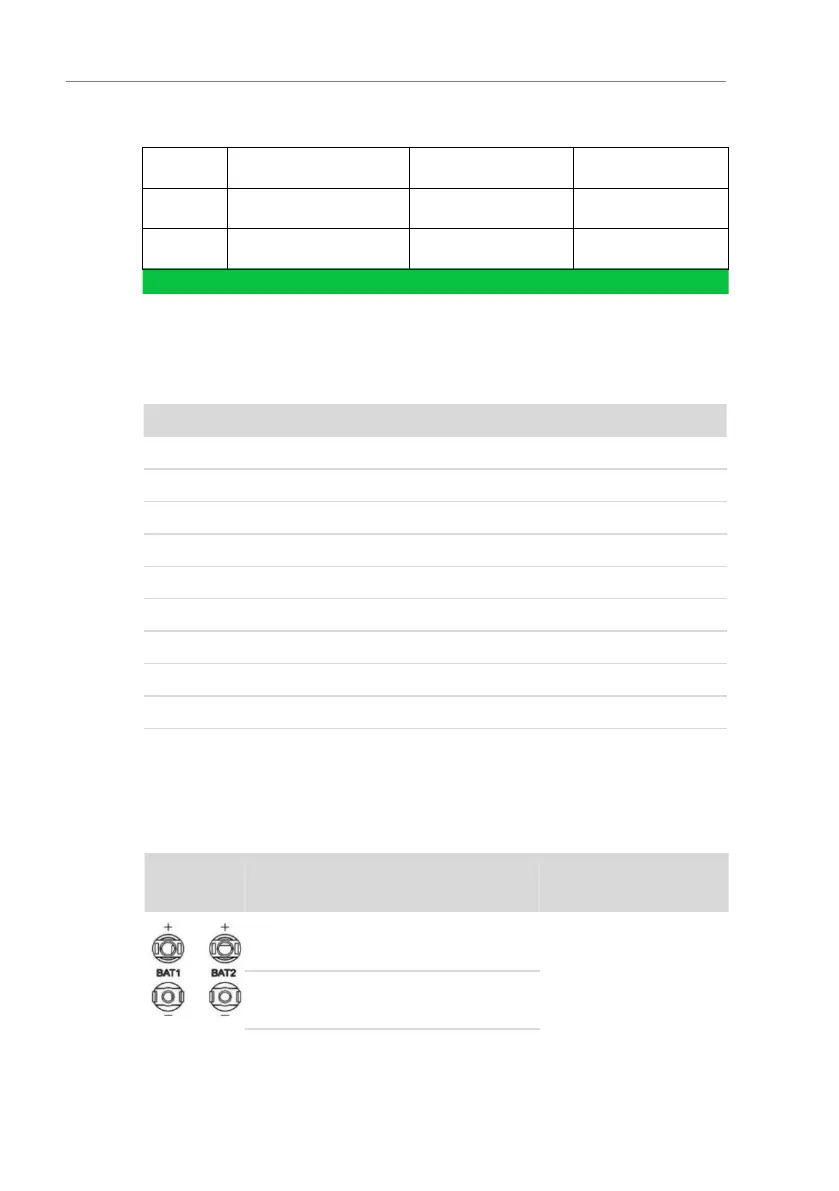

HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
34
A
25(16)
35.4(22.6)
60(35)
B
50(33)
71(46.7)
120(70)
C
1000
4500
1500
NOTE
 The values in brackets apply when the inverter is
installed in a humid environment.
Table. 5-3 The decisive voltage class(DVC)
Interface
DVC
PV input connection
DVCC
AC connection
DVCC
Battery connection
DVCC
Load connection
DVCC
USB/WiFi interface
DVCA
COM interface
DVCA
CT interface
DVCA
DRMs
DVCA
Link port
DVCA
5.2 Wiring overview
Table. 5-4 Cable description
Compone
nt
Description
Recommended cable
type
+ : Connect the positive cable of
the lithium battery
Outdoor multicore
copper cable
(4…6mm²)
- : Connect the negative cable of
the lithium battery
