HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
3.5 Application modes

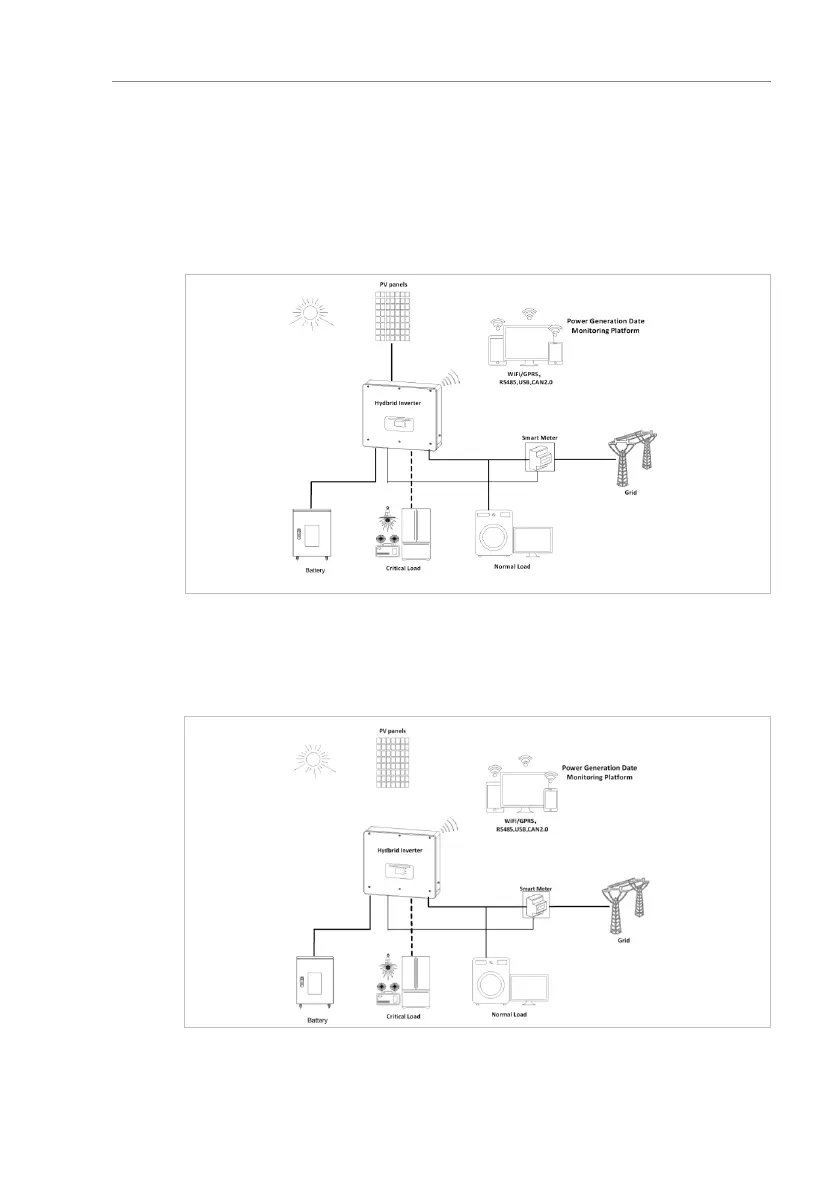

3.5.1 Typical energy storage system
A typical energy storage system with PV panels and battery
unit(s), connected to the grid.
Figure. 3-5 Typical energy storage system
3.5.2 System without PV connection
In this configuration, there are no PV panels connected and the
battery is charged through the grid connection.
Figure. 3-6 System without PV connection
