HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
The AC cable should be correctly dimensioned in order to
ensure that the loss of power in the AC cable is less than 1% of
the rated output. If the AC cable resistance is too high, then the
AC voltage will increase; this may cause the inverter to become
disconnected from the power grid. The relationship between
the leakage power in the AC cable and the cable length, the
cable cross-section, is displayed in the following illustration:

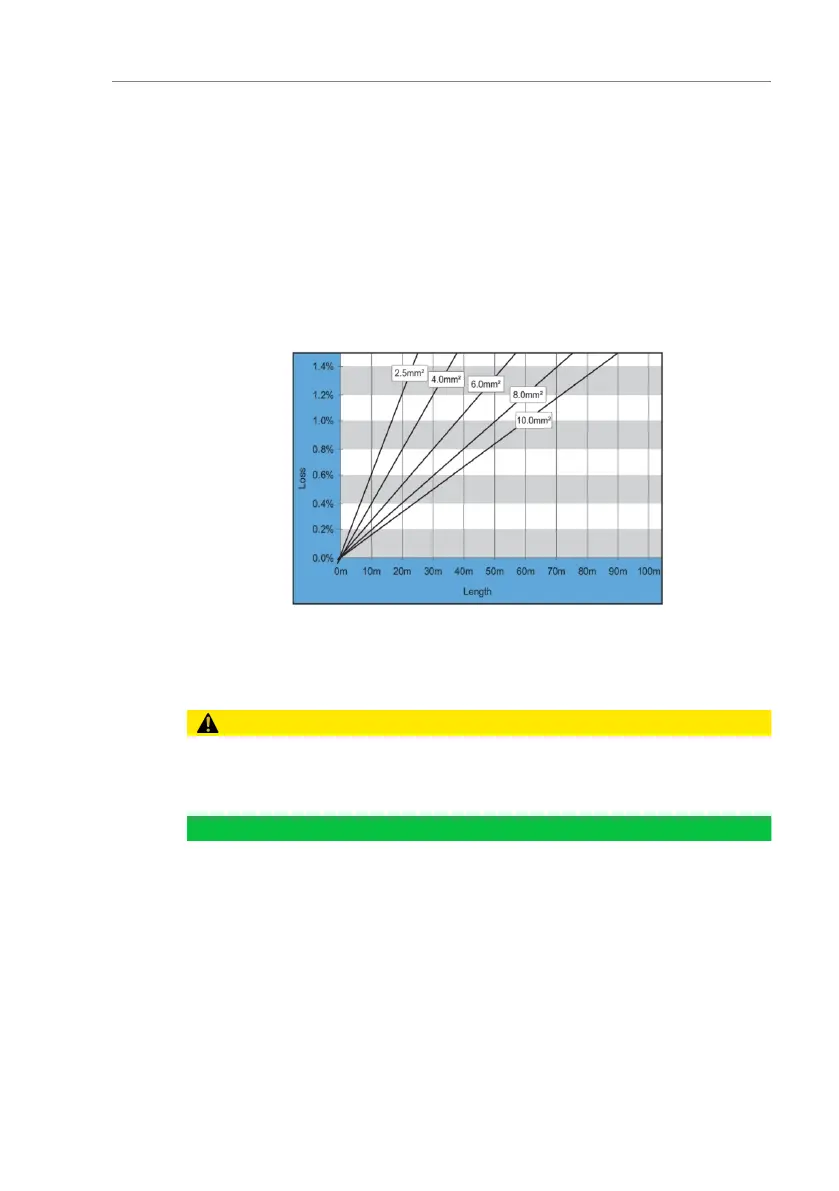

Figure. 5-15 the relationship between
the leakage power and cable length
5.9 AC connector installation
Electrical voltage
Ensure that the grid has been switched off before
removing the AC connector
There are two types of AC connectors,the blue one is
the power grid AC terminal, and the black one is the
load AC terminal.
Please follow below steps to install the AC connector.
1. Select the suitable cable in accordance with above diagram.
Remove the insulating layer of the AC output cable using a
wire stripper and in accordance with the following
illustration:
