HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
50

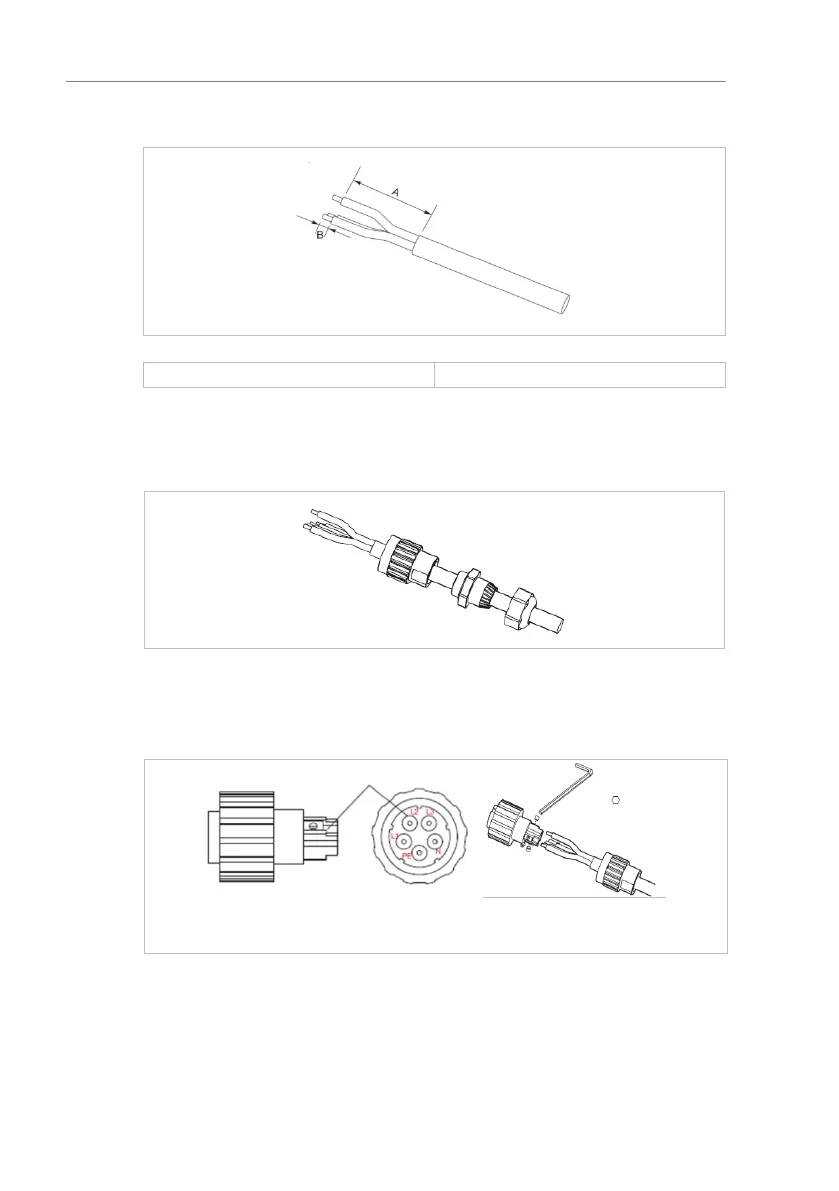

Figure. 5-16 AC connection(a)
A = 30~50 mm
B = 3~5 mm
2. Disassemble the connector in accordance with the
following illustration. Guide the AC output cable through
the cable gland.
Figure. 5-17 AC connection(b)
3. Connect the AC cable in accordance with the following
requirements and tighten the terminal using the Allen key.
Figure. 5-18 AC connection(c)
