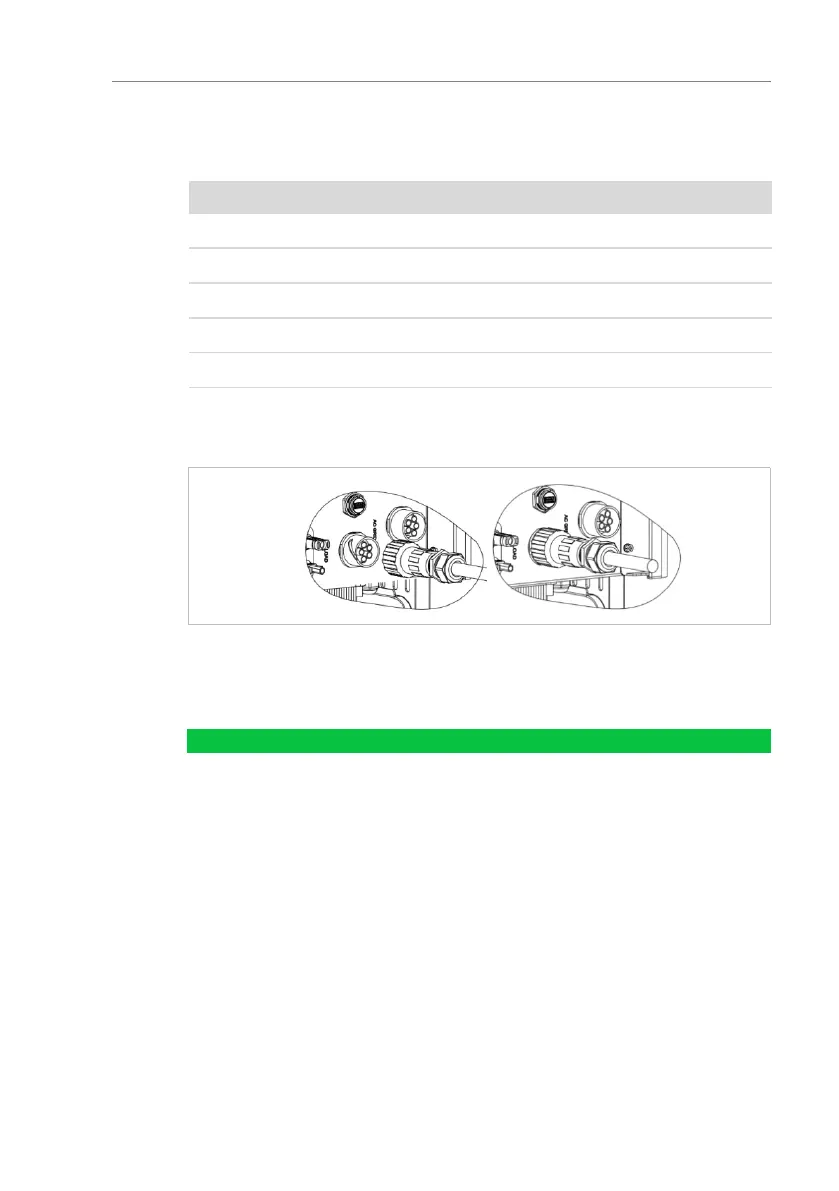

HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
Table. 5-9 AC connection description
Earthing cable (yellow-green)
4. Assemble the connector housing and screw the cable gland
tight.
Figure. 5-19 AC connection(d)
5. Connect the AC connector to the AC connection of the
inverter by turning it clockwise until it locks into place.
Remove the AC connector by turning it anticlockwise.
When you use the meter connection function, make sure
that the AC terminal cable corresponds to the meter
cable one by one( L1, L2, L3, N, and PE cables)
Corresponding to the grid identification of different
regions, L1, L2, L3 correspond to A,B,C or R,S,T or
U,V,W respectively
