HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
Removing the connectors
Danger of DC arcing
Before removing the plus and minus connector, ensure
that the DC switch has been set to OFF.

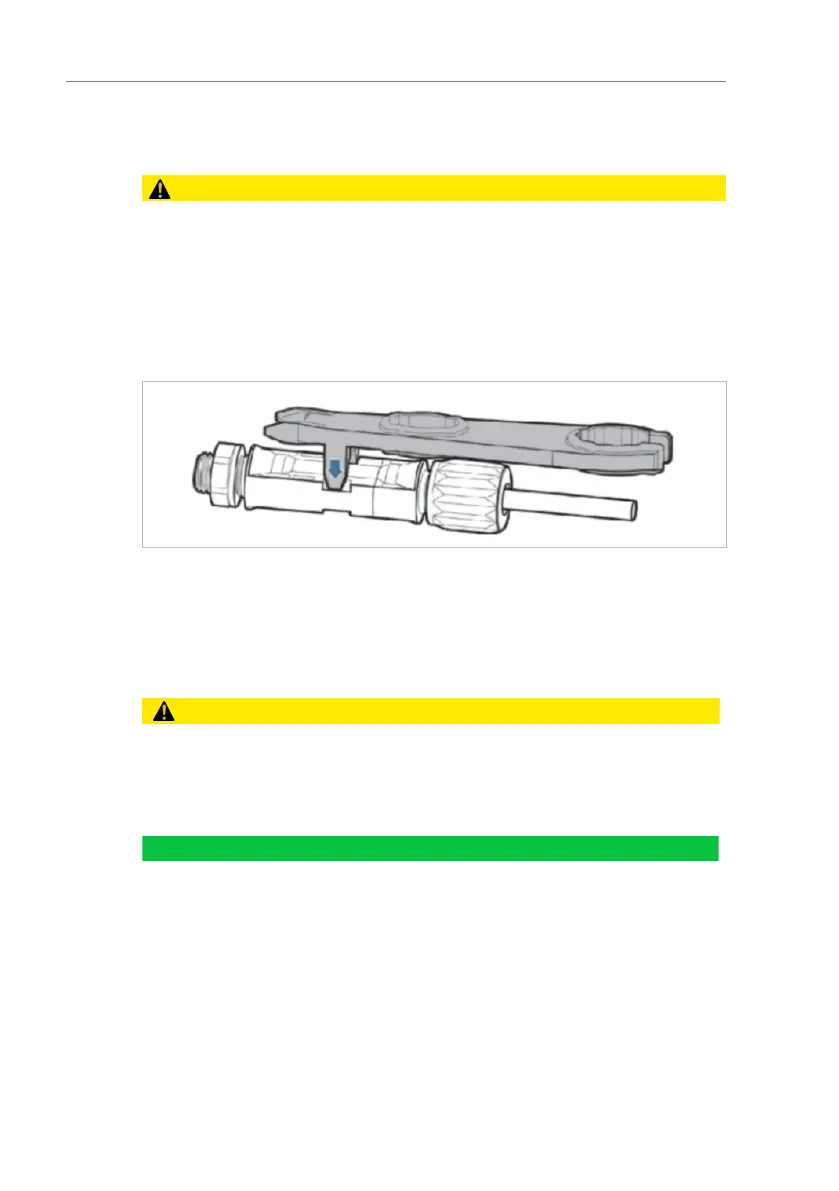

In order to remove the plus and minus connection from the
inverter, insert a removal key into the locking and press on the
key with the adequate force as shown in the following
illustration:
Figure. 5-14 Connecting PV(f)
5.8 Connecting the AC power cables
The AC power cables are used to connect the inverter to the
critical loads (through the EPS port), and the AC power
distributor or the power grid.
AC connection
Each inverter must have its own circuit breaker.
The AC disconnecting device must be easily accessible.
The inverter HYD 5/6/8/10/15/20KTL-3PH has a built-in
RCD (univ. sensitive residual current protection). If
an external RCD is required, we recommend an RCD type
A featuring a residual current of 100 mA or higher.
Please follow the national rules and regulations for
the installation of external relais or circuit
breakers!
