HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
4.9 Installation of the inverter
1. Hold the wall bracket in the desired place and mark the
four holes. Put the wall bracket aside and drill the holes.
2. Guide the spread screw M8*80 into the hole vertically and
ensure that its insertion depth is sufficient.
3. Align the wall bracket with the hole positions and fasten by
tightening the spread screw with the nuts.

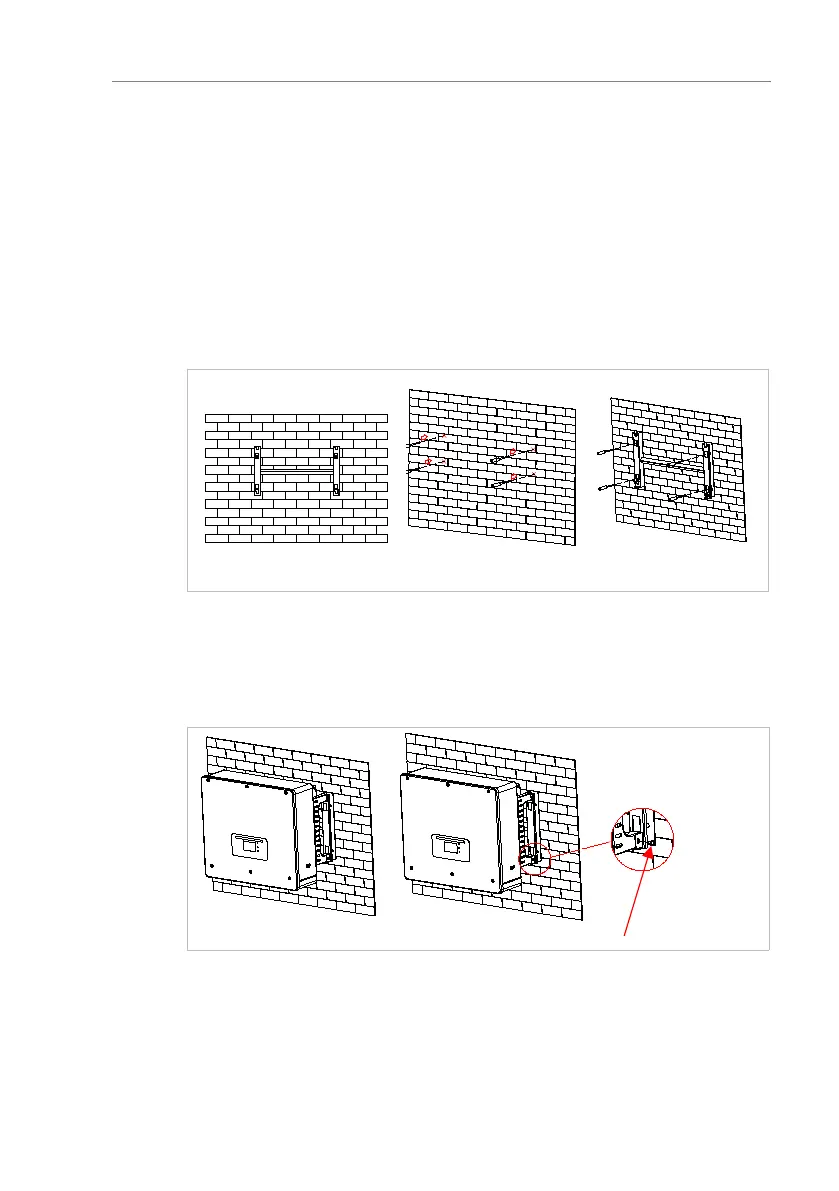

Figure. 4-6 Installing HYD 5/6/8/10/15/20KTL-3PH(a)
4. Place the inverter in the wall bracket and fasten it with the
M6 hexagon screw
5. You can secure the inverter to the wall bracket using a lock.
Figure. 4-7 Installing HYD 5/6/8/10/15/20KTL-3PH(b)
